Webstone H-81417WHV 2 Prs Lf Isolator W/ Drain Hv 2 feet'

Product Description

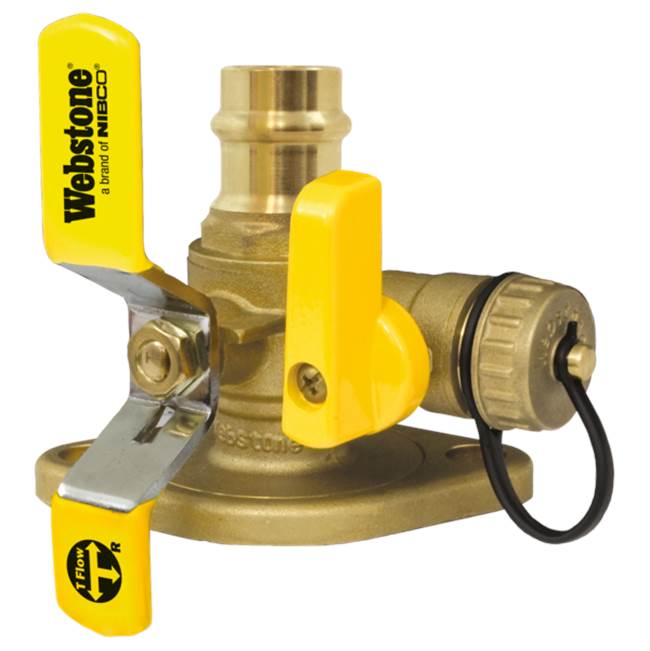

The WEBSTONE H-81417WHV Isolator is a forged brass component designed for isolating pumps, including standard and high velocity circulator pumps. It features a 2'' PressxRotating Flange connection, a pressure rating of 250 psi, and a temperature rating of 250 deg F. This isolator prevents electrolysis and galvanic corrosion, while its multi-function drain allows drainage from either side of the pump, simplifying maintenance and replacement.

• Easily isolates the pump for replacement
• Prevents electrolysis and eliminates galvanic corrosion
• Rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation

Product Highlights

Multi-function drain, rotating flange, and integral spring check simplify pump isolation and maintenance.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-81417WHV

Technical Specifications

• Collection: The Isolator
• Online Product ID: 5931159
• Low Lead Compliant: Yes
• Material: Forged Brass
• Prop65 Warning: Lead
• Connection Size: 2''
• Connection Type: PressxRotating Flange
• Application: Standard and High Velocity Circulator Pumps
• Includes: Detachable Rotating Flange, Multi Function Hi-Flow Hose Drain, Adjustable Packing Glands, Nuts and Bolts
• Pressure Rating: 250 psi
• Series: H-8141W
• Temperature Rating: 250 deg F
