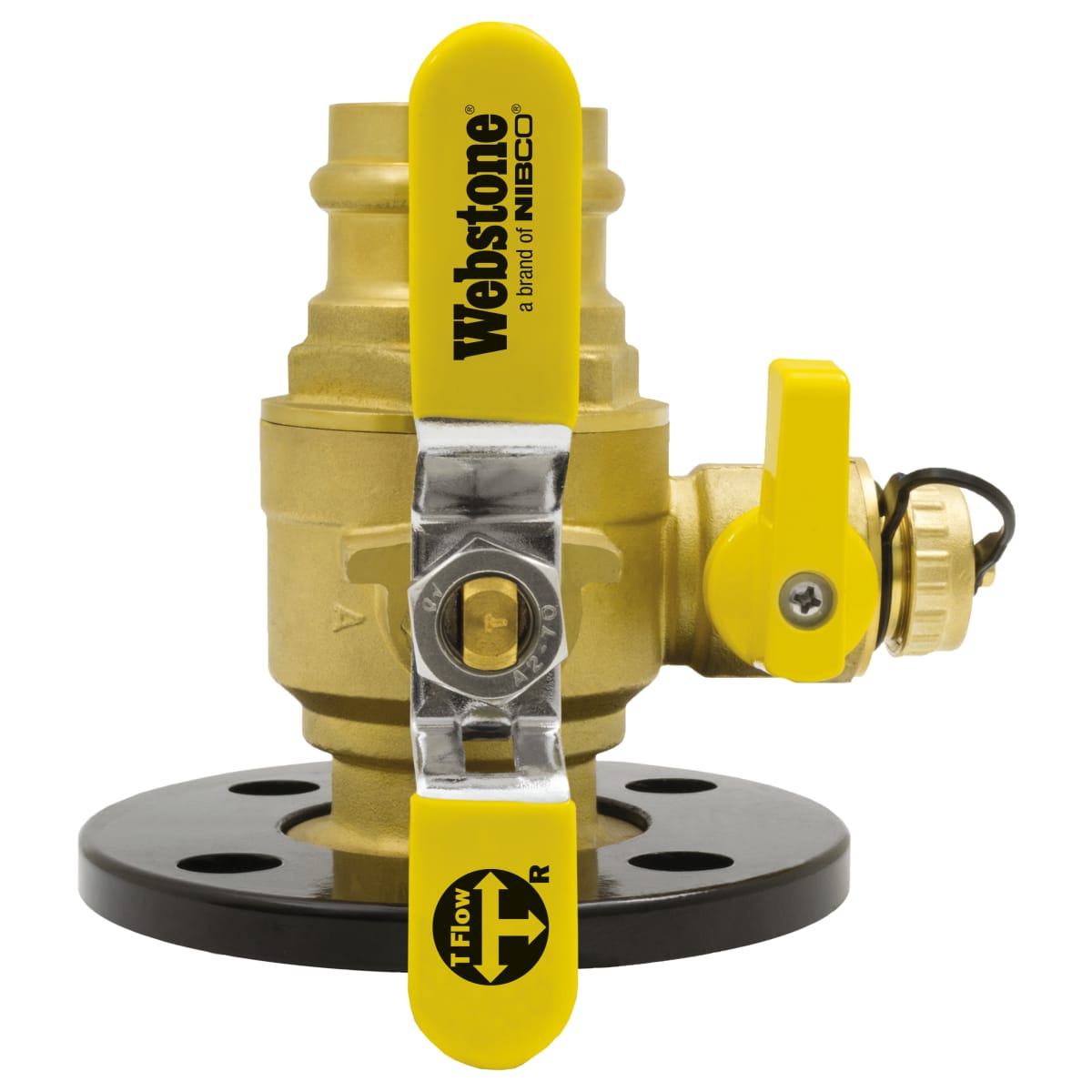

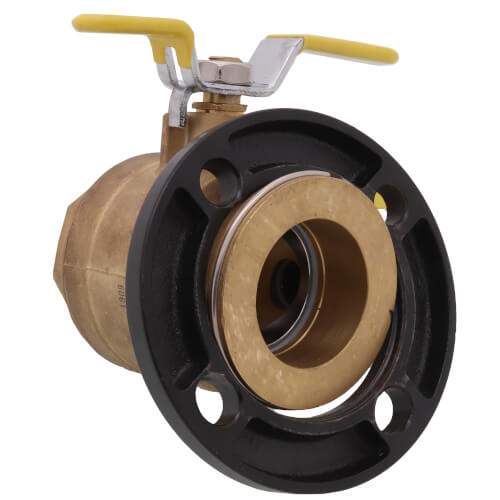

Webstone H-81417HV-RF400 2 Press Full Port Forged Brass Uni-Flange Isolator Flange w/ Detachable Rotating Flange & Multi-Function Drain

Product Description

The Webstone H-81417HV-RF400 is a uni-flange ball valve designed to isolate circulator pumps in plumbing and heating systems. This valve minimizes air entry during pump replacements or service. It features a forged brass body that combines multiple components, streamlining installation and maintenance tasks. The design supports water, oil, and glycol mixes in both residential and commercial settings.

• Easily isolates the pump for efficient replacement.
• Prevents electrolysis and eliminates galvanic corrosion.
• Rotating flange ensures controlled positioning during installation.

Product Highlights

The isolator provides high flow and innovative draining capabilities, making it suitable for high-efficiency variable speed pumps.

Product Information

Standard Information

• Brand: Webstone
• Part Number: H-81417HV-RF400

Technical Specifications

• Connection Size: 2 inches
• Connection Type: Press x Rotating Flange
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating Max: 250 F Max
• Material: Brass
• Application: Non-Potable
