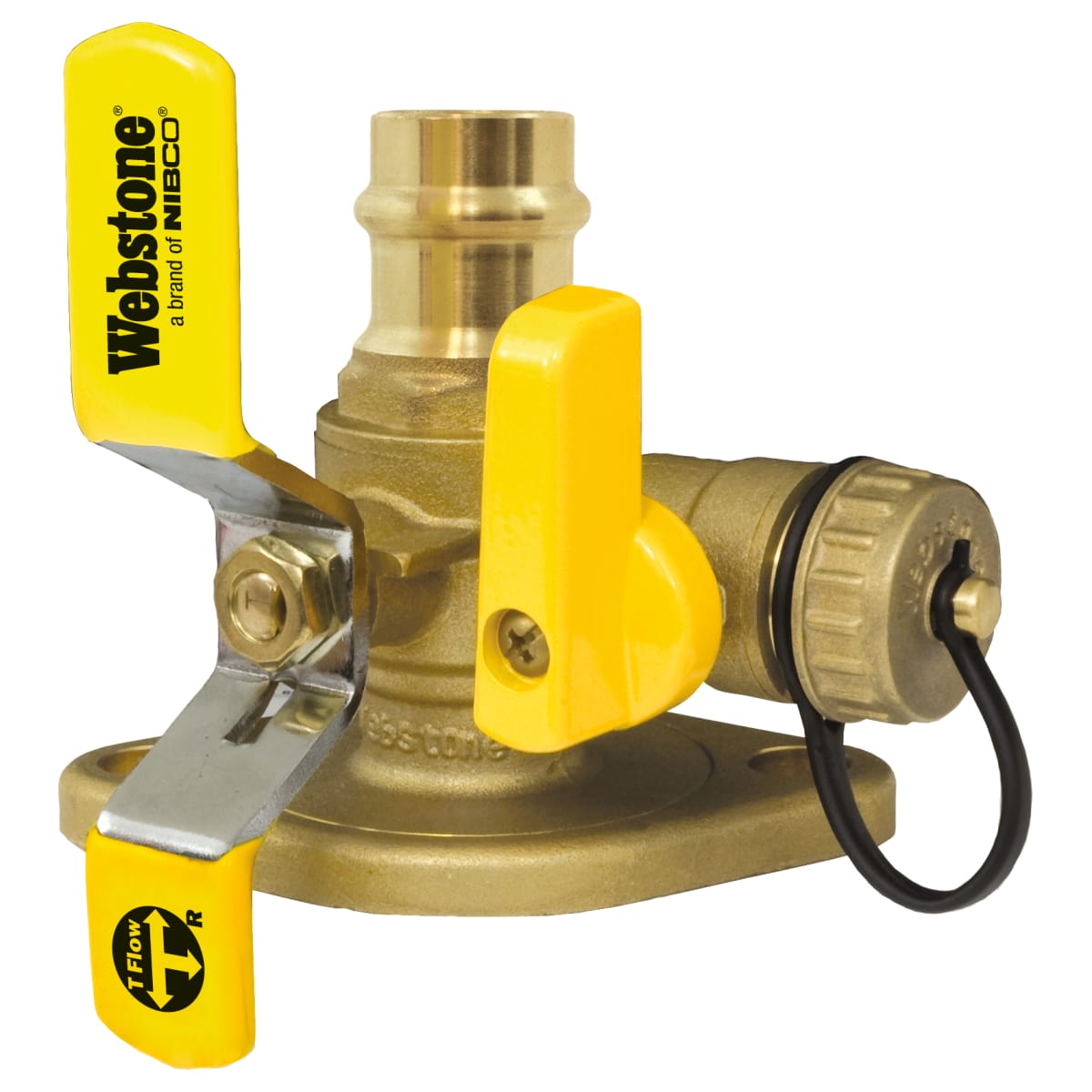

Webstone H-81415HV 1-1/4 Press x Rotating Flange Non-Potable Isolator Replacement H-81415HV

Product Description

The Webstone H-81415HV is a non-potable isolator designed to manage circulator pump isolation efficiently. This uni-flange ball valve minimizes air introduction during pump servicing. Constructed from a single forged brass body, it combines multiple components to streamline installation.

• Easily isolates the pump for service.
• Prevents electrolysis and eliminates galvanic corrosion.
• Rotating flange features a snug-fit snap-ring for secure positioning.

Product Highlights

This isolator valve is essential for residential and commercial heating systems, effectively handling water, oil, and glycol mixtures.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-81415HV

Technical Specifications

• Size: 1-1/4 inches
• Material: Brass
• Type: Isolator Rotating Flange with Drain
• Connection Size: 1-1/4 inches
• Connection Type: Press x Rotating Flange
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating Max: 250 F Max
• Application: Non-Potable
