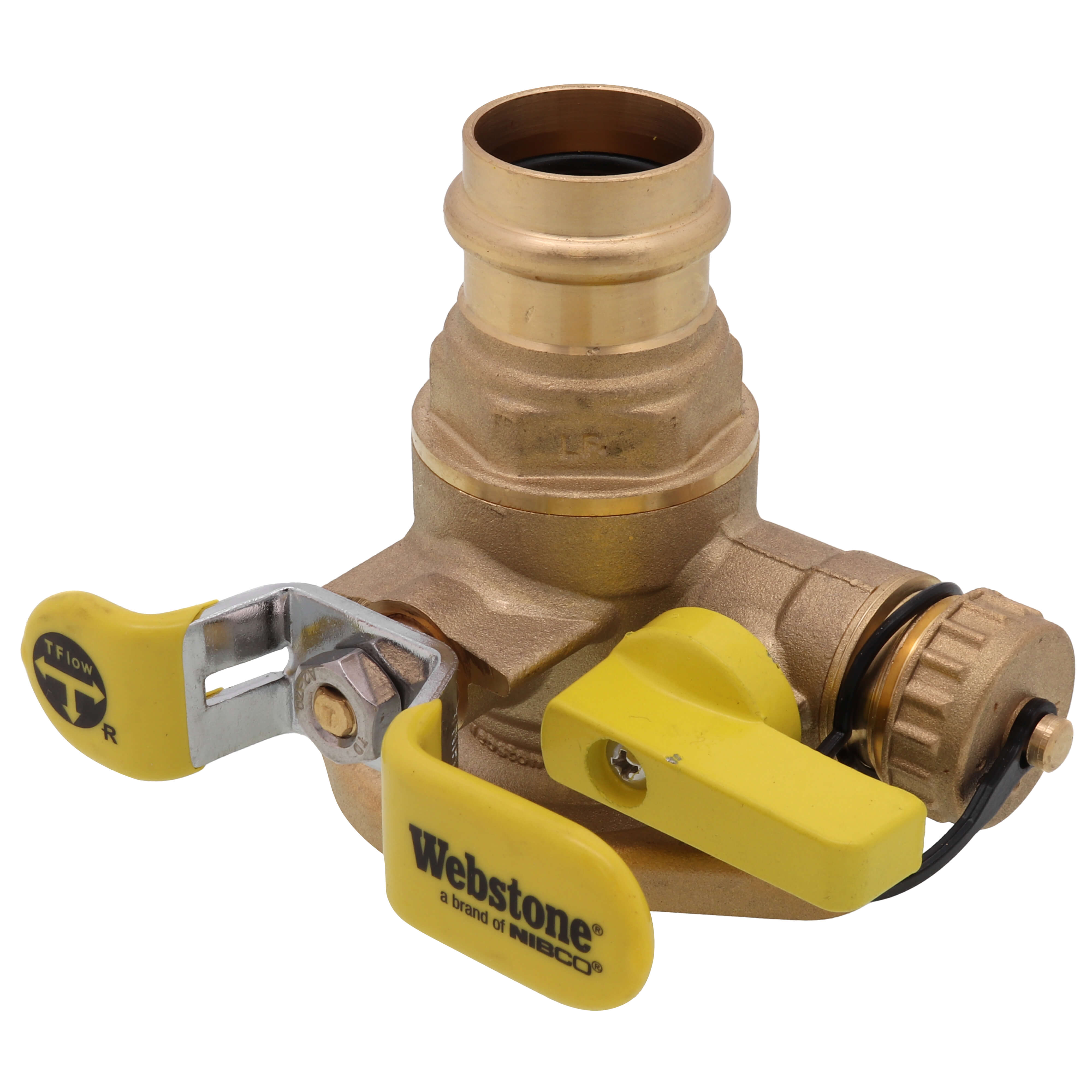

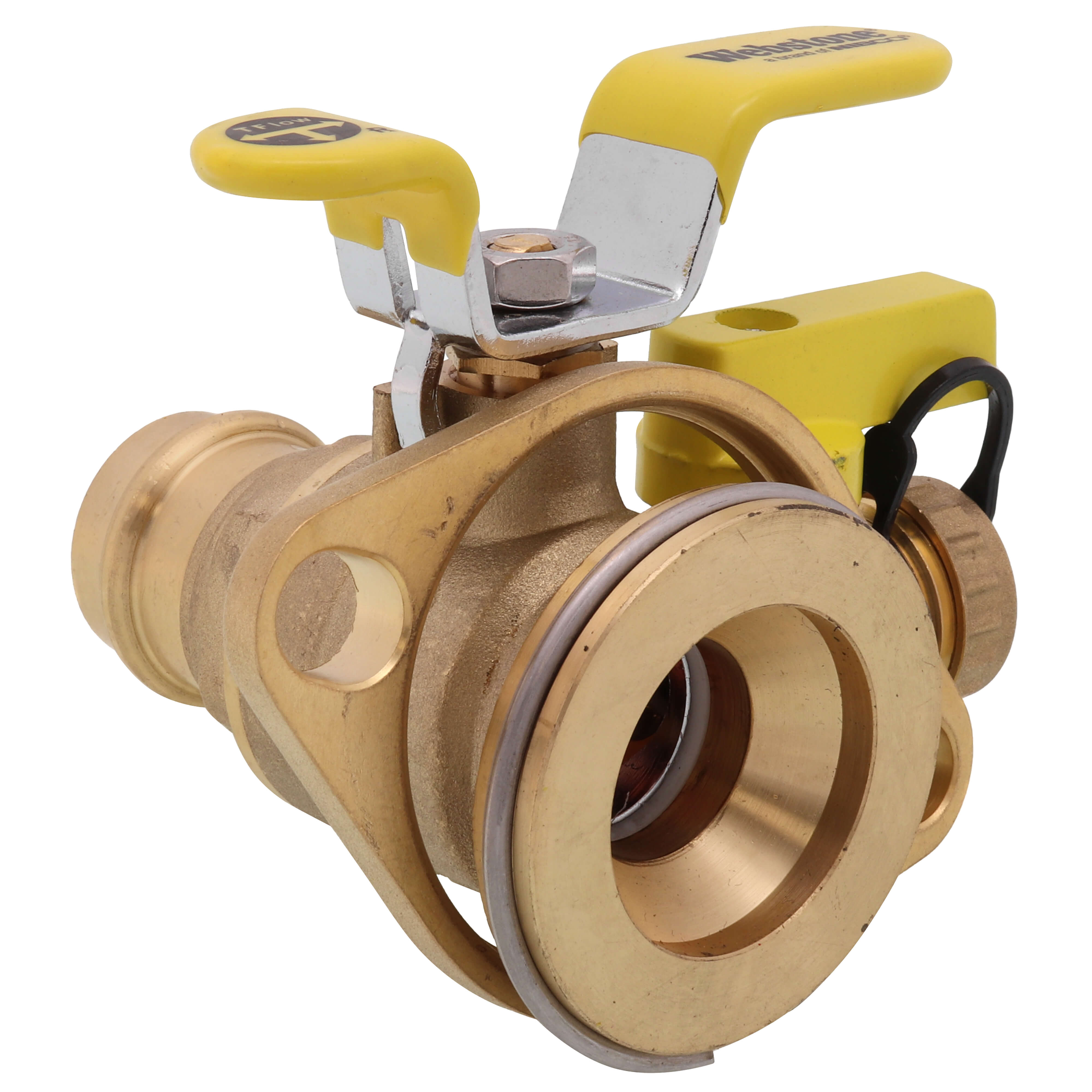

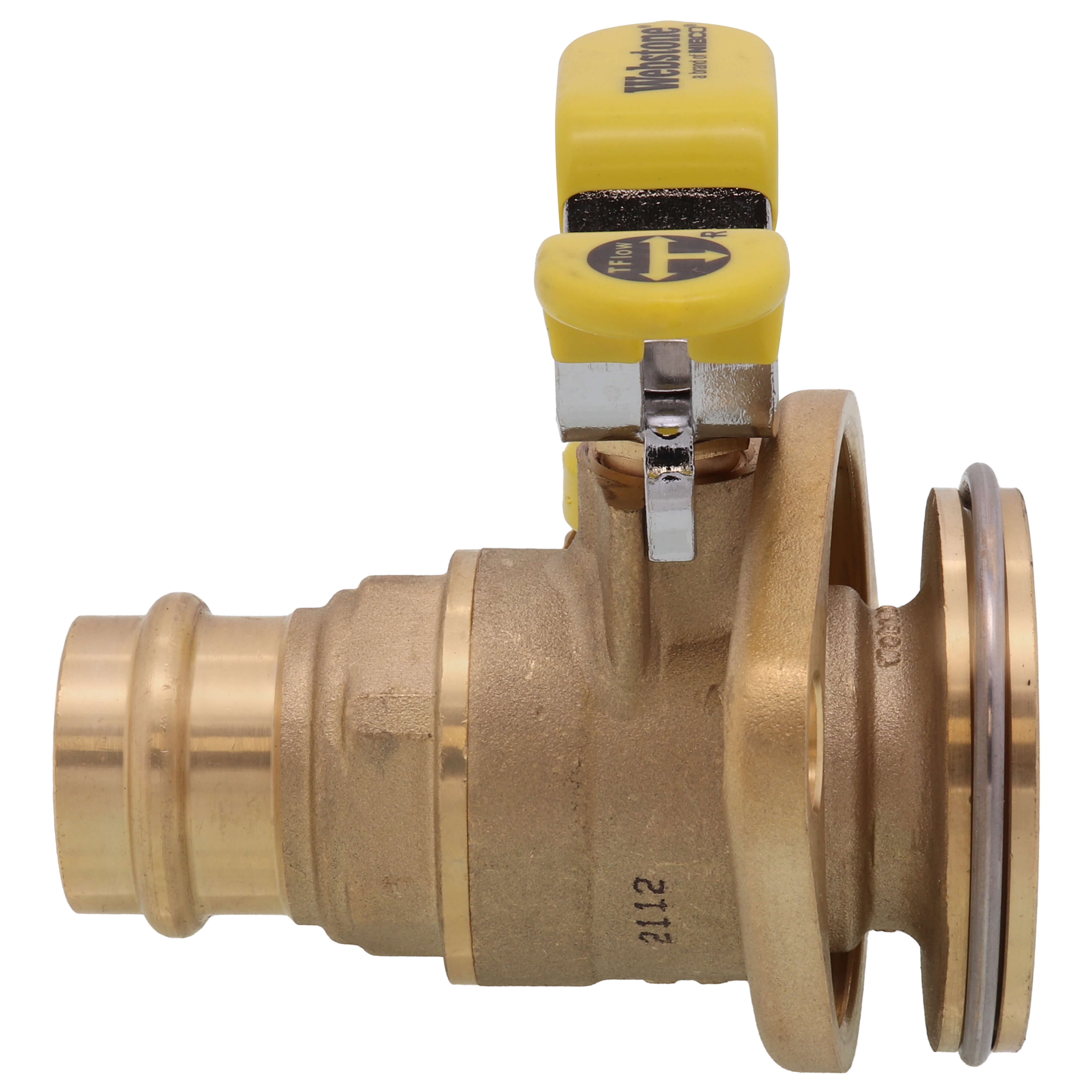

Webstone H-81414WHV 1 Press High Velocity Full Port Brass Uni-Flange Isolator Flange w/ Multi-Function Drain & Rotating Flange (LF)

Product Description

The Webstone H-81414WHV is a high velocity uni-flange isolator flange designed for use with circulator pumps. This lead-free isolator valve allows efficient pump isolation while minimizing air entry during replacements. Its innovative design integrates multiple features into a single forged brass body, which streamlines installation and maintenance processes.

• Easily isolates the pump for replacement
• Compatible with various fluids including water and glycol mixes
• Features a detachable rotating flange and multi-function drain

Product Highlights

This product is engineered to prevent electrolysis and galvanic corrosion while providing flexibility in installation.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-81414WHV

Technical Specifications

• Size: 1 inch
• Type: Isolator Rotating Flange With Drain
• Material: Brass
• Connection Size: 1 inch
• Connection Type: Press x Rotating Flange
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating Max: 250 F Max
