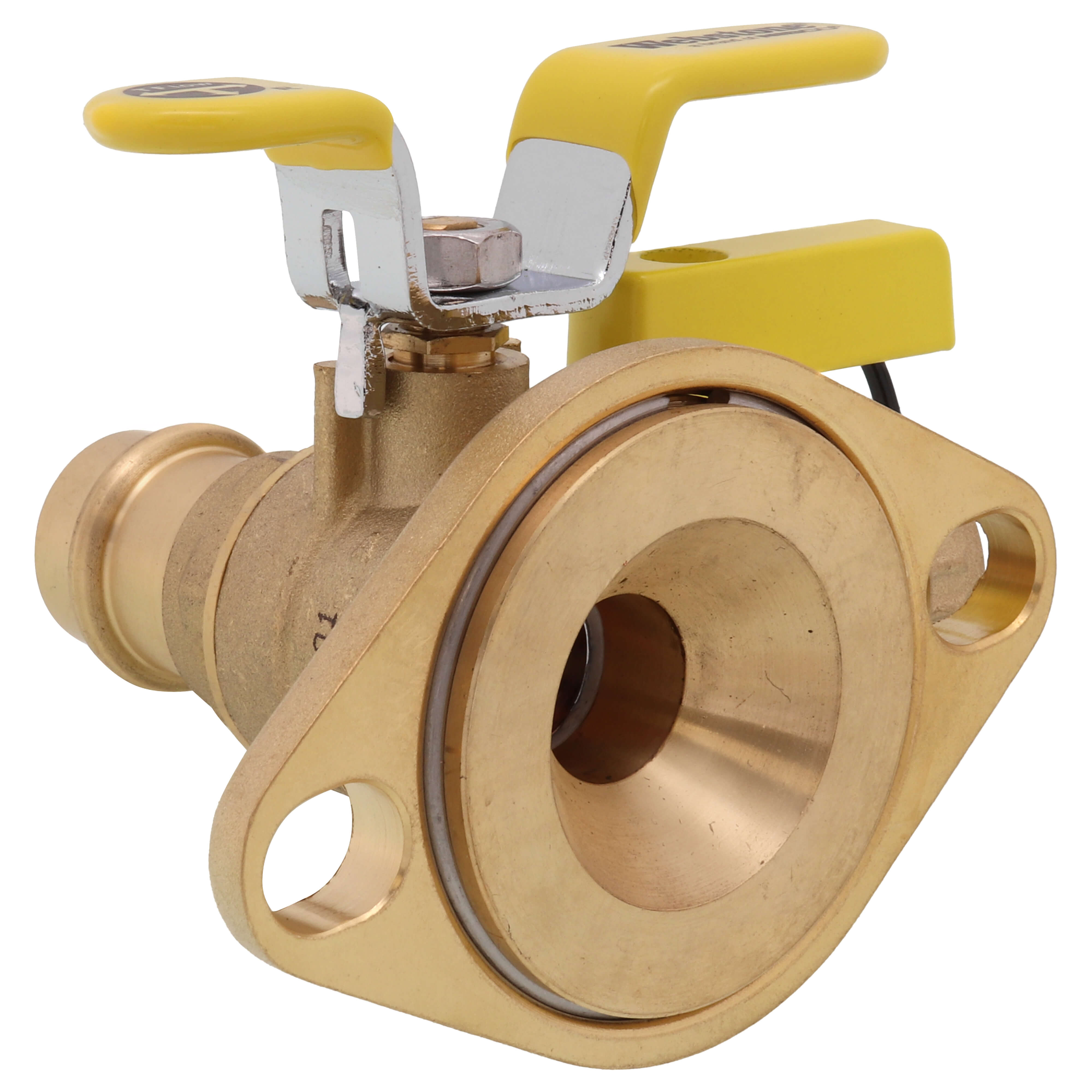

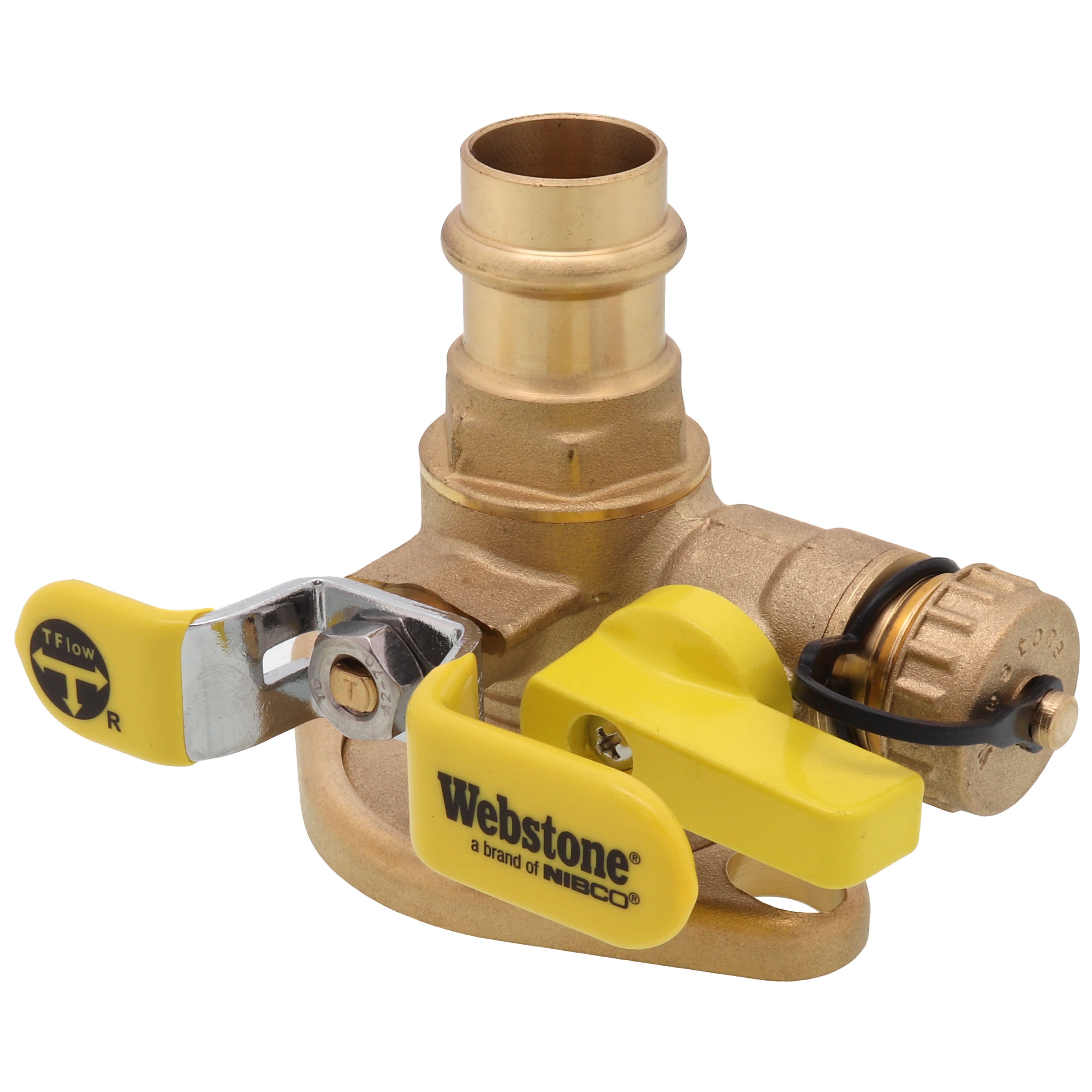

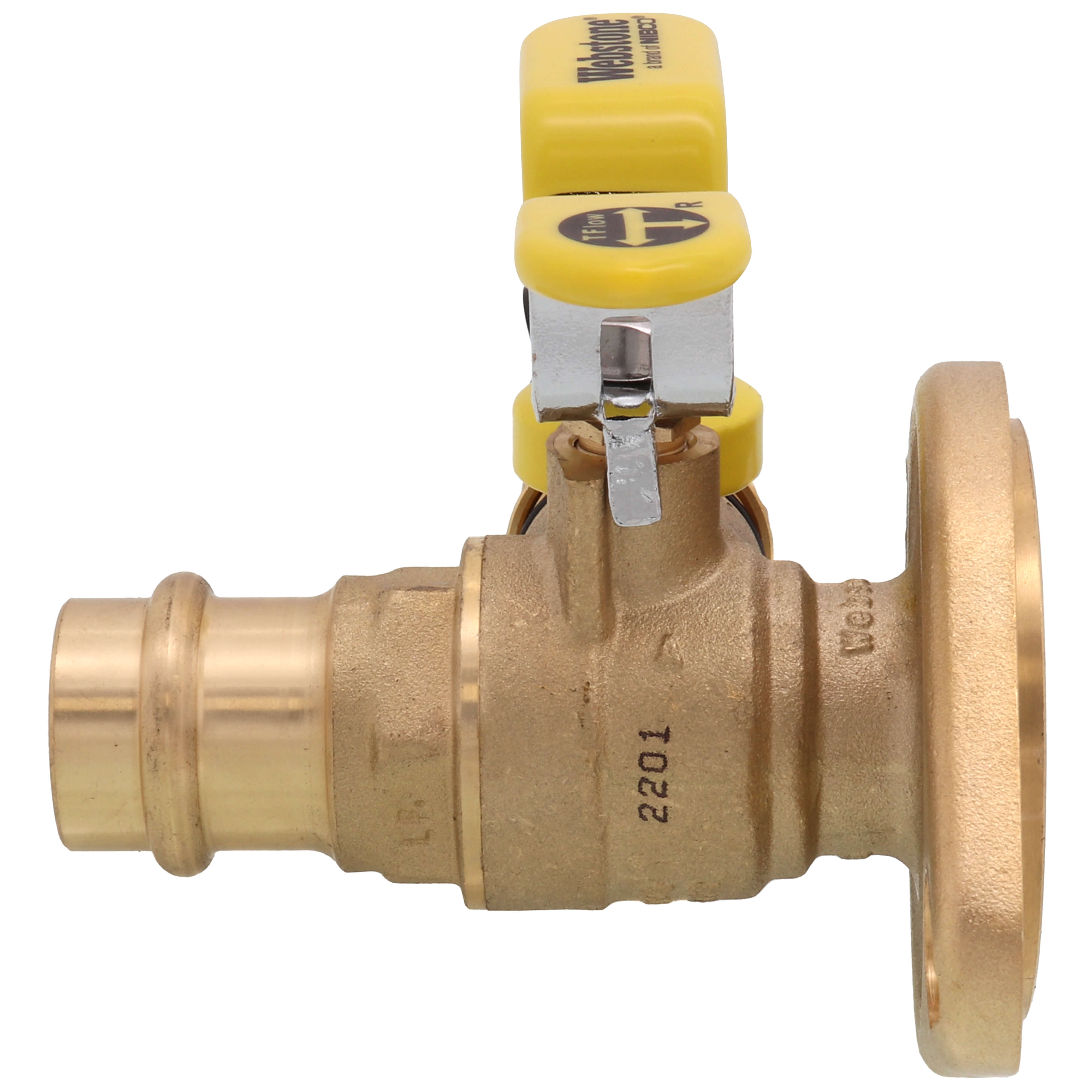

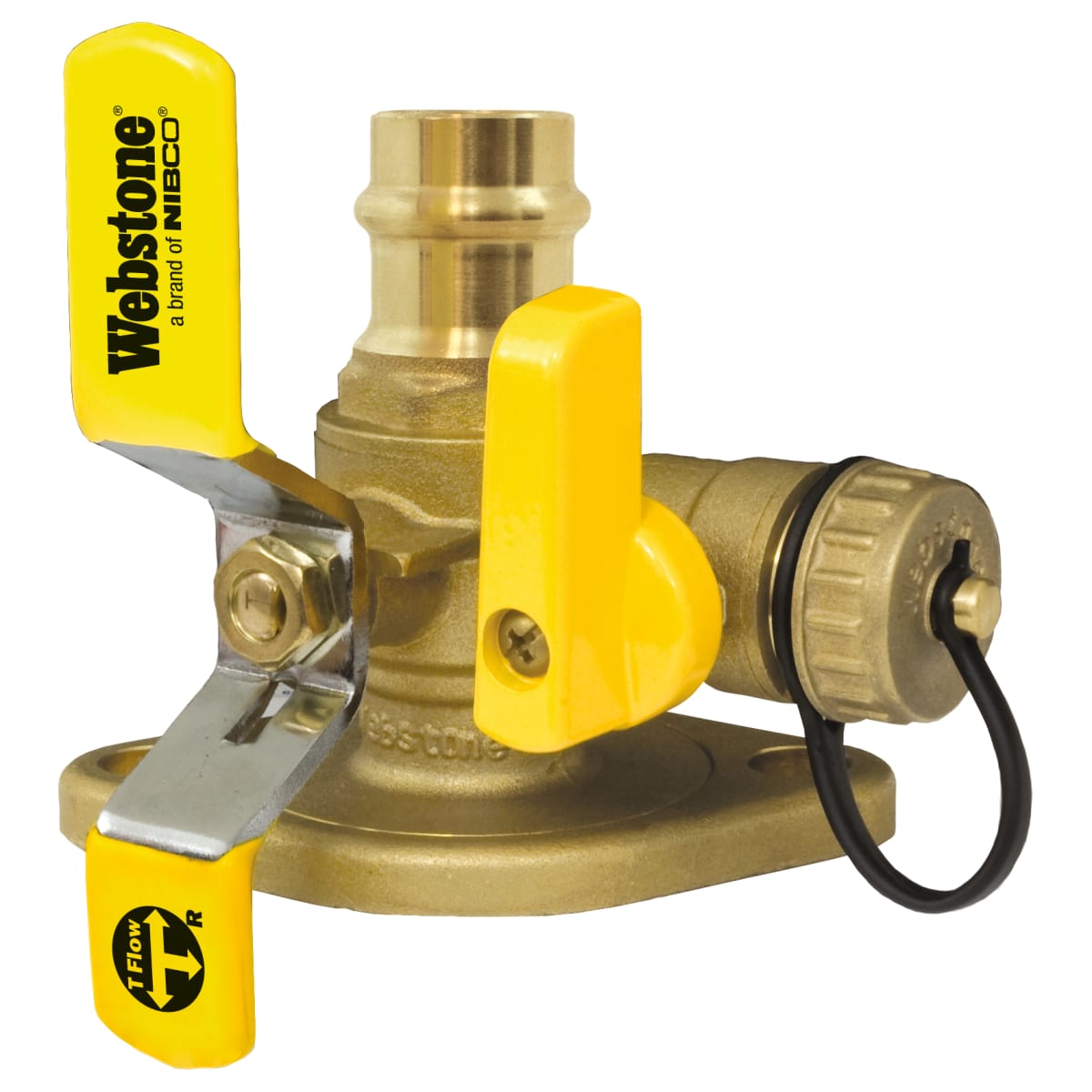

Webstone H-81413WHV 3/4 Press x Rotating Flange Lead-Free Isolator with Multi-Function Drain

Product Description

The Webstone H-81413WHV is a lead-free isolator designed for use with circulator pumps. This full port forged brass uni-flange ball valve isolates the pump to prevent air from entering the system during replacement or servicing. Its unique design consolidates multiple components into a single, robust unit, making installation more efficient.

• Easily isolates the pump for replacement.
• Secured rotating flange with a snap-ring for better positioning during installation.
• Multi-function drain allows for draining from either side of the pump.

Product Highlights

This valve features a high velocity design and is suitable for water, oil, and glycol mixtures. Constructed with brass, it meets industry standards for reliability and safety.

Product Information

Standard Information

• Brand: Webstone
• Part #: WEBS-H-81413WHV

Technical Specifications

• Connection Size: 3/4 inches
• Connection Type: Press x Rotating Flange
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating Max: 250 F Max
• Material: Brass
• Application: Lead-Free
