Webstone H-81413HVKIT Circulator Flange Kit ISO 3/4 Inch PRS

Product Description

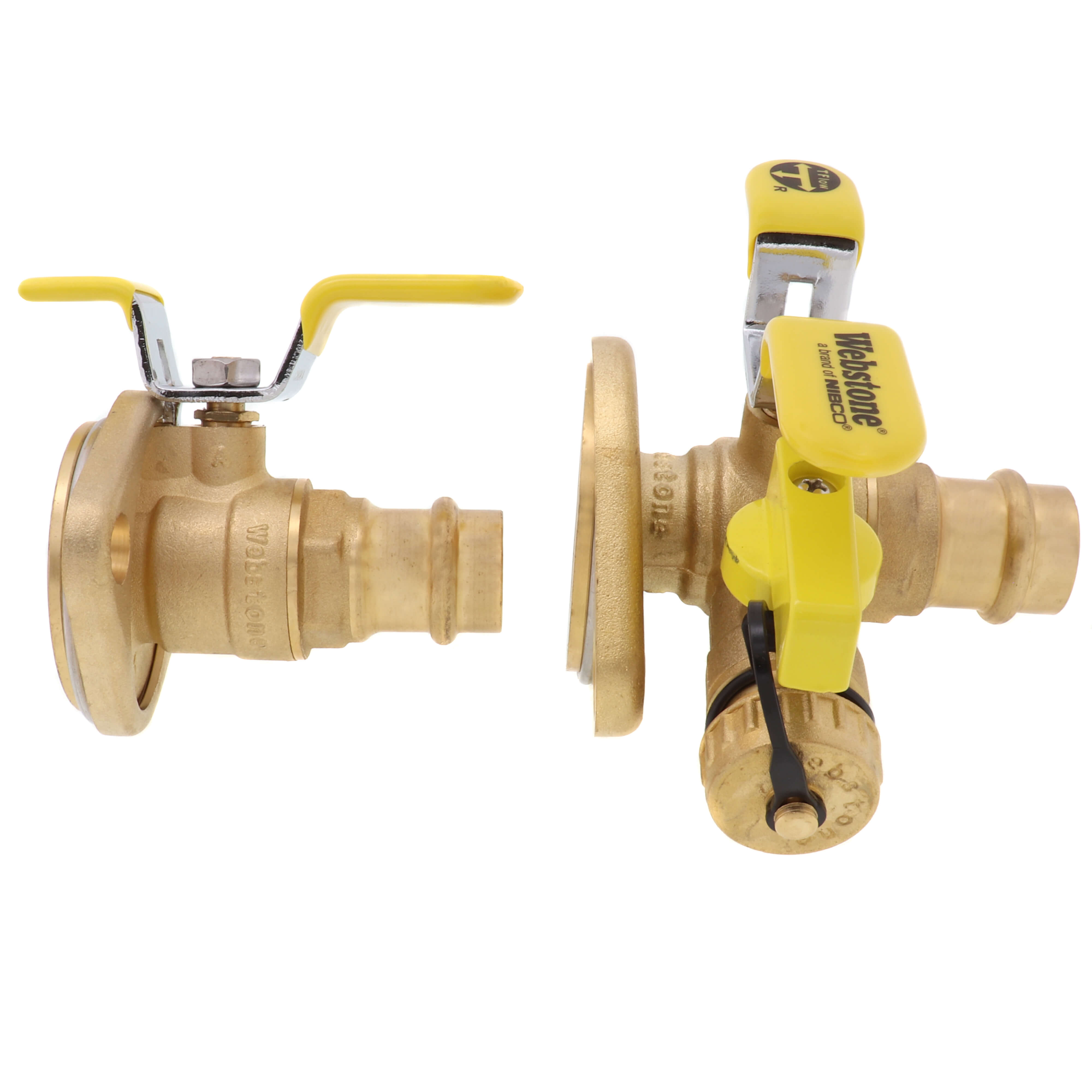

The WEBSTONE H-81413HVKIT circulator flange kit is a uni-flange ball valve that isolates a circulator pump, preventing air from entering the system during replacement or service. Its design integrates multiple components into a forged brass body, saving time and space. Designed for use with water, oil, and glycol in plumbing and heating systems.

• Easily isolates the pump for replacement.
• Prevents electrolysis and eliminates galvanic corrosion.
• Rotating flange secured by a snap-ring for greater control during installation.

Product Highlights

This kit fits standard and high velocity pumps and includes an isolator with drain, flange gaskets, nuts, and bolts.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-81413HVKIT
• Country of Origin: Import

Technical Specifications

• Brand: Webstone
• Size: 3/4"
• Type: Isolator Fixed Flange Kit
• Material: Brass
• Application: Non-Potable
• Connection Size: 3/4"
• Connection Type: Press x Rotating Flange
• Pressure Rating: 250 psi
• Temperature Rating Max: 250 F Max
• Lead Free: No
• Collection: The Isolator
• For Use With: Standard and High Velocity Circulator Pumps
• Includes: (1) Isolator and (1) Isolator with Drain, (2) Full-Faced Flange Gaskets, Bonus Wing Style T Handle, (2) Nuts and Bolts
• Series: H-x141KIT
• Nominal Pipe Size: 3/4" x 3/4"
• Potable Water Code: Not LL Comp not intend potable
• UPC Code: 018394012417
• Country of Origin: CN
• CA Proposition 65 Warning Statement: WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
