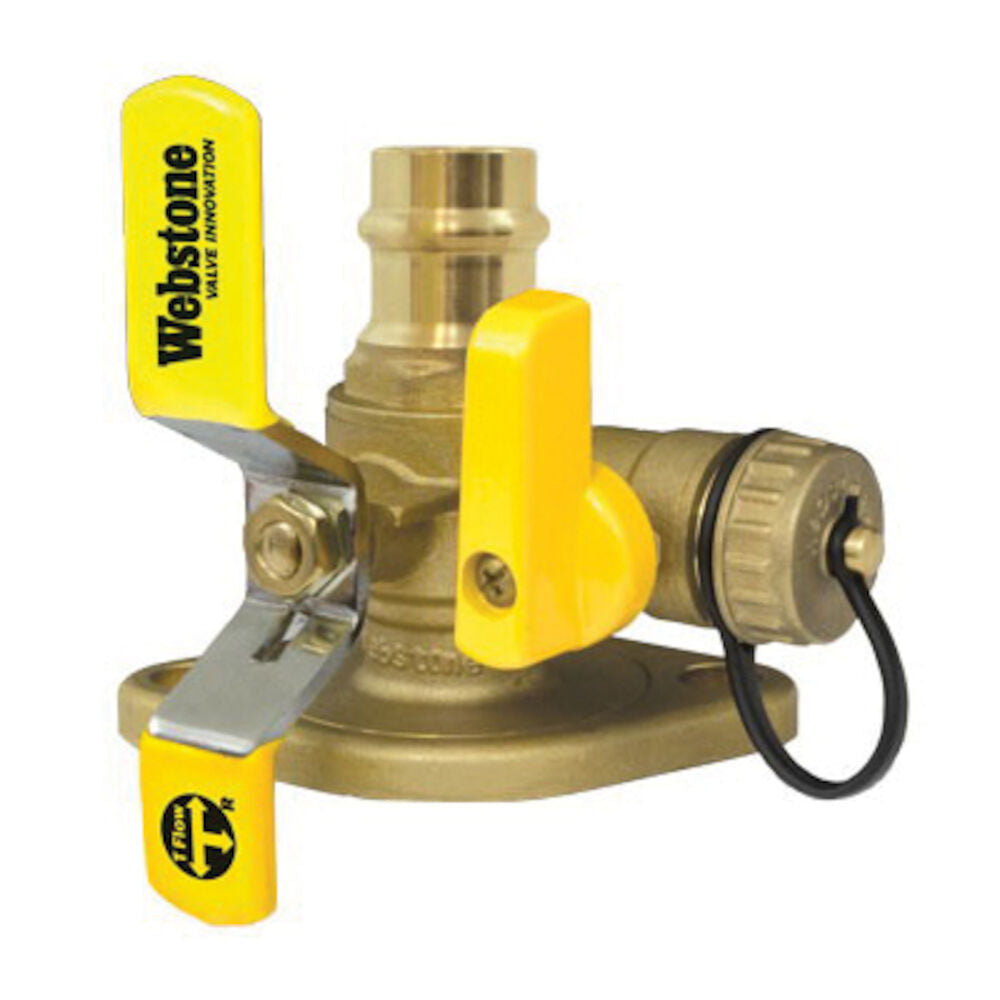

Webstone H-81413HV 3/4 Press x Rotating Flange Non-Potable Isolator w/ Rotating Flange & Multi-Function Drain

Product Description

The Webstone H-81413HV is a uni-flange ball valve designed to isolate a circulator pump. This feature minimizes air intake during pump replacement or servicing. The innovative design combines multiple components into a single forged brass body, increasing efficiency and saving space. This unit is suitable for residential and commercial plumbing and heating systems, handling water, oil, and glycol mixes. It is backed by a limited lifetime warranty.

• Easily isolates the pump for replacement.
• Prevents electrolysis and eliminates galvanic corrosion.
• Rotating flange allows controlled positioning during installation.

Product Highlights

The isolator simplifies pump replacement and sets a new standard in flanged valve technology, promoting easy installation and operation.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-81413HV

Technical Specifications

• Size: 3/4 inch
• Type: Isolator Rotating Flange With Drain
• Material: Brass
• Connection Size: 3/4 inch
• Connection Type: Press x Rotating Flange
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating Max: 250 F Max
• Application: Non-Potable
