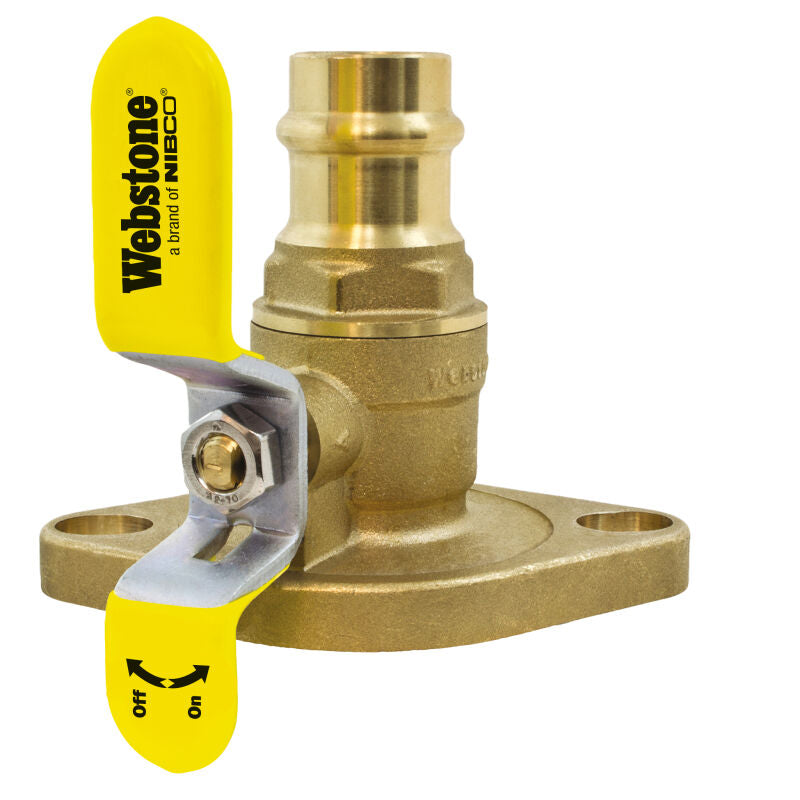

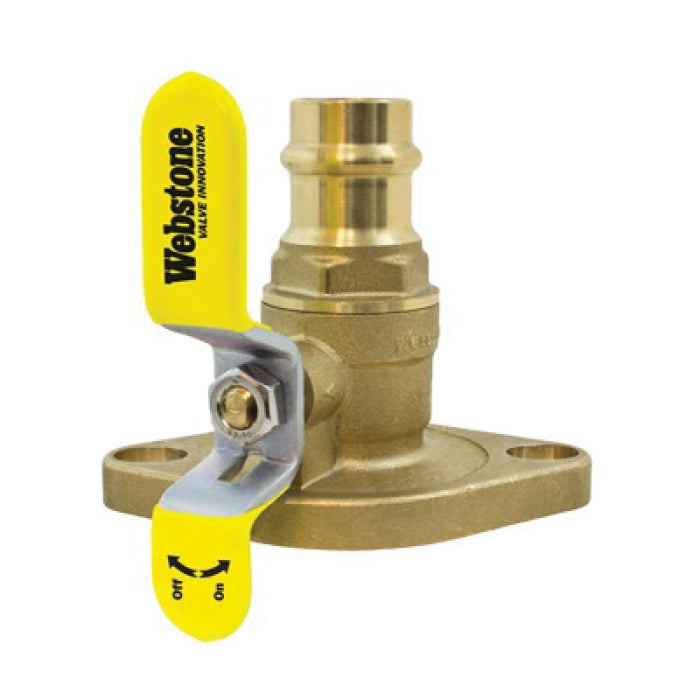

Webstone H-81405HV Isolator Valve 1-1/4 Press x Rotating Flanged

Product Description

The Webstone Isolator Valve H-81405HV is a 1-1/4 inch press x rotating flanged isolator valve. This product allows for easy isolation of circulator pumps to prevent air from entering the system during maintenance. The design features a forged brass body which combines multiple components into one, reducing installation time and saving space.

• Isolates pump for maintenance
• Constructed with a robust forged brass body
• Designed for water, oil, and glycol mixtures

Product Highlights

This isolator valve is designed for residential and commercial plumbing. It improves efficiency during pump replacement and maintains system integrity.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-81405HV

Technical Specifications

• Size: 1-1/4 inches
• Material: Brass
• Connection Type: Press x Rotating Flange
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating Max: 250 F Max
• Application: Non-Potable
• Media: Water
• Series: 8140
