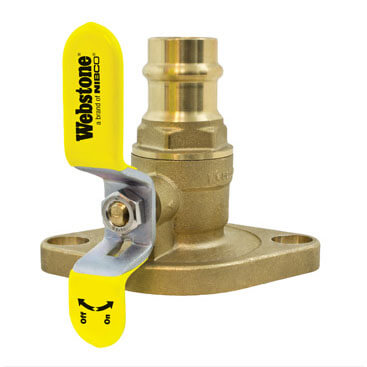

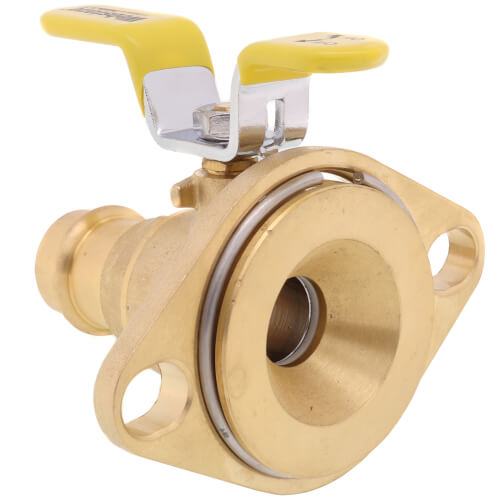

Webstone H-81404WHV 1 Press High Velocity Full Port Forged Brass Uni-Flange Isolator Flange w/ Rotating Flange Lead Free

Product Description

The Webstone H-81404WHV is a uni-flange ball valve designed to isolate a circulator pump, minimizing air intake during pump servicing. This innovative valve features a full port forged brass design, which consolidates multiple components into a single unit, thus enhancing efficiency and reducing installation time. It is suitable for both residential and commercial applications involving water, oil, and glycol mixtures. The product is built with patented technology, ensuring reliability and compatibility with standard circulator pumps.

• Isolates Pump for Easy Replacement
• Prevents Electolysis and Galvanic Corrosion
• Rotating Flange for Adjustable Installation

Product Highlights

This isolator valve aids in quick pump replacements, effectively preventing leaks by minimizing connections. The detachable rotating flange allows for precise alignment and installation, while the integrated spring check valve helps to save labor and space.

Product Information

Standard Information

• Brand: Webstone
• Part Number: H-81404WHV

Technical Specifications

• Connection Type: Press x Rotating Flange
• Connection Size: 1 inch
• Material: Brass
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating Max: 250 F Max
• Application: Lead-Free
• Type: Isolator Rotating Flange No Drain
