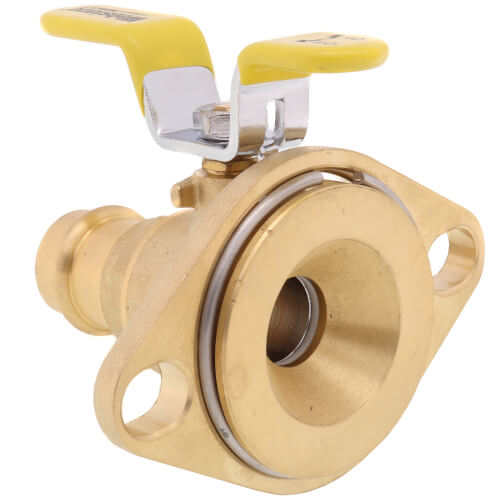

Webstone H-81403WHV 3/4 Press High Velocity Full Port Forged Brass Uni-Flange Isolator Flange w/ Rotating Flange Lead-Free

Brand: WEBSTONE
SKU: H-81403WHV
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$113.39
$113.39
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Webstone H-81403WHV is a 3/4 inch press high velocity uni-flange isolator flange. This product allows for effective isolation of circulator pumps, making maintenance simpler. Its innovative design combines multiple components into one forged brass body, ensuring durability and efficiency. It is essential for use with water, oil, or glycol mixes in both residential and commercial heating systems. The product is designed to minimize the introduction of air during pump service.

  • Isolates the pump for easy replacement.
  • Prevents electrolysis and galvanic corrosion.
  • Rotating flange secured with a snap-ring for better positioning control during installation.

Product Highlights

This isolator valve saves time and reduces leak paths, creating a professional advantage in plumbing installations.

Product Information

Standard Information

  • Material: Brass
  • Connection Size: 3/4 inch

Technical Specifications

  • Type: Isolator Rotating Flange No Drain
  • Pressure Rating: 250 PSI CWP Max
  • Temperature Rating Max: 250 F Max
  • Application: Lead-Free
  • Connection Type: Press x Rotating Flange
