Product Description

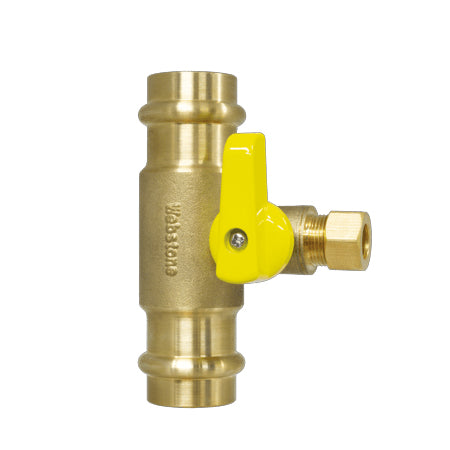

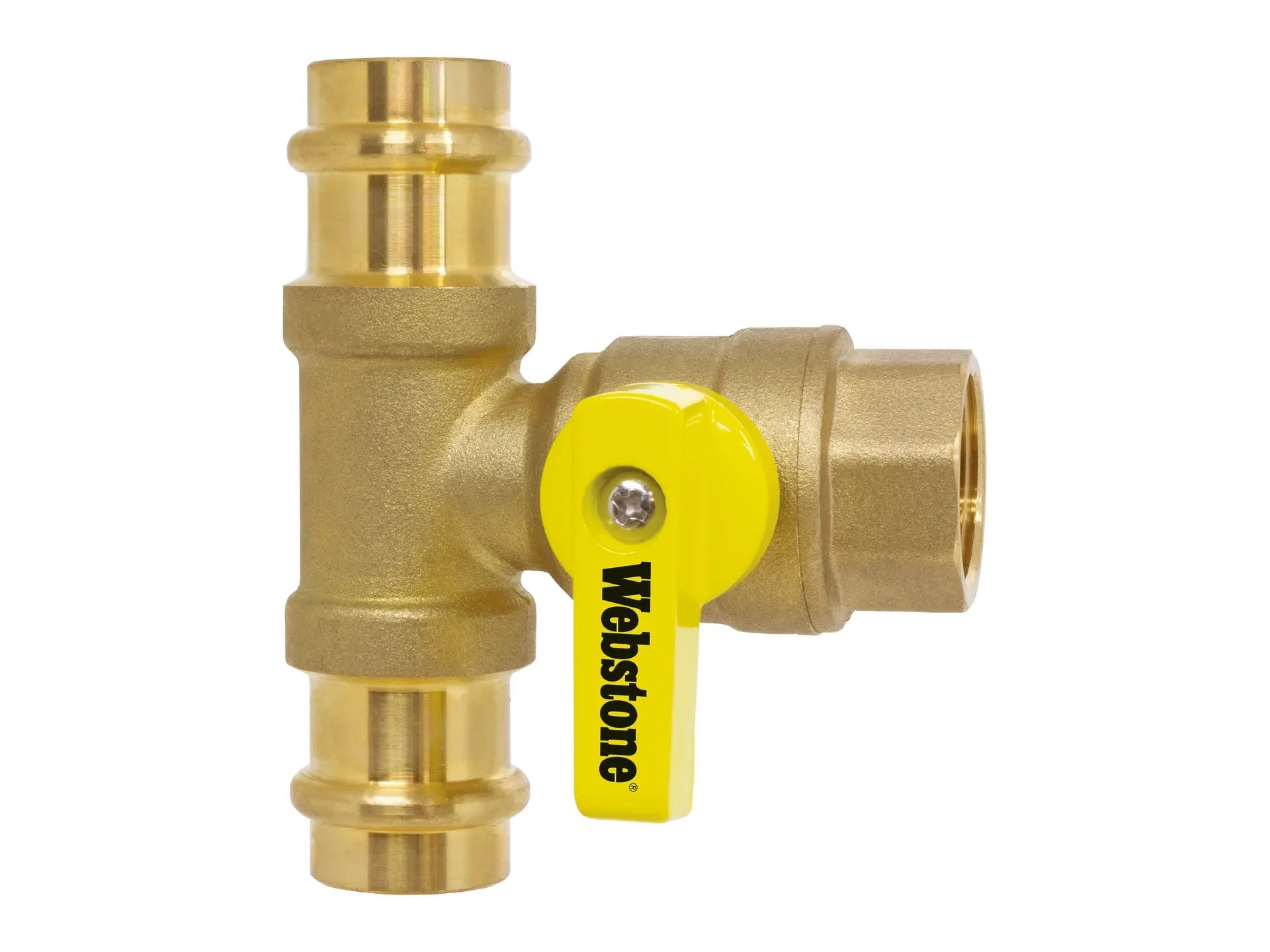

The Webstone H-80671W-T34 Pro-Pal T Ball Valve, part of the H-X267 Series, is a full port forged DZR brass ball valve with an integrated tee fitting, adjustable packing gland, and reversible handle. Ideal for branch connections and shut-offs in tight locations, this valve replaces three components and is actuated by a blowout proof stem.
- Ideal for Branch Connections and Shut-offs in Tight Locations
- Replaces 3 Components
- Ball valve with integral spring check saves labor, space, and leak paths
Product Highlights
This Webstone ball valve saves labor, space, and leak paths. It is designed for use with gas or water and features a reversible handle actuator.
Product Information
Standard Information
-
Brand: WEBSTONE
-
Manufacturer Part Number: H-80671W-T34
Technical Specifications
-
Body Material: DZR Brass
-
End Style: PRESS
-
Nominal Size: 3/8 x 3/4 in
-
Port Type: Full
-
Actuator Type: Reversible Handle
-
Ball Material: HCP Brass
-
Media: Gas / Water
-
Pressure Rating: 125 psi
-
Series: H-X267
-
Temperature Rating: 150 deg F
-
Trim Material: PTFE
-
End Connection: Press X Compression
-
Material: LF DZR Brass
-
Valve Size: 3/8"
-
Nominal Pipe Size: 3/8" OD x 3/4"
-
Potable Water Code: LL Compliant NSF/ANSI 372
-
Application: Lead-Free;Non-Potable
-
System Use: Residential Plumbing, Heating, Commercial Plumbing
-
Type of Valve: Ball Valve - Comibination
-
Valve End Connection Type: Compression Valve x Press Run
-
Length: 2.6"
-
Width: 3.64"
-
Height: 1.67"
