Webstone H-80617W 2 Press Lead-Free Pro-Pal Ball Drain

Product Description

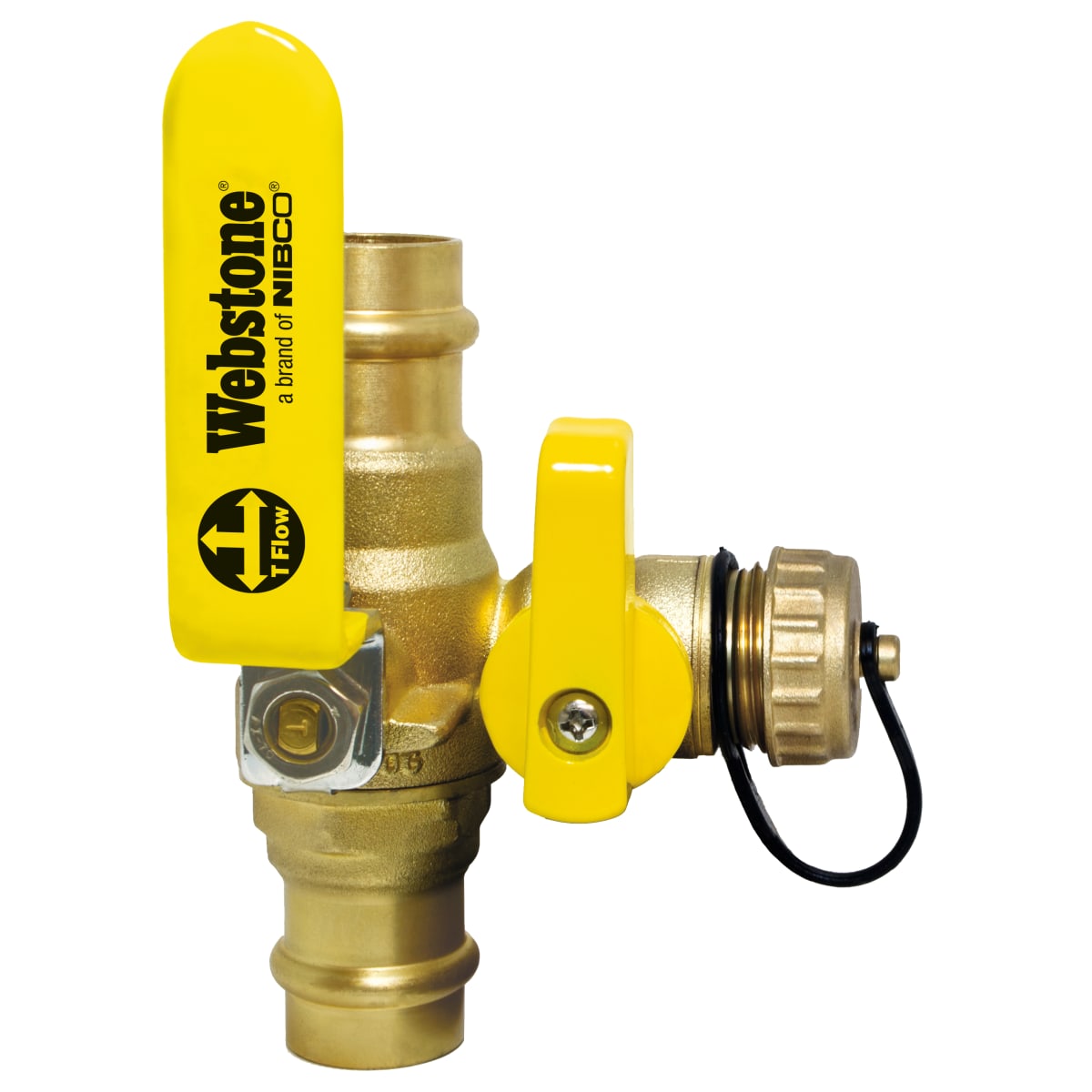

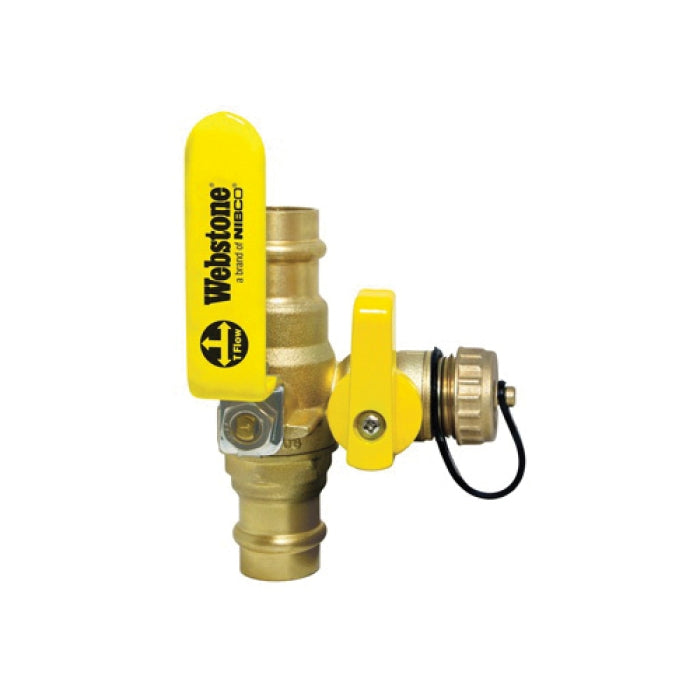

The Webstone H-80617W is a lead-free ball valve designed for efficient installation and operation in plumbing and heating systems. This valve features a full port forged brass body that allows for high flow rates. Its innovative design reduces the need for multiple components, saving installation time and space.

• Eliminates assembly needed to isolate and drain any portion of a piped system.
• Reversible handle enhances versatility during operation.
• Pressure rating of up to 250 PSI, suited for various applications.

Product Highlights

Compatible with water, oil, and glycol mixtures in residential and commercial applications. This valve is ideal for use in a wide range of plumbing and heating systems.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-80617W

Technical Specifications

• Material: Brass
• Connection Size: 2 inches
• Connection Type: Press x Press
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating Max: 250 degrees Fahrenheit
• Flow Path: Adjustable for draining from either side
• Inlet to Outlet Length: 7 inches
• Trim Material: Brass Stem and PTFE Seat
