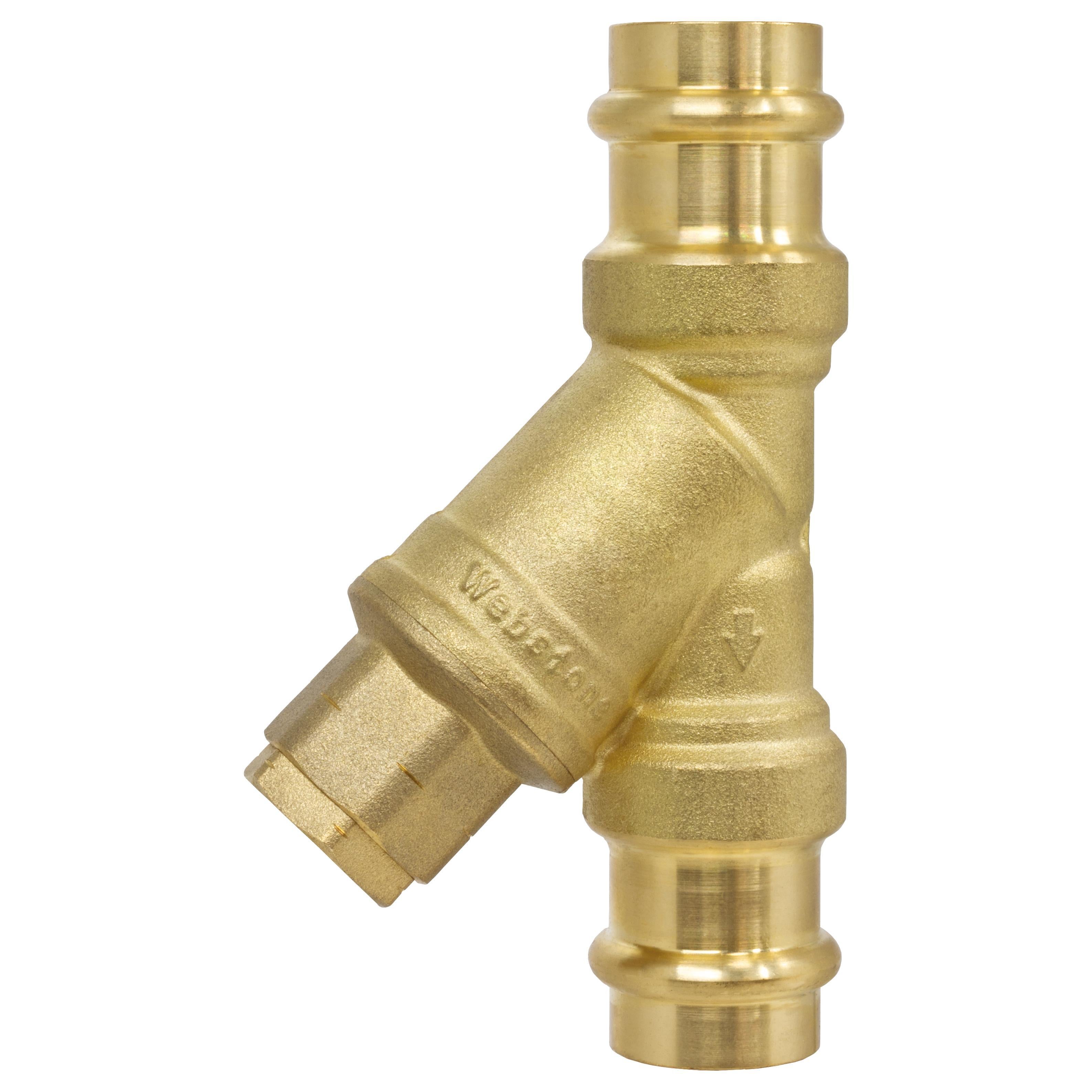

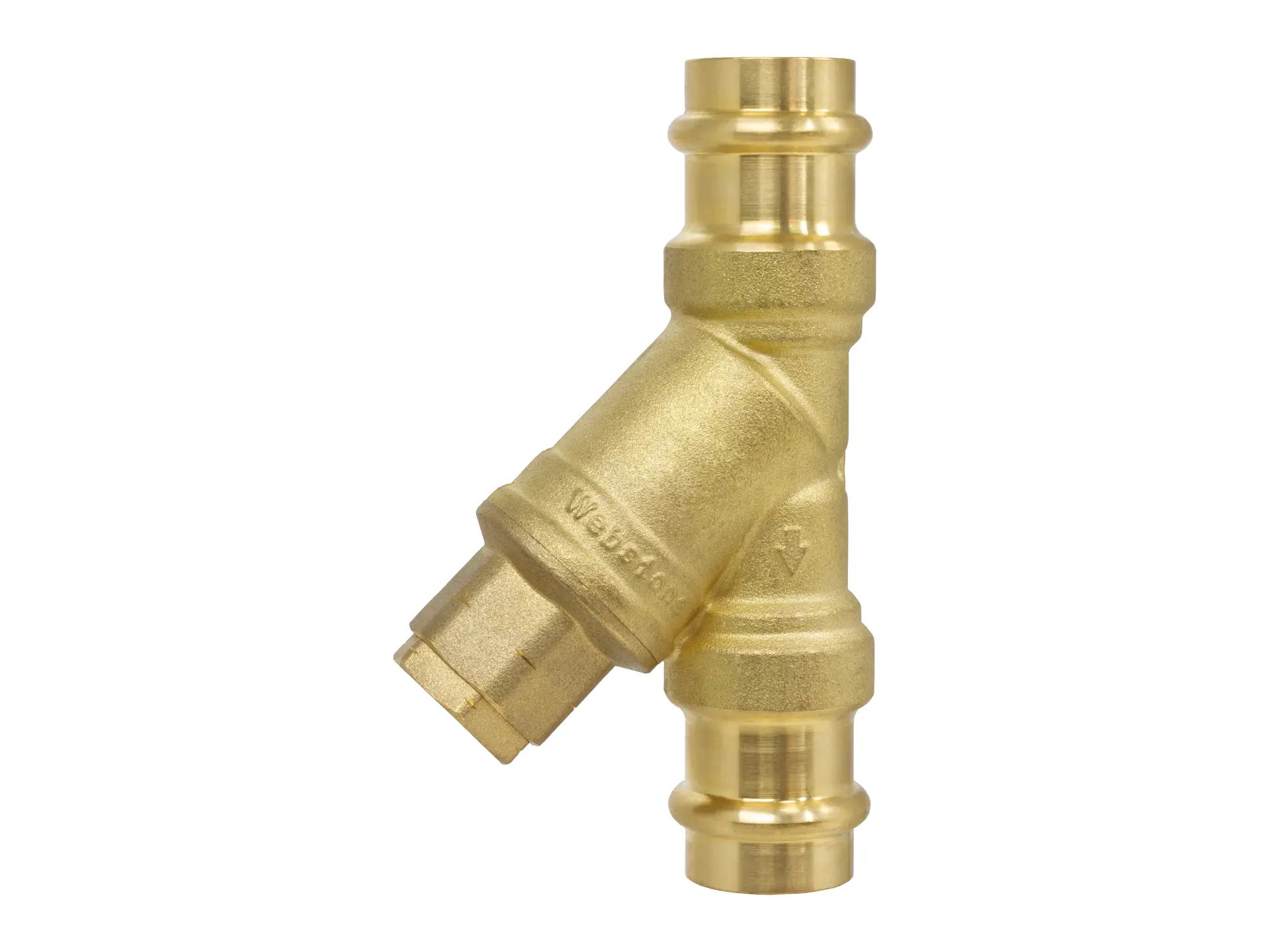

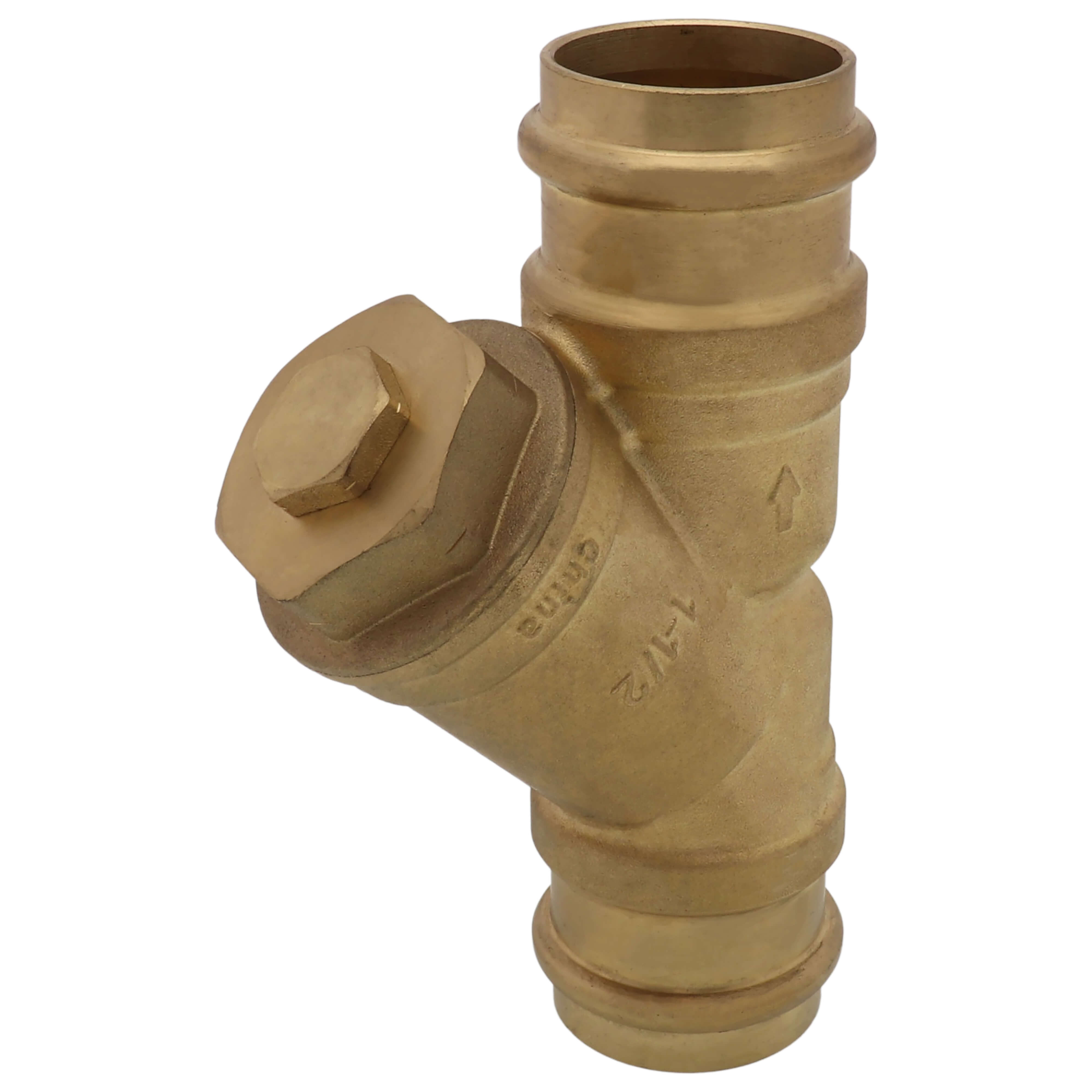

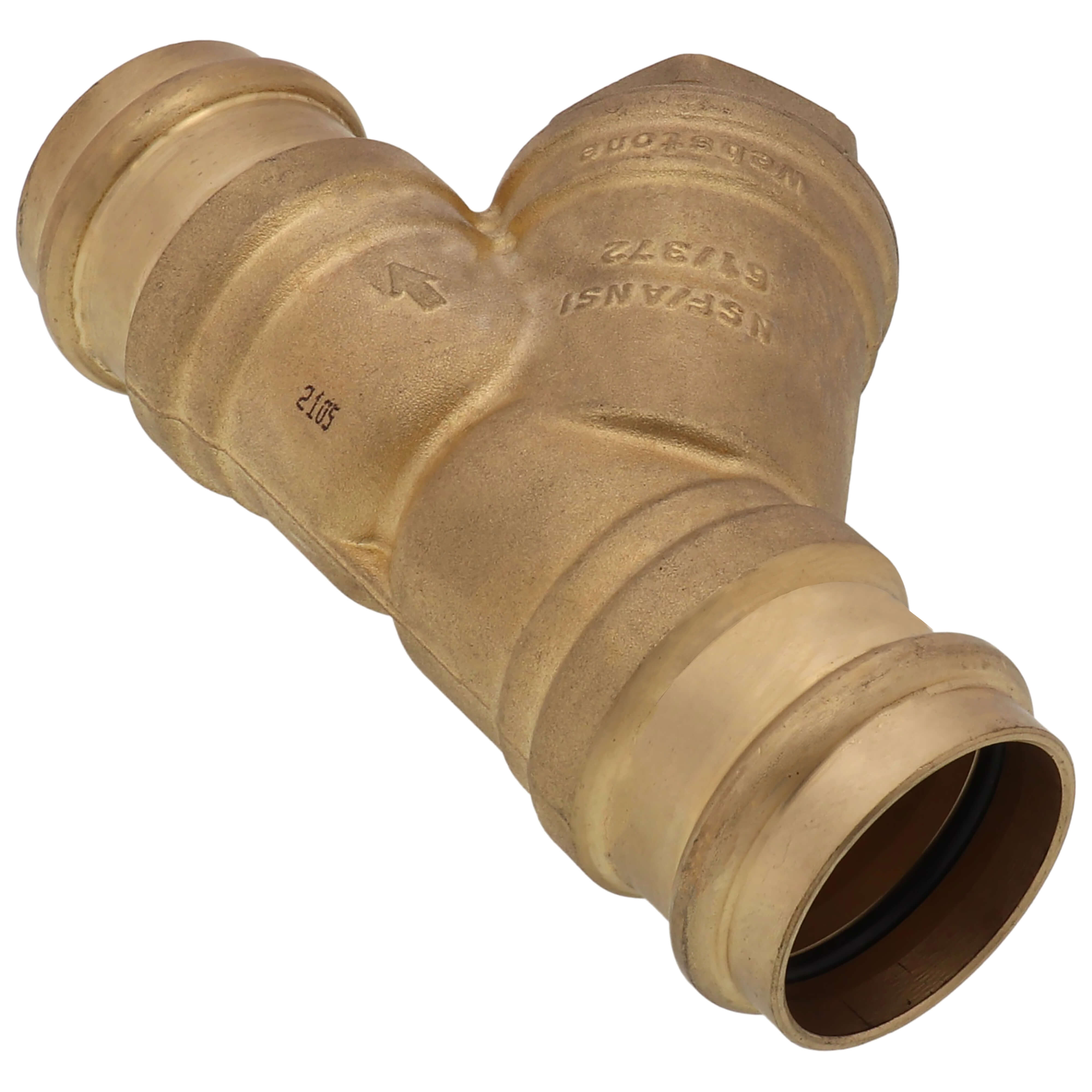

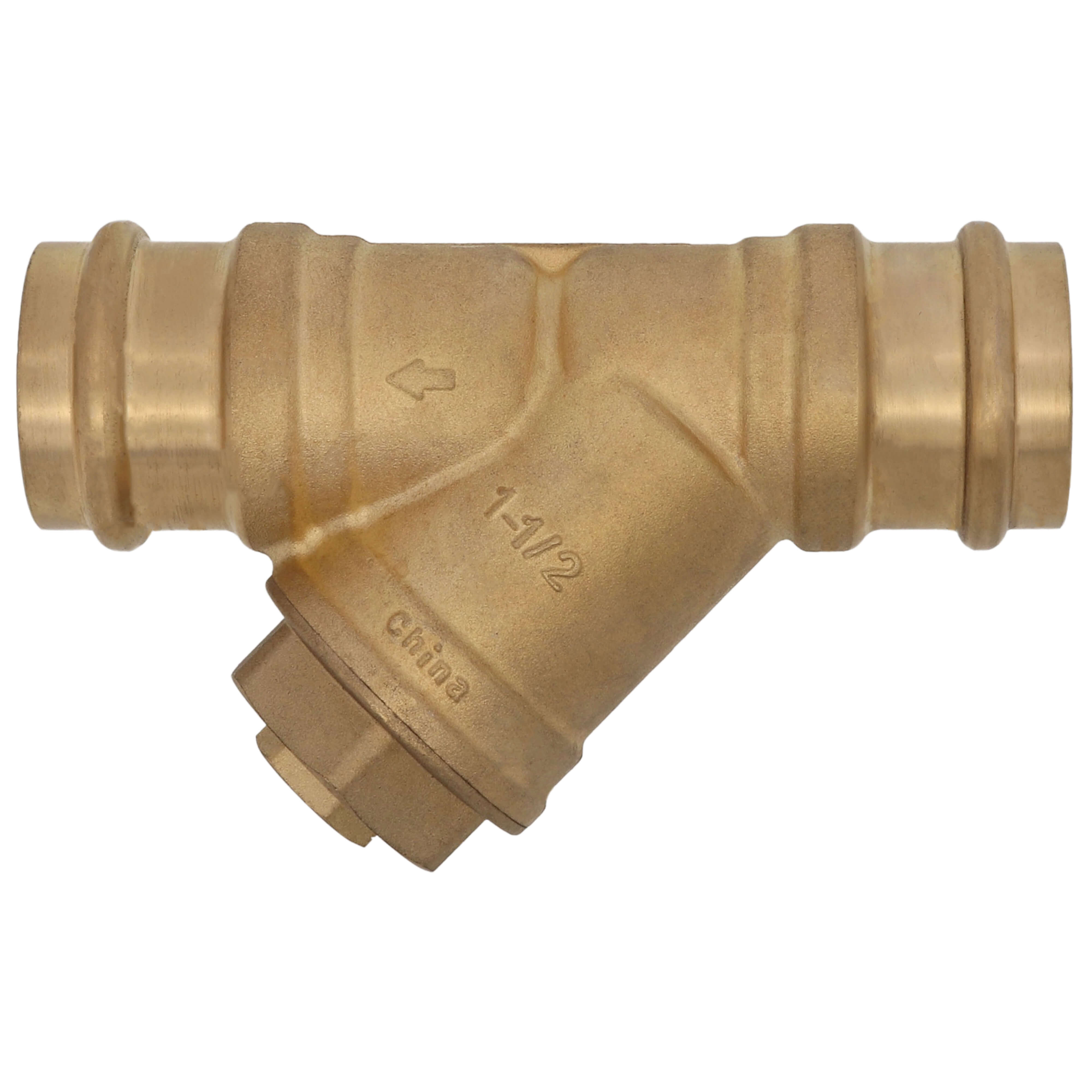

Webstone H-80566W 1-1/2 inches press forged DZR brass Y-strainer (20 mesh) with 1/2 inches plugged NPT port

Product Description

The WEBSTONE H-80566W is a 1-1/2" Press Forged DZR Brass Y-Strainer with a 20 mesh screen and a 1/2" plugged NPT port. This lead-free strainer is certified to NSF/ANSI 61 & 372, ensuring compliance for potable water applications. It is designed to protect plumbing and heating systems from damaging debris by collecting loose particles from the system flow. Suitable for residential or commercial use with water, oil, or glycol mix, it operates up to 200°F and 250 PSI (CWP).

• Certified to NSF/ANSI 61 & 372, ensuring lead-free compliance for potable water.
• Features a forged DZR brass construction with a 20 mesh screen and 1/2" plugged NPT port.
• Designed to protect plumbing and heating systems from damaging debris by collecting loose particles.

Product Highlights

Lead-free DZR brass Y-strainer with 20 mesh screen for debris filtration in plumbing and heating systems.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-80566W
• Country of Origin: Import

Technical Specifications

• Nominal Size: 1-1/2"
• Body Material: Forged DZR Brass
• Maximum Temperature: 200°F
• Connection Type: Press x Press
• Maximum Pressure: 250 PSI (CWP)
• Lead Free: Yes
• Model: PRS-X056W
• Series: H-X056
• Valve Type: Strainer
• Softgoods Material: EPDM
• Plugged NPT Port Size: 1/2 in
