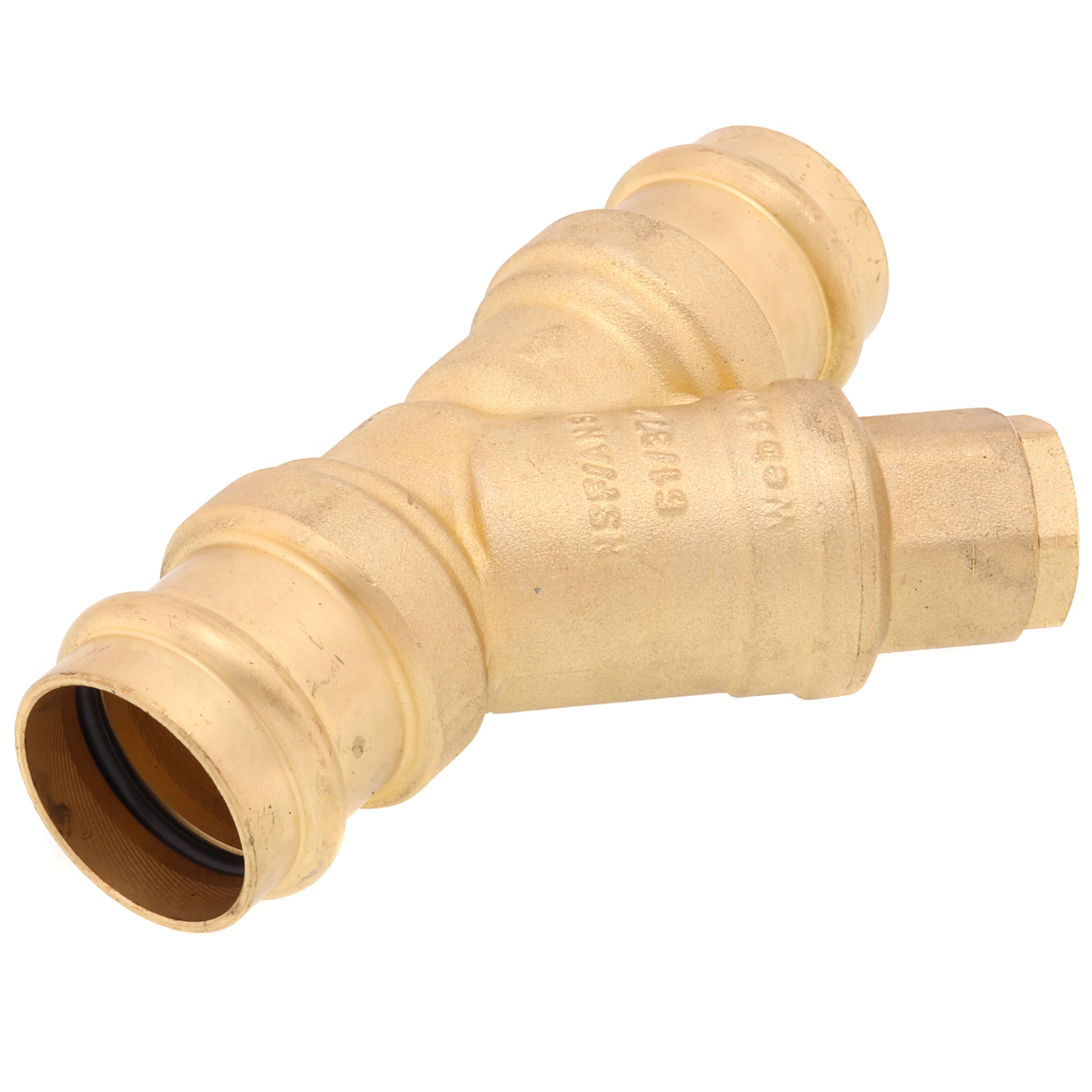

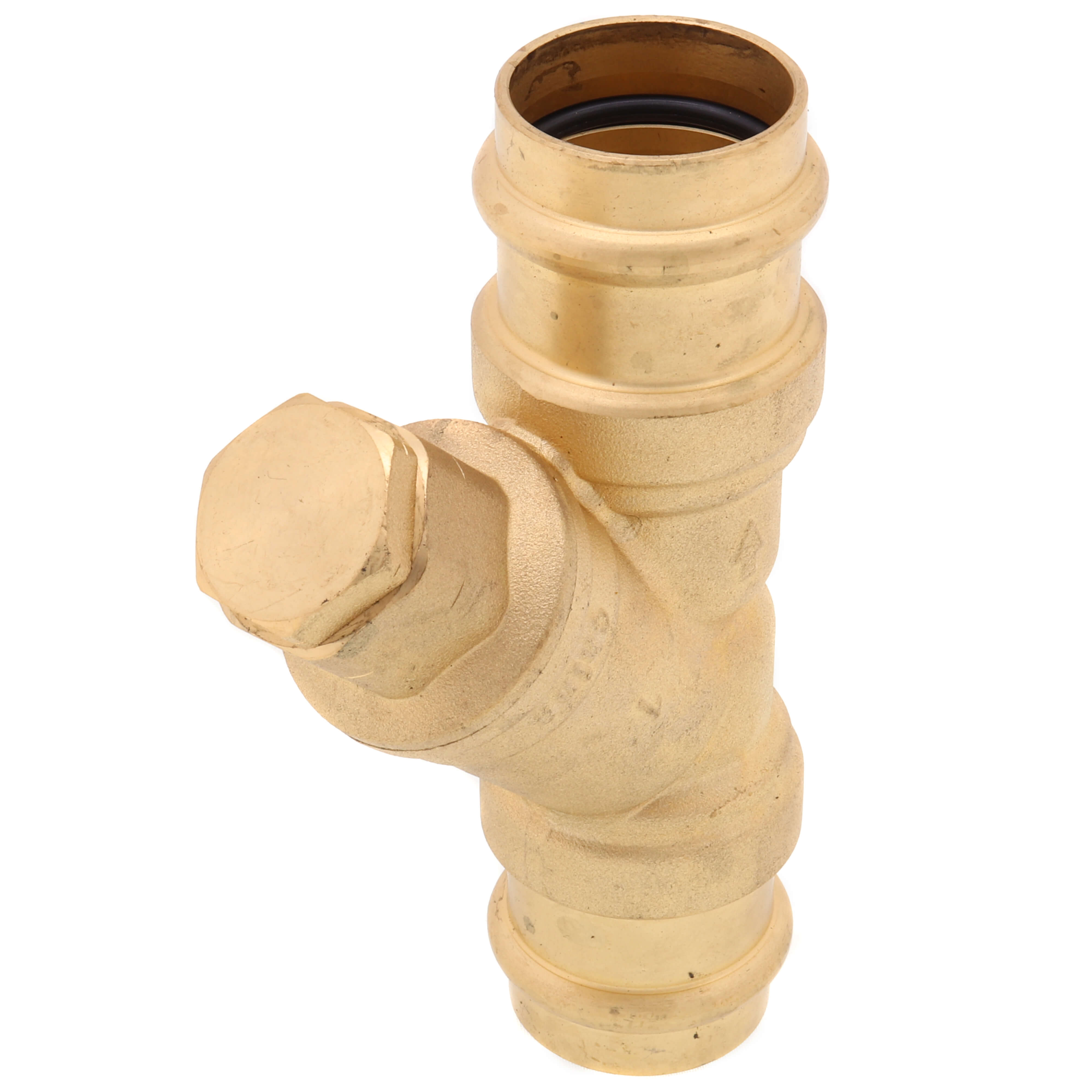

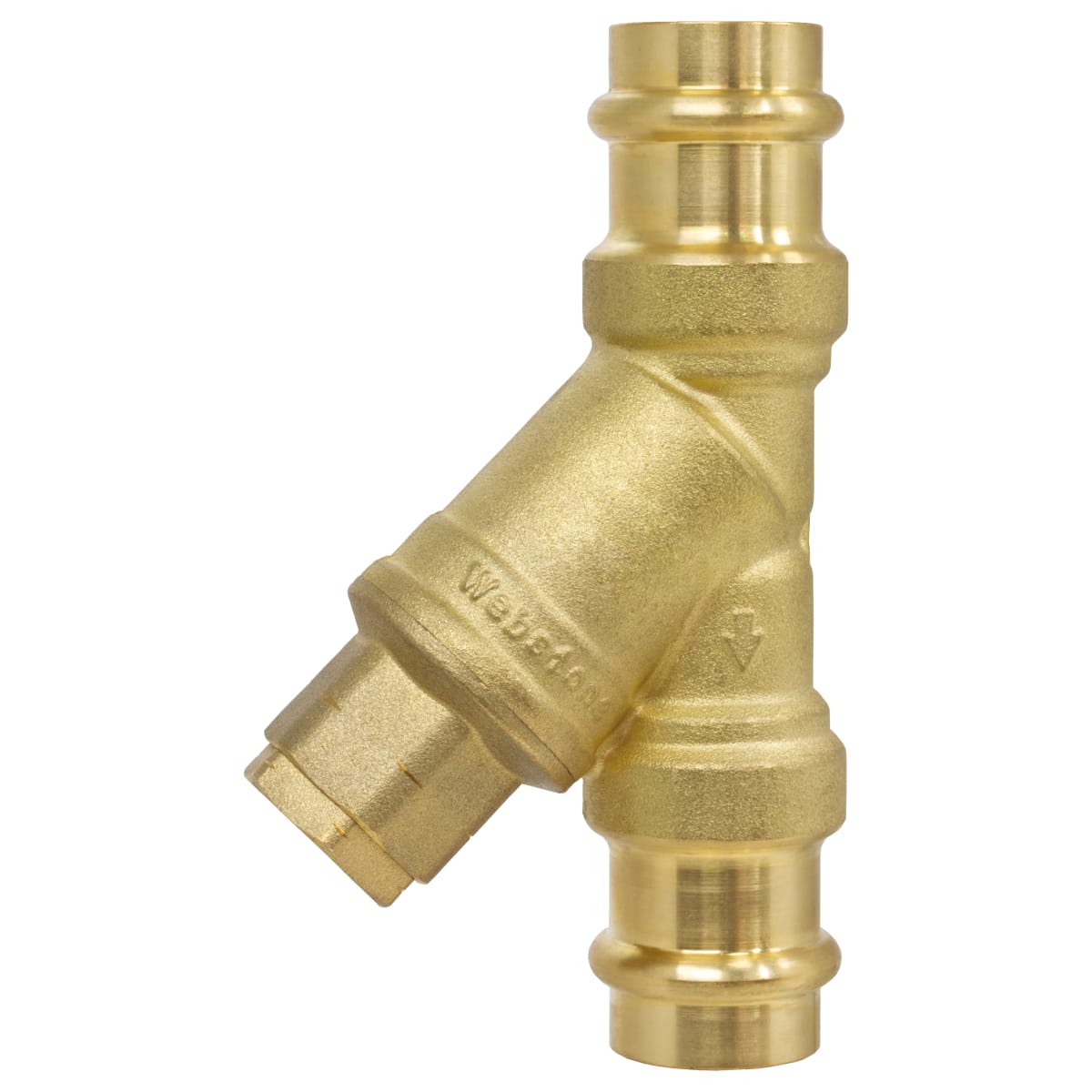

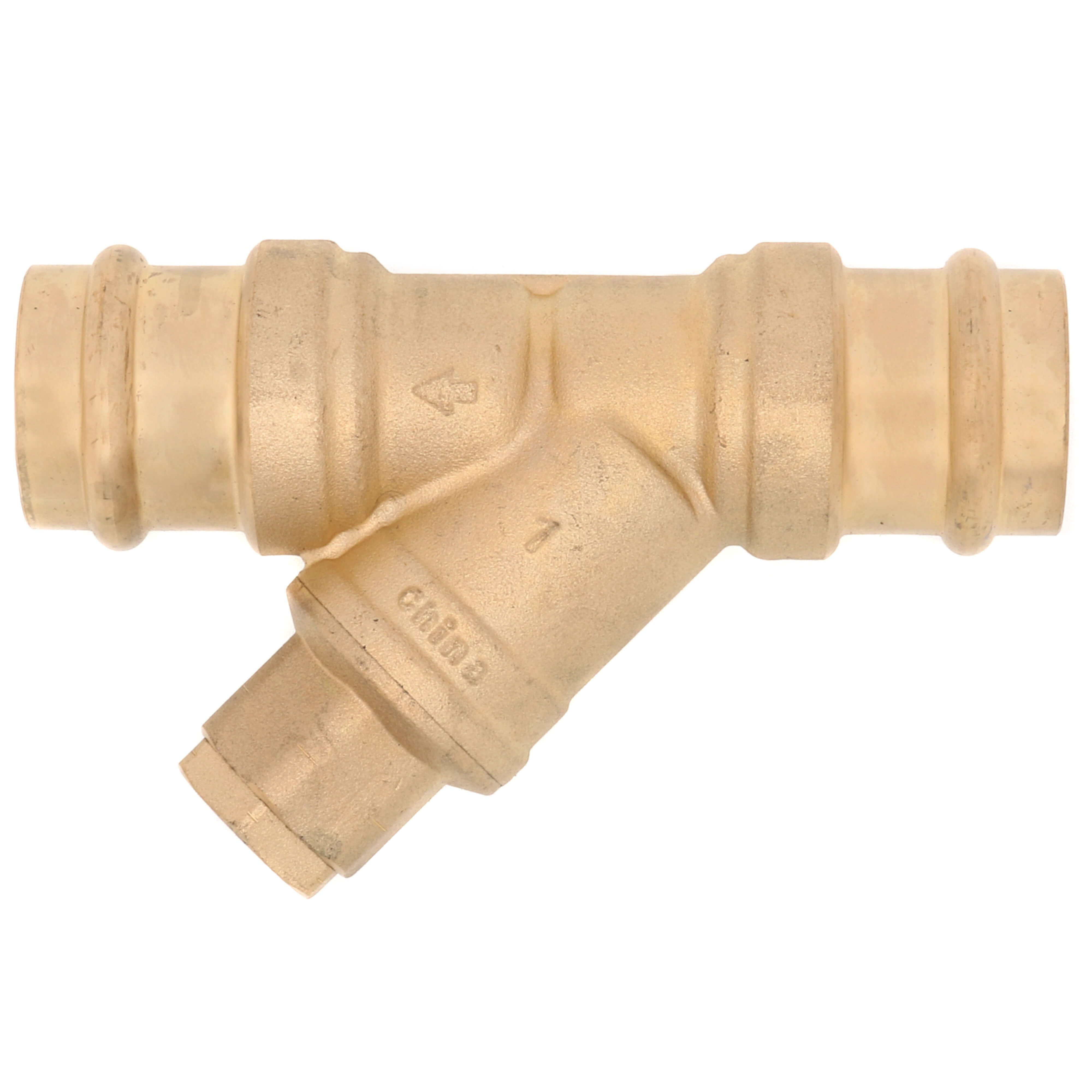

Webstone h-80564w 1 inches press lead-free forged dzr brass y-strainer (20 mesh) w/ 1/2 inches plugged npt port

Product Description

The WEBSTONE H-80564W is a 1" Press Lead-Free Forged DZR Brass Y-Strainer designed to protect plumbing and heating systems from damaging debris. This Y-strainer effectively collects loose particles, separating them from the system flow. It is suitable for use with water, oil, and glycol mixes in both residential and commercial applications, featuring a 20 mesh screen and a 1/2" plugged NPT port.

• Replaceable screen, offering 20 or 40 mesh options for filtration.
• O-ring sealed and plugged strainer port for simplified filter removal.
• O-ring sealed and plugged blow down port for easy drain valve installation.

Product Highlights

Protects systems from damaging debris in plumbing and heating applications.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-80564W
• Country of Origin: China

Technical Specifications

• Type: WBST Y-Strainers
• Material: LF DZR Brass
• Application: Lead-Free
• Connection Type: Press
• Pressure Rating: 250 PSI CWP Max
• Max Temperature: 200°F Max
• Model: PRS-X056W
• Series: H-X056
• Nominal Pipe Size: 1" x 1"
