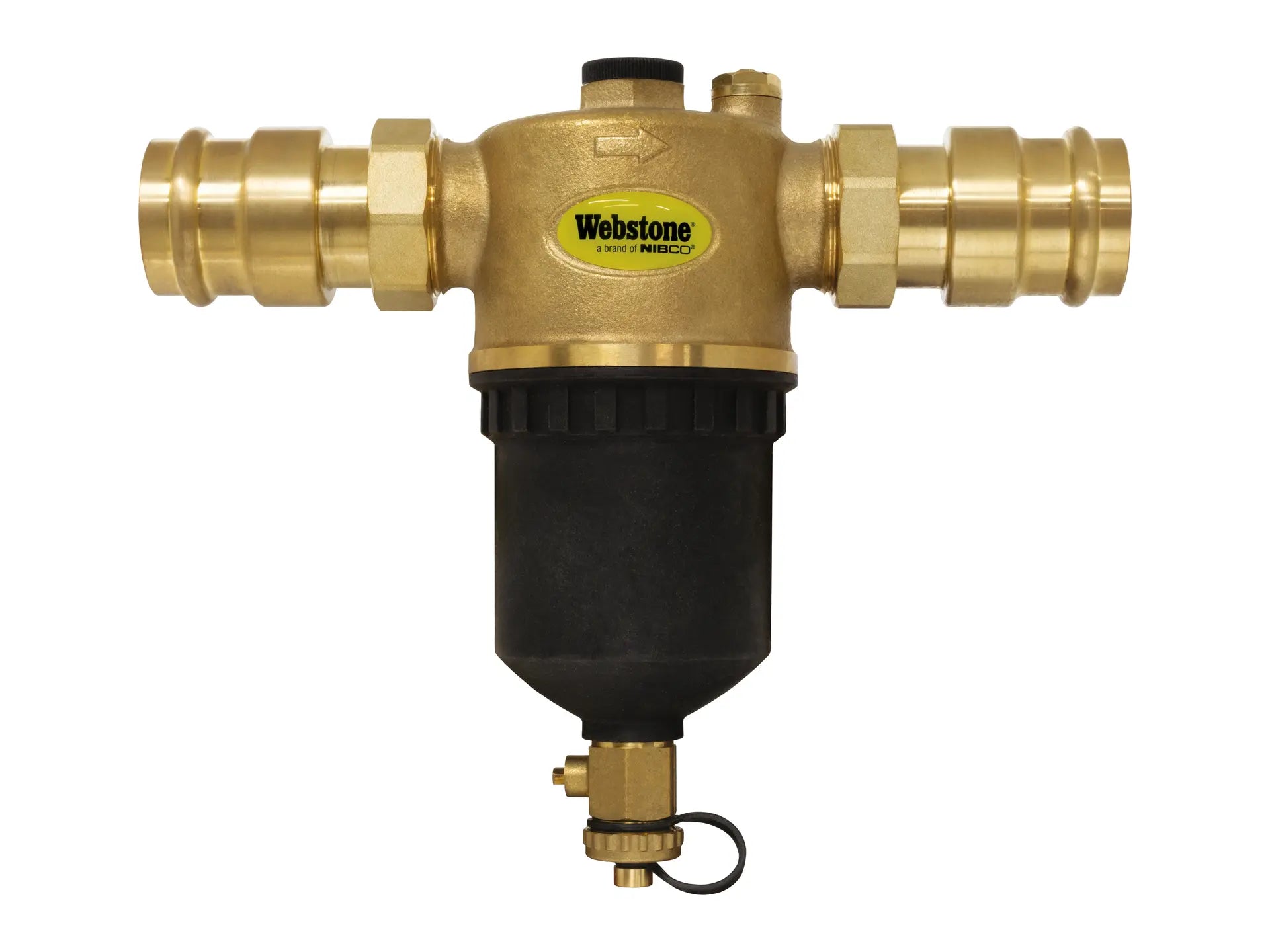

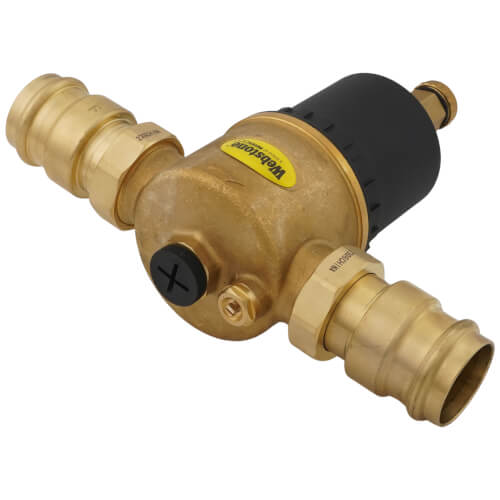

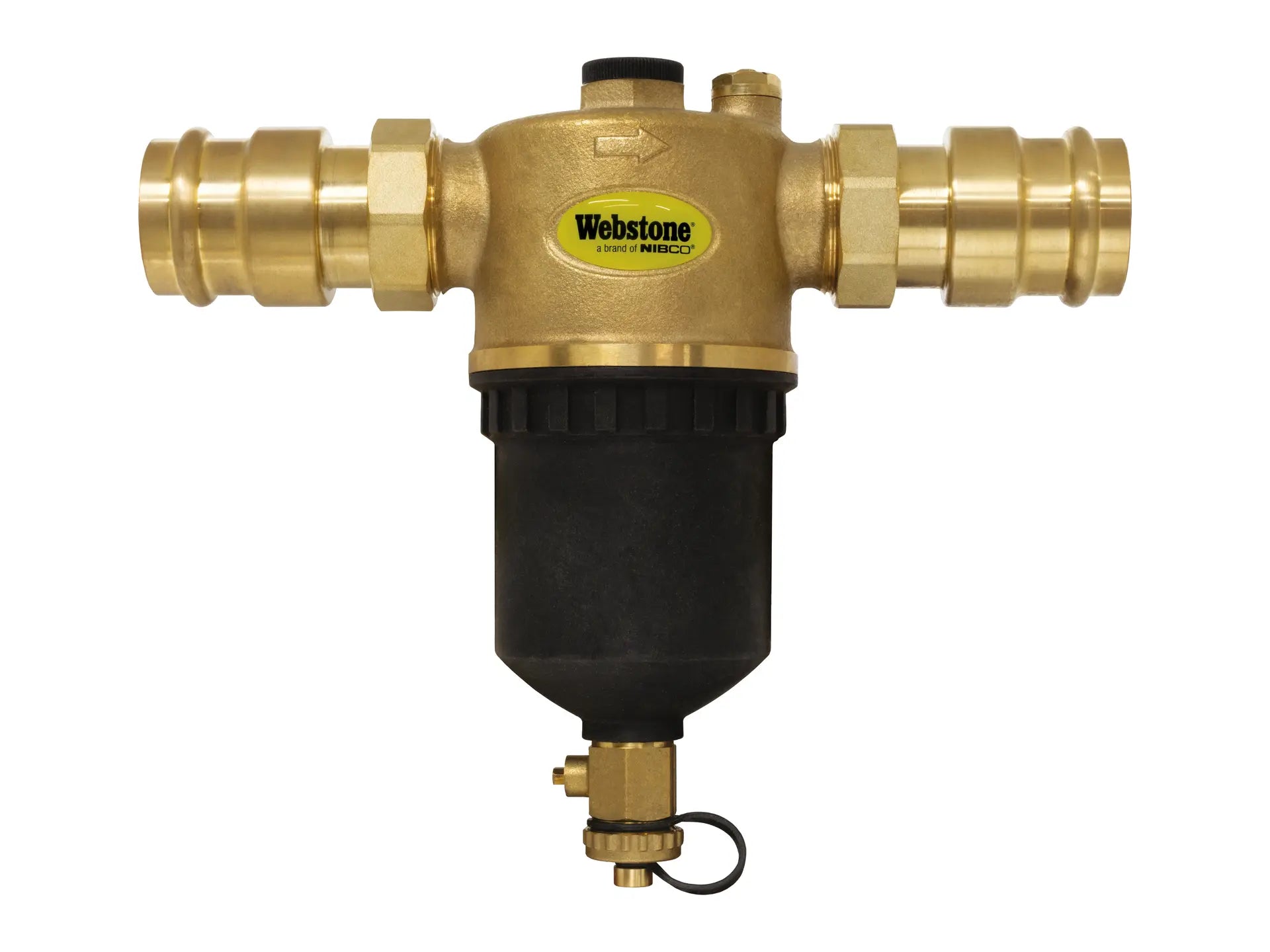

Webstone H-78706 1-1/2 inch Press Brass Magnetic Boiler Filter XL

Product Description

The WEBSTONE H-78706 is a 1-1/2 inch Press Brass Magnetic Boiler Filter XL, designed for residential and commercial heating systems. This dirt eliminator features a 12,000 Gauss magnet to capture ferrous debris. Constructed from brass, it includes an integrated hose drain valve, air vent, and filter. The unit is rated for 145 PSI CWP and comes with two union end connections and a service tool for installation.

• 12,000 Gauss Magnet
• Integrated Hose Drain Valve, Air Vent & Filter

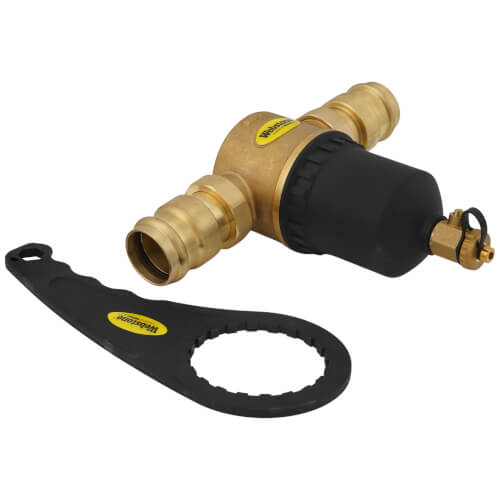

• Includes (2) Union End Connections & Service Tool

Product Highlights

Ideal for larger boilers and system installations, designed for use with water, oil, or glycol mix in residential or commercial heating systems.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-78706

Technical Specifications

• Nominal Pipe Size: 1-1/2"
• Type: Magnetic
• Material: Brass
• Product Type: Dirt Eliminator
• Connection Type: Press x Press
• Connection Method: Press
• Model: PRS-7X70XL
• End Connection Type: Press
• Pressure Rating: 145 PSI CWP Max
• UPC: 18394020818
• Potable Water Compatibility: Not Lead-Free Compliant, Not Intended for Potable Water
• End Connection Size: 1-1/2 Inch x 1-1/2 Inch
