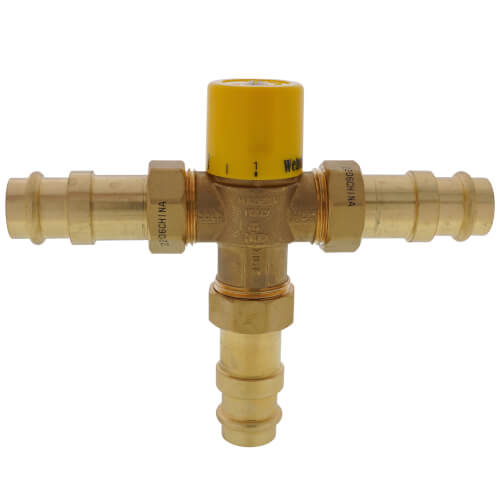

WEBSTONE H-78203W Pro Connect Press Mixing Valve 3/4 inches Replacement MPN

Product Description

The Webstone H-78203W is a 3/4 inches Pro Connect Press Mixing Valve. It is equipped with a check valve and can handle pressures up to 150 PSI. This valve is lead-free, making it suitable for both heating and domestic water systems. It supports outlet temperatures from ninety-five degrees Fahrenheit to one hundred thirty-one degrees Fahrenheit. Installation does not require designated straight piping and can be done in any orientation. If water quality is poor, a filter or strainer is necessary.

• Press x Press Connection
• Size: 3/4 inches
• Max Temperature: 131 degrees Fahrenheit

Product Highlights

The valve ensures reliable performance in various applications, allowing efficient mixing of hot and cold water.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-78203W

Technical Specifications

• Size: 3/4 inches
• Connection Method: Press
• Working Pressure (PSI): 30-150
• Temperature Range (F): 95 degrees Fahrenheit - 131 degrees Fahrenheit
• Standards Met: ASSE 1017
• Application: Point of Source, Point of Use
• Body Material: Forged Brass
• Pressure Rating: 150 PSI
