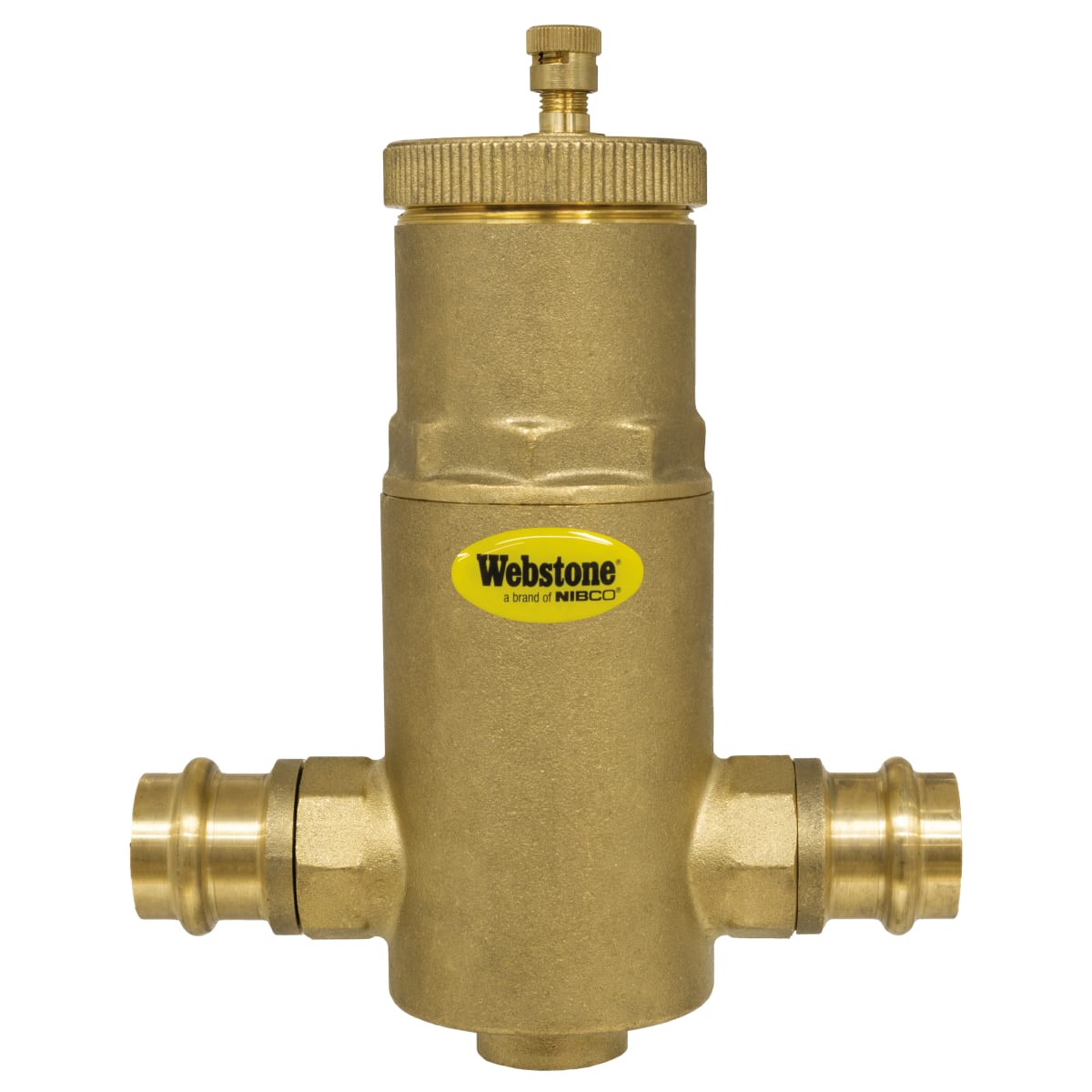

Webstone H-78003 3/4 Press Non-Potable Brass Air Separator W/ Removable Vent Head & Coalescing Medium

Product Description

The Webstone H-78003 is a 3/4 inch press non-potable brass air separator designed for residential and commercial heating systems. This unit effectively removes air from heating systems using water, oil, or glycol mix. It is equipped with a removable vent head and a unique stainless steel coalescing medium that captures micro bubbles. The design allows flow to be directed into either side of the unit, ensuring flexibility in installation.

• Unique stainless steel coalescing medium captures micro bubbles and static air in a hydronic system
• Pin guided float ensures jam-free operation
• Flow may be directed into either side of the unit

Product Highlights

This air separator reduces noise and wear on system components, improving system efficiency and operation. It minimizes customer call backs and requires no regular maintenance, making it ideal for use with expansion tank pro service valves.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-78003

Technical Specifications

• Size: 3/4 inches
• Type: Horizontal air separator
• Material: Brass
• Application: Non-potable
• Connection Size: 3/4 inches
• Connection Type: Press
• Pressure Rating: 150 PSI CWP Max
• Temperature Rating Max: 250 F Max
