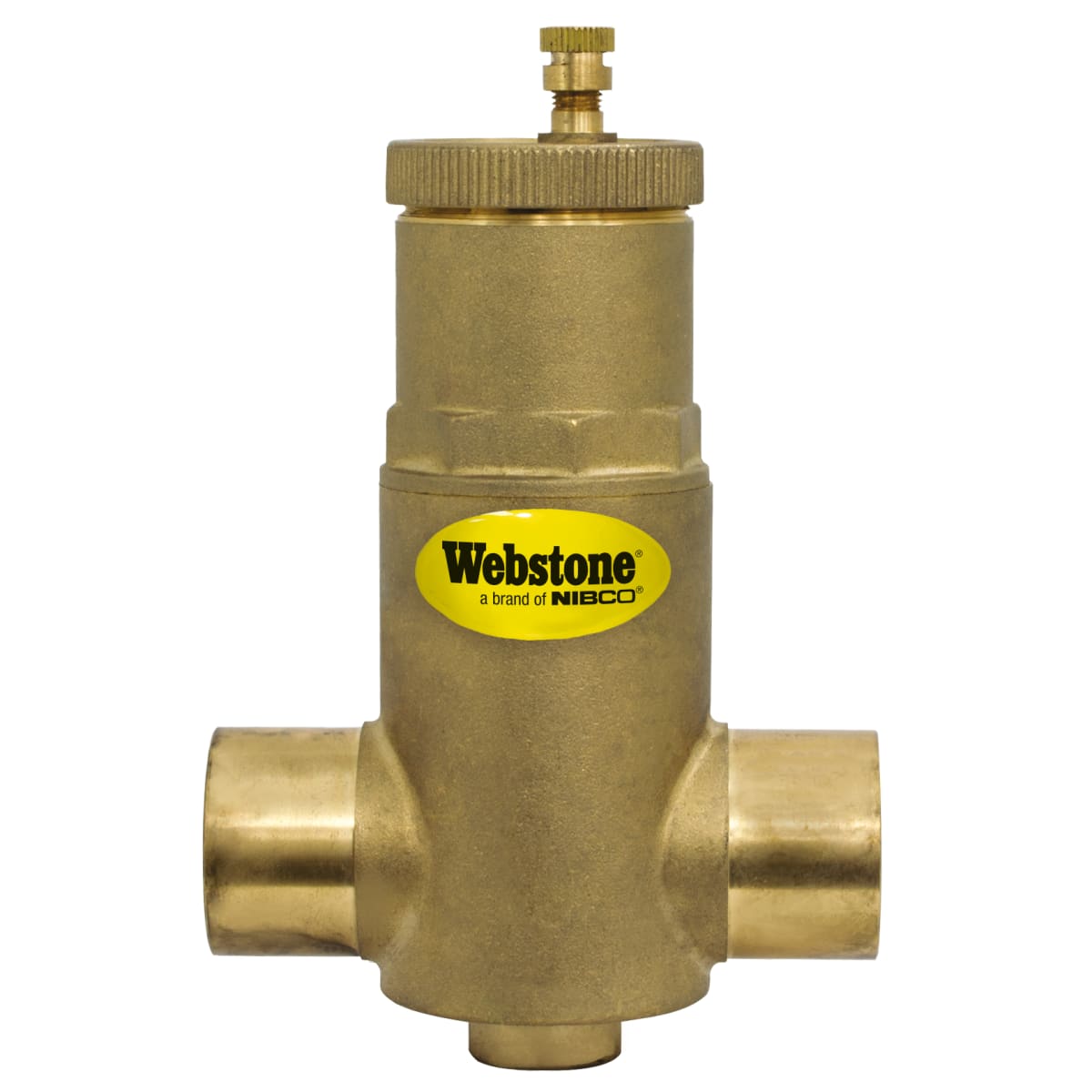

Webstone H-75005 Air Separator 1-1/4 Inches SWT Brass W/Removable Vent Head & Coalescing Medium

Product Description

The WEBSTONE H-75005 is a one and one-fourth inch SWT brass air separator with a removable vent head and coalescing medium. It is suitable for use in residential or commercial heating systems that utilize water, oil, and glycol mixes. The separator is designed to enhance the efficiency of hydronic systems by effectively removing micro bubbles and static air.

• Unique stainless steel coalescing medium captures micro bubbles and static air in a hydronic system
• Pin guided float ensures jam-free operation
• Flow direction can be adjusted on either side of the unit

Product Highlights

This air separator is engineered for optimal performance in non-potable applications, helping to maintain system efficiency.

Product Information

Standard Information

• Size: 1-1/4 inches
• Type: Horizontal Air Separators

Technical Specifications

• Material: Brass
• Application: Non-Potable
• Connection Size: 1-1/4 inches
• Connection Type: SWT
• Pressure Rating: 150 PSI CWP Max
• Temperature Rating Max: 250 F Max
