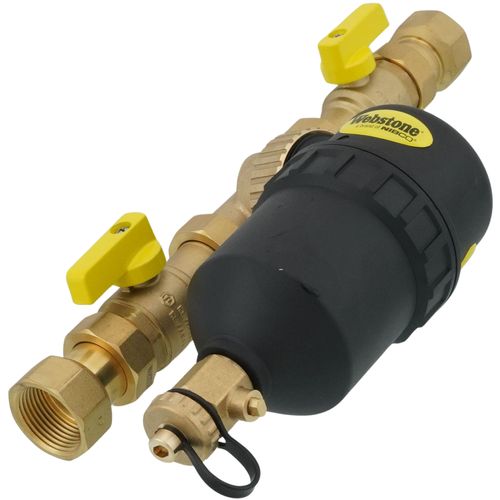

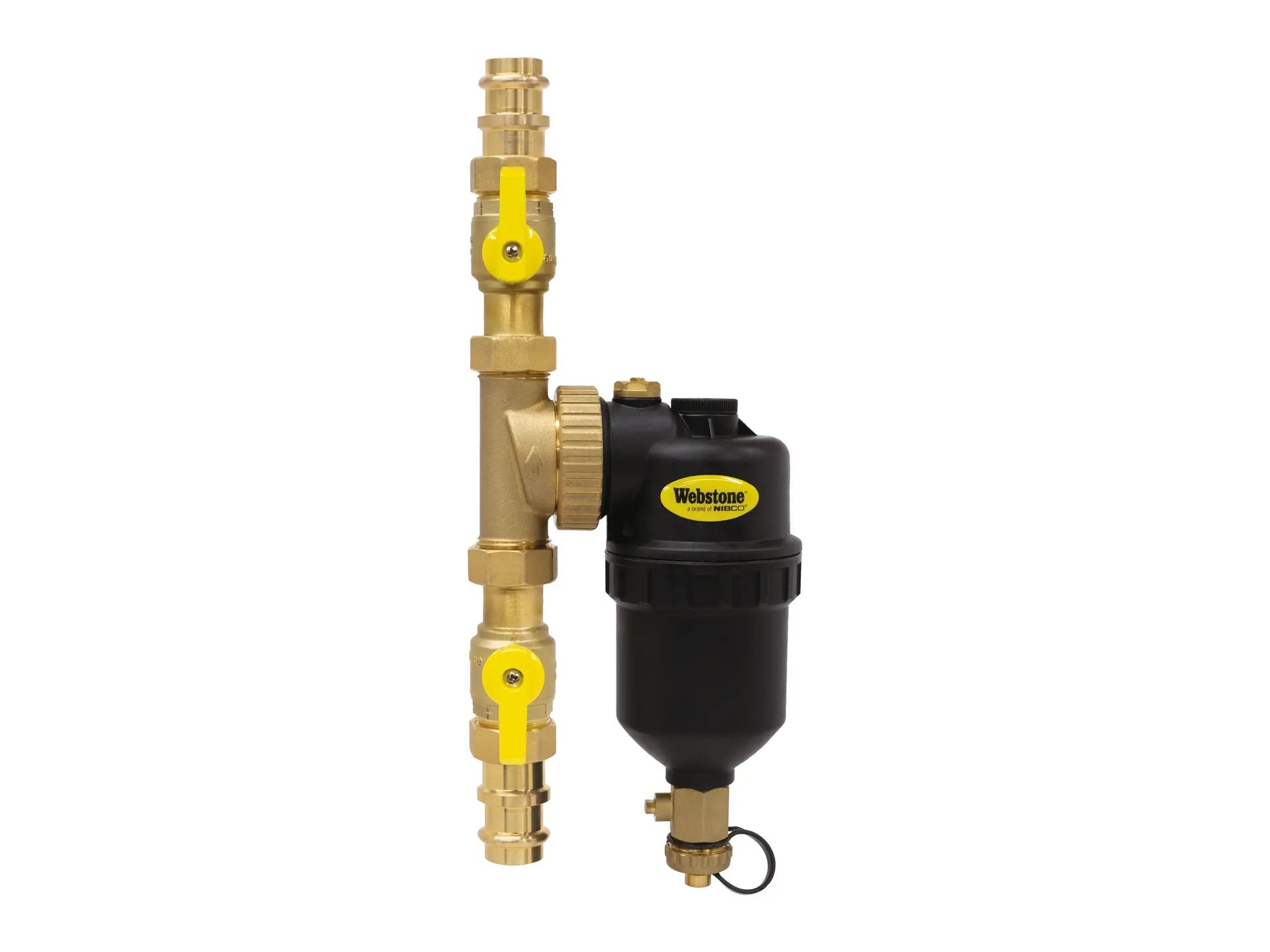

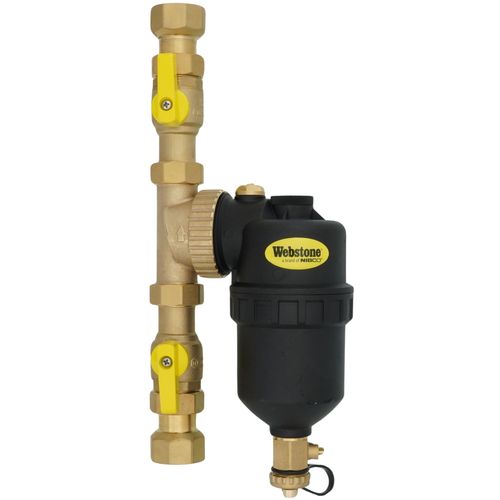

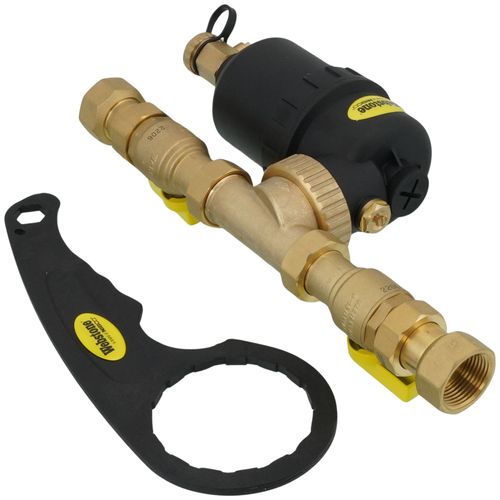

Webstone H-74714 1 inches Female Threaded Brass Magnetic Boiler Filter With Isolation Valves

Product Description

The WEBSTONE H-74714 is a 1" Female Threaded Brass Magnetic Boiler Filter designed to remove ferrous debris from heating systems. This dirt eliminator features a powerful 12000 Gauss magnet and a diverter for flexible installation. It includes G1 union connections, an integrated hose drain valve, and an air vent, operating up to 175 PSI CWP and 250F MAX. Suitable for water, oil, and glycol mix in residential or commercial heating applications.

• 12000 Gauss magnet effectively captures ferrous debris and iron sludge.
• Integrated hose drain valve and air vent facilitate easy maintenance.
• G1 union connections and a diverter allow for versatile installation in heating systems.

Product Highlights

Protects heating system components and maintains efficiency with a 12000 Gauss magnet, rated for 175 PSI CWP and 250F MAX.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-74714

Technical Specifications

• Size: 1"
• Type: Magnetic
• Material: Brass
• Product Type: Dirt Eliminator
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Model: THD-7X71
• Pressure Rating: 175 PSI CWP Max
• Potable Water Compatibility: Not LL Comp not intend potable
• Application: Heating or Other Non-Potable Plumbing
• Maximum Temperature: 250 F Max
