Webstone H-74706 Magnetic Boiler Filter XL 1-1/2 inches FIP

Product Description

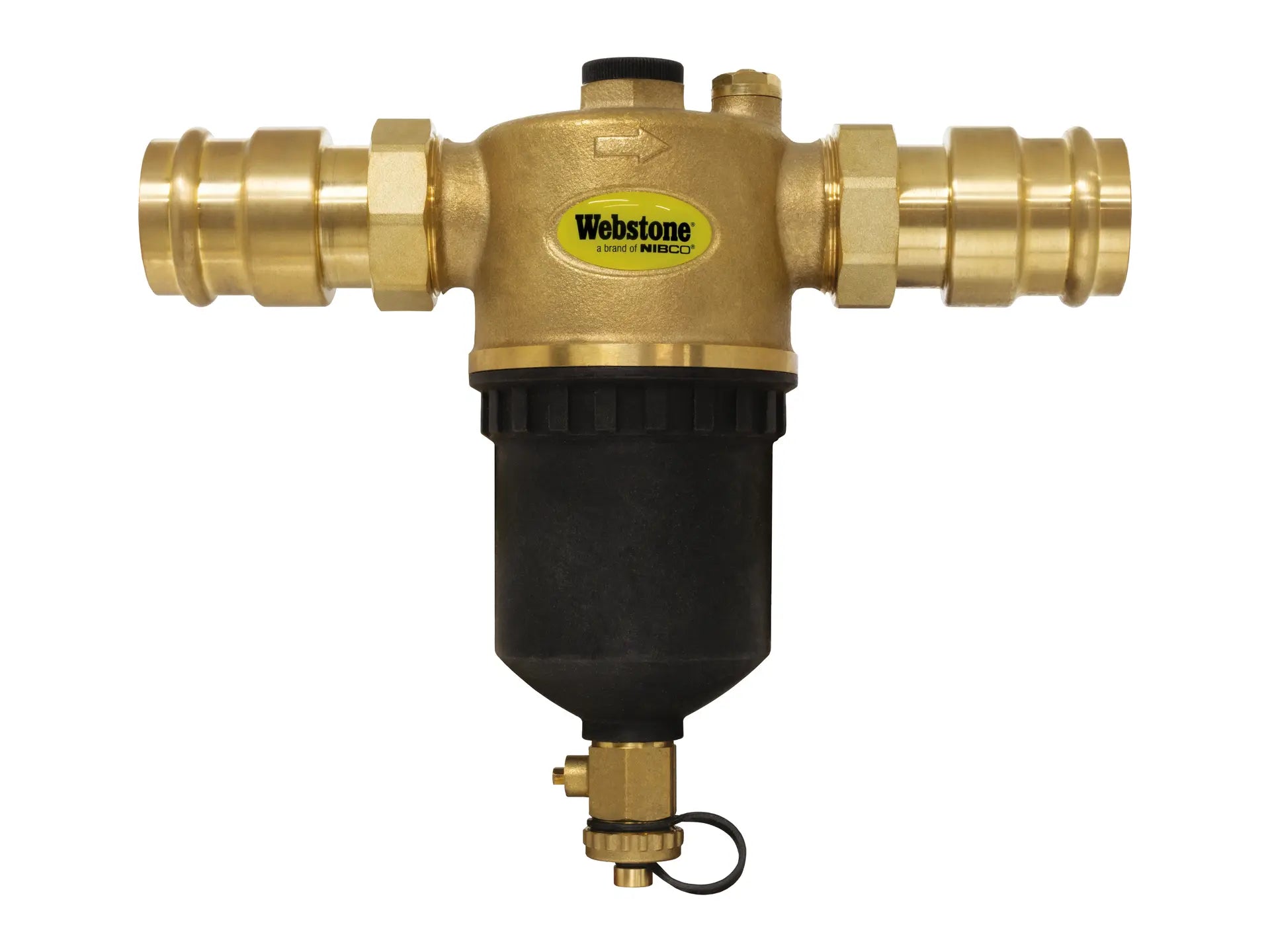

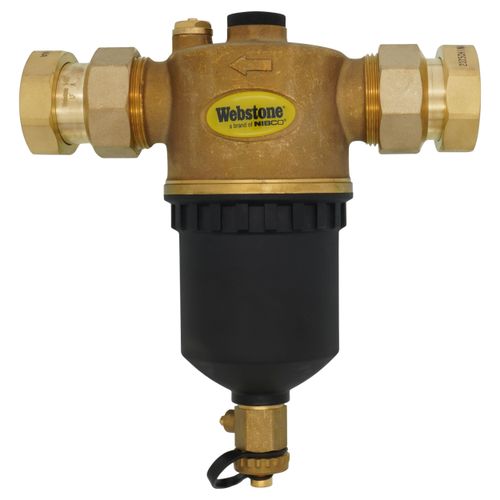

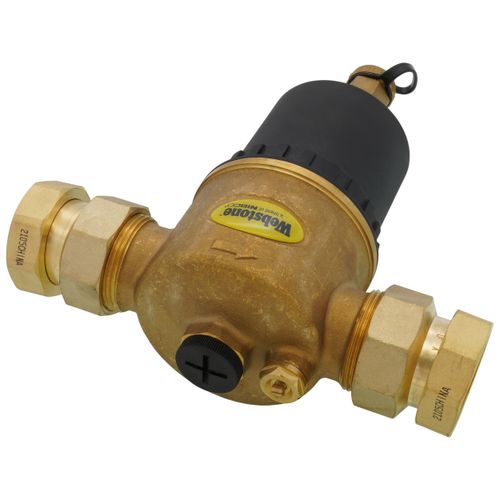

The WEBSTONE H-74706 is a 1-1/2" FIP Brass Magnetic Boiler Filter XL designed to eliminate dirt and protect heating system components. It features a 12,000 Gauss magnet to capture ferrous debris and filter iron sludge. This magnetic separator is suitable for larger boilers and installations on the system run, handling water, oil, or glycol mix in residential or commercial heating systems. It helps maintain system efficiency.

• 12,000 Gauss Magnet
• Integrated Hose Drain Valve, Air Vent & Filter

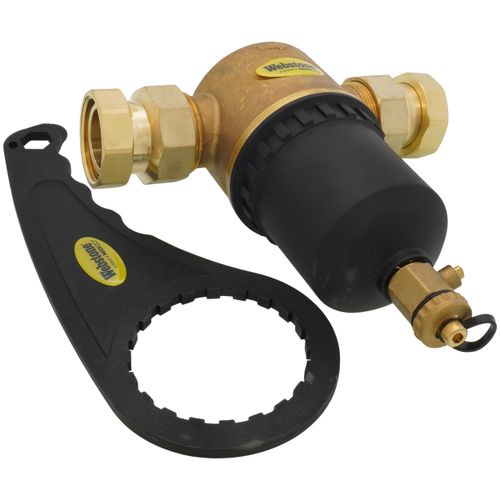

• Includes (2) Union End Connections & Service Tool

Product Highlights

Captures ferrous debris and filters iron sludge, protecting system components and maintaining system efficiency for larger boilers and heating systems.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-74706

Technical Specifications

• Size: 1-1/2"
• Type: Magnetic
• Material: Brass
• Product Type: Dirt Eliminator
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Model: THD-7X70XL
• Valve End Connection Type: FIP
• Pressure Rating: 145 PSI CWP Max
• Potable Water Code: Not LL Comp not intend potable
• Application: Heating or Other Non-Potable Plumbing
• Temperature Rating (Max): 250 F Max
