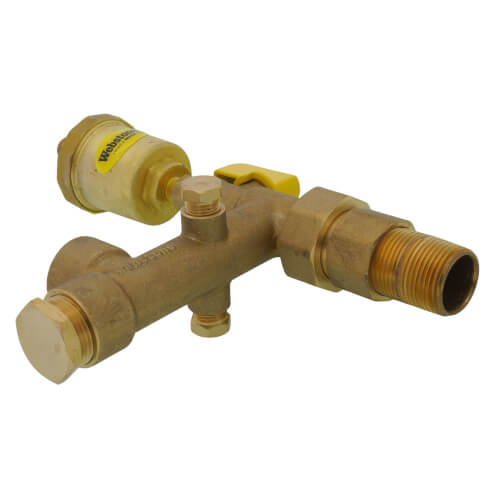

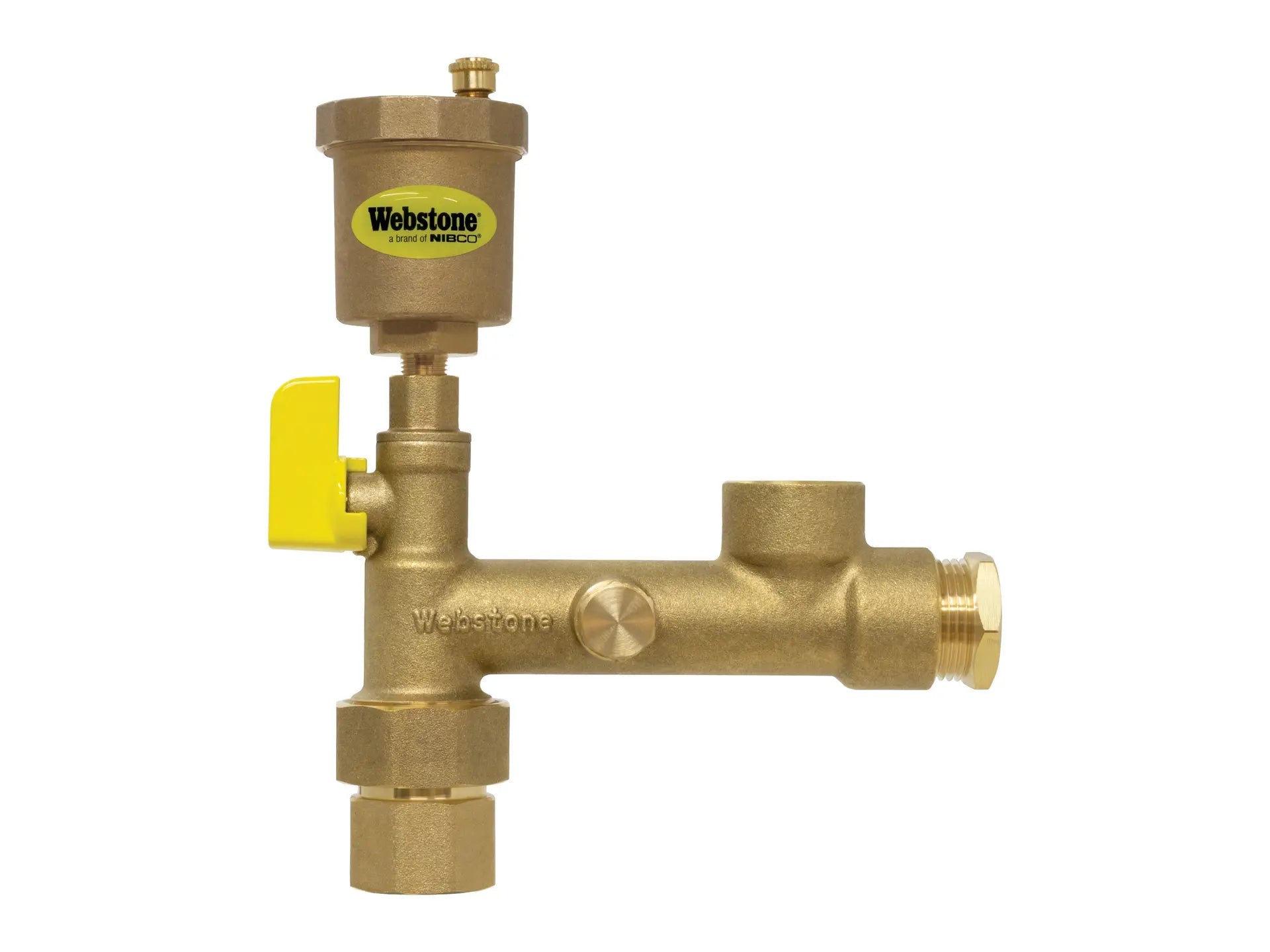

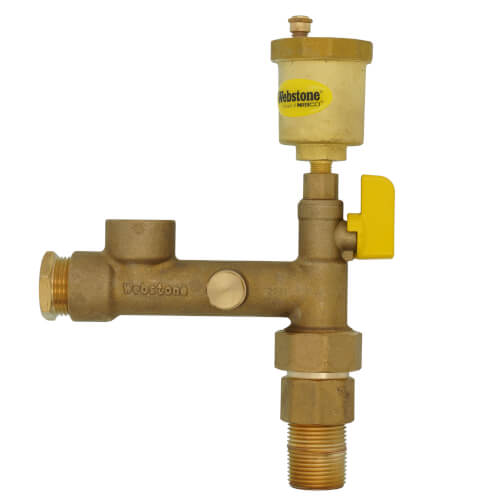

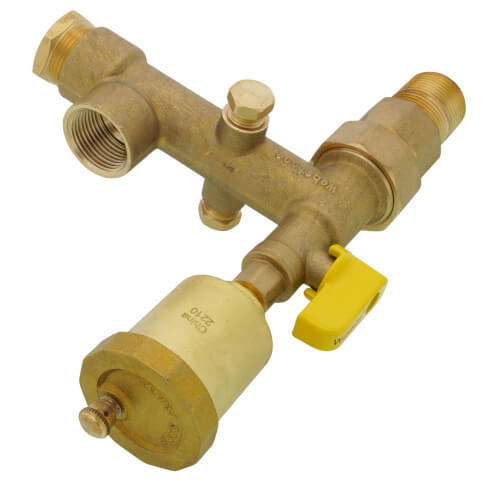

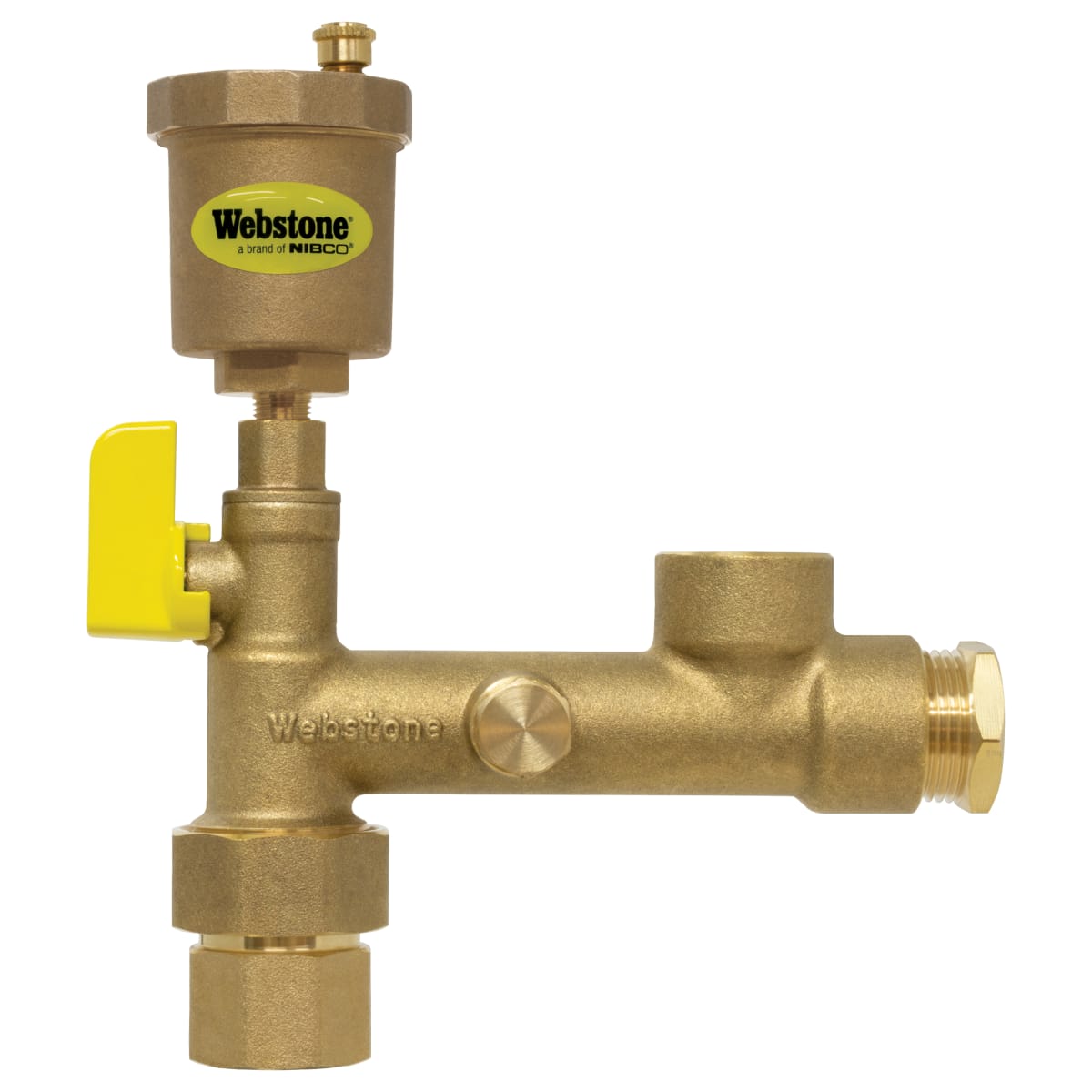

Webstone H-74613 Vent Valve Boiler with Air Vent for LWCO

Product Description

The Webstone H-74613 vent valve boiler with air vent for LWCO is designed for efficient installation and system operation. This valve combines commonly used components into a single forged brass unit, saving time and space. It expands the utility of a boiler's 3/4" PRV port, capitalizing on its location for air vent and accessory placement. Designed for use with water, oil, and glycol mixes in heating systems.

• Union connection to boiler for easier installation and flexible positioning
• Includes an automatic air vent to release trapped air from the system
• Integrated ball valve isolates vent for service without obstructing the PRV

Product Highlights

This Webstone boiler vent valve saves installation time, replaces multiple components, and reduces potential leak paths in residential or commercial heating systems.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-74613
• Country of Origin: United States

Technical Specifications

• Brand: Webstone
• Material: Brass
• Application: Non-Potable
• Connection_Size: 3/4"
• Connection_Type: FIP
• Pressure_Rating: 145 PSI CWP Max
• Size: 3/4"
• Max Temp: 200°F Max
• Manufacturer: Webstone
• Part Number: H-74613
• Nominal Pipe Size: 3/4"
• System Use: Heating
• Type of Valve: Ball Valve - Comibination
• Valve End Connection Type: FIP
• End Connection: Threaded
• UPC: 018394025127
• Length: 6.69"
• Width: 4.72"
• Height: 2.68"
