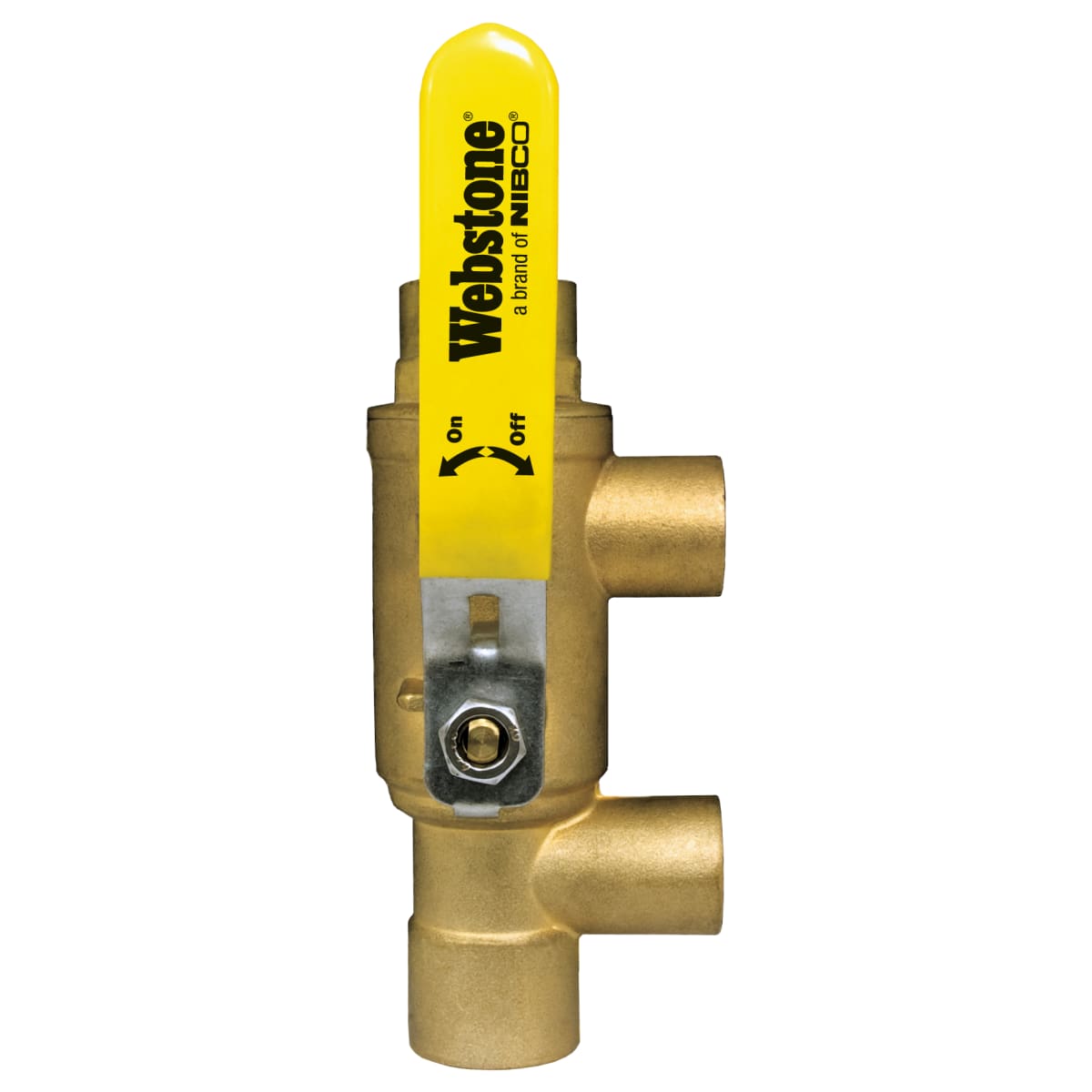

Webstone H-58654 1-1/4 x 1 SWT Non-Potable Pro-Pal Primary/Secondary Loop Purge Tee Full Port Forged Brass Ball Valve

Product Description

Webstone H-58654 is a forged brass ball valve designed for non-potable applications. This valve combines essential components into one unit, making installation easier and more efficient. It is suitable for systems involving water, oil, or glycol in residential or commercial heating setups. The valve features a reversible handle and an adjustable packing gland for improved operation.

• Offers hydraulic separation between closely spaced tees
• Precision-crafted for reliable performance
• Reduces installation time significantly

Product Highlights

Ideal for simplifying your piping system with high-performance components.

Product Information

Standard Information

• Brand: Webstone
• Part Number: WEBS-H-58654

Technical Specifications

• Material: Brass
• Application: Non-Potable
• Connection Size: 1-1/4 x 1
• Connection Type: F1960 x F1960
• Pressure Rating: 600 PSI CWP Max
• Temperature Rating Max: 250 F Max
