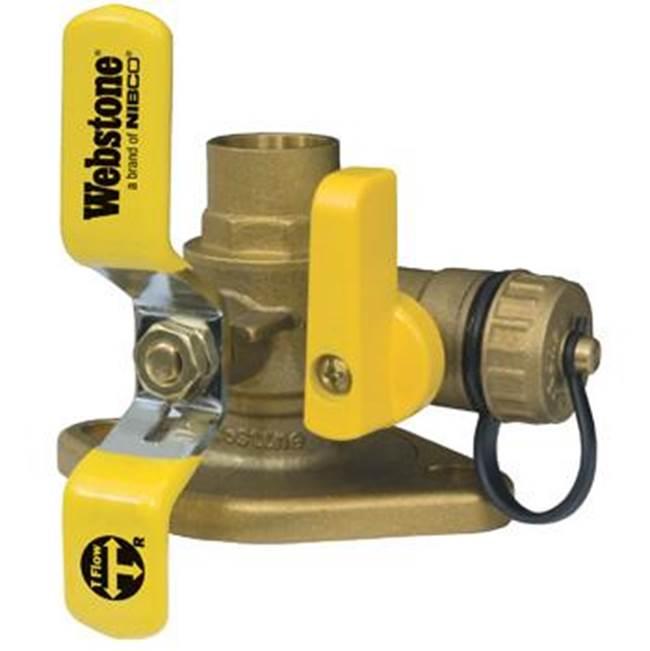

Webstone H-51415 Isolator W/MF Drain & Rot. Flg 1-1/4 in

Product Description

The Webstone H-51415 isolator is designed for effective isolation in plumbing systems. This full port ball valve features a connection size of one and one-quarter inches, making it suitable for a variety of applications. Constructed from durable brass, it includes a sweat x flanged connection and is rated for six hundred psi WOG pressure. The temperature rating for this valve is one hundred degrees Fahrenheit.

• Easily isolates the pump for replacement
• Prevents electrolysis and eliminates galvanic corrosion
• Rotating flange is secured for precise positioning during installation

Product Highlights

The isolator valve includes a multi-function drain, adjustable packing gland, and a conical inlet that minimizes turbulence, ensuring optimal flow in your system.

Product Information

Standard Information

• Connection Type: Sweat x Flanged
• Nominal Size: 1-1/4 in

Technical Specifications

• Pressure Rating: 600 psi WOG
• Material: Brass
• Handle Material: Steel
• Stem Material: Brass
• Packing Material: Brass
• Seat Material: PTFE
• Seal Material: PTFE
• Temperature Rating: 100 deg F
• Series: 5141 Series
• Operator Type: Handle
• Lead-Free/Contains Lead: Contains Lead
