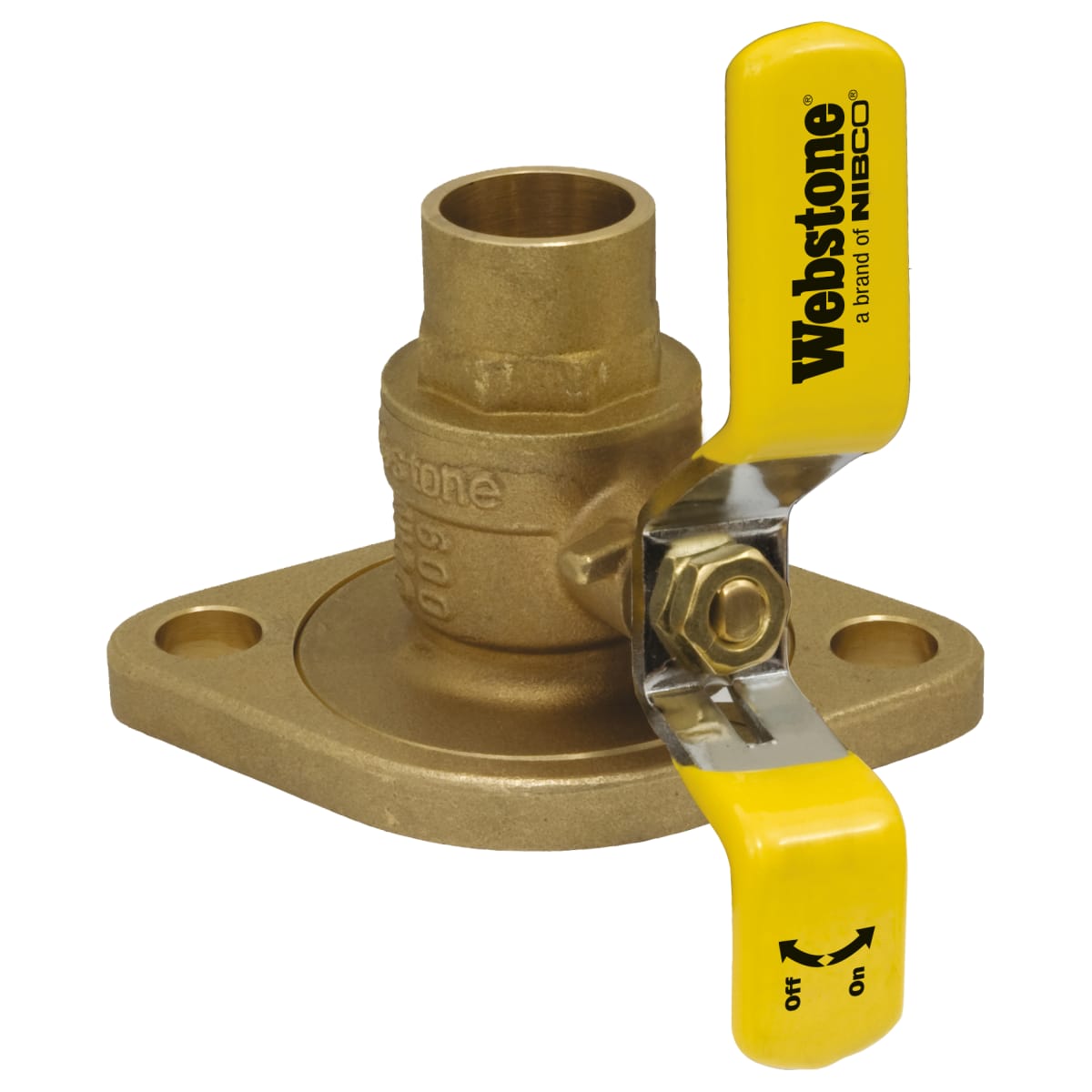

Webstone H-51405HV 1-1/4 SWT x Rotating Flange Non-Potable Isolator

Product Description

The Webstone H-51405HV is a uni-flange ball valve designed to isolate a circulator pump, effectively preventing air from entering the system during replacement or service. This product’s design integrates multiple components into a single forged brass body, optimizing installation time and space. It plays a crucial role in the installation of circulator pumps, representing a significant advancement in flanged ball valve technology.

• Easily isolates the pump for quick replacement
• Prevents electrolysis and eliminates galvanic corrosion
• Rotating flange secured by a snug-fit snap-ring enhances installation control

Product Highlights

Designed for use with water, oil, and glycol mix in both residential and commercial plumbing and heating systems, the H-51405HV is a highly functional tool for professionals. Refer to the specification sheets for further technical information. All Webstone products come with a limited lifetime warranty.

Product Information

Standard Information

• Brand: Webstone
• Part Number: WEBS-H-51405HV

Technical Specifications

• Type: Isolator Rotating Flange No Drain
• Material: Brass
• Connection Size: 1-1/4 inches
• Connection Type: SWT x Rotating Flange
• Pressure Rating: 600 PSI CWP Max
• Application: Non-Potable
