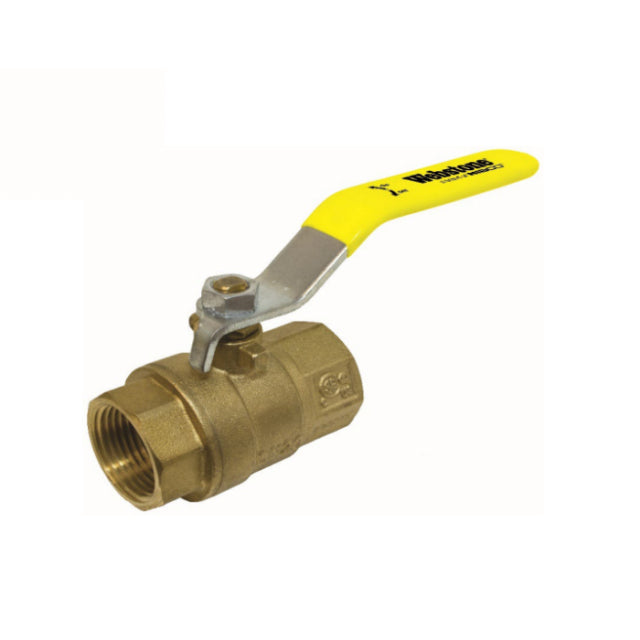

Webstone H-50705 H-X170 ball valve 1-1/4 inch

Product Description

The WEBSTONE H-50705 H-X170 Ball Valve is a full port, brass ball valve designed for controlling flow with a quarter-turn lever handle. This import valve features a 1-1/4 inch connection size and is rated for 600 PSI CWP. It is suitable for use with water, oil, and glycol mix in residential or commercial plumbing and heating systems, offering reliable flow control.

• Adjustable Packing Gland
• Ball Valve with Integral Spring Check saves Labor, Space and Leak Paths
• Controls Flow With Quarter-Turn Lever Handle

Product Highlights

Full port brass ball valve with quarter-turn control and adjustable packing gland.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-50705

Technical Specifications

• Ball Material: Brass
• Domestic/Import: Import
• Port Type: Full
• Series: H-X170
• Type: Ball Valve
• Style: Traditional
• Connection Size: 1-1/4 inch
• Pressure Rating: 600 PSI CWP
• Connection Type: Max SWT
• Application: Heating or Other Non-Potable Plumbing
• Material: Forged Brass
• Temperature Rating (Max): 200 F Max
