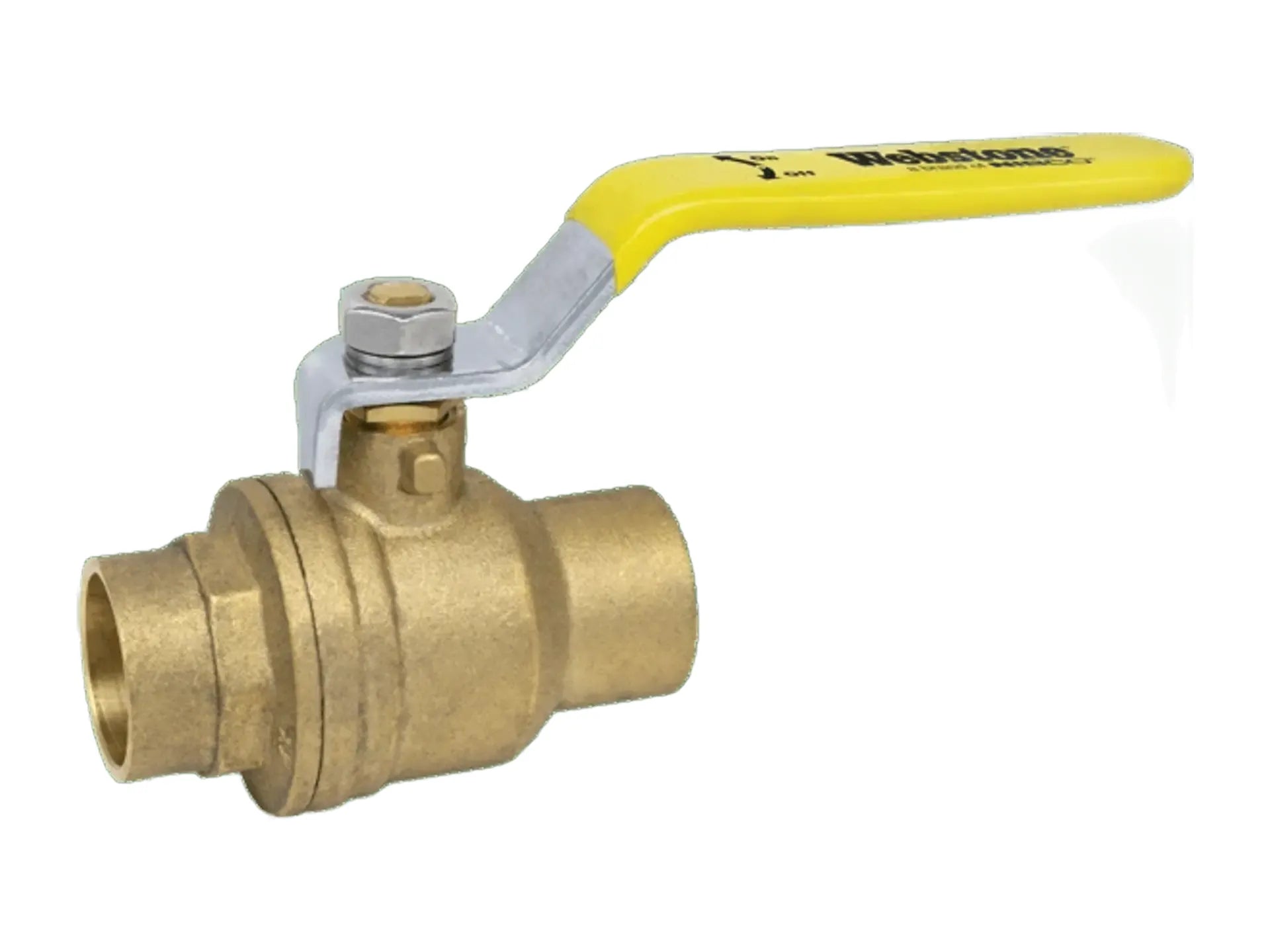

WEBSTONE H-50704W H-X170 Traditional Ball Valve 1 in SWT

Product Description

The Webstone H-50704W H-X170 is a reliable ball valve made from lead-free DZR brass. This valve features a quarter-turn lever handle, allowing for efficient control of flow. It is suitable for gas, oil, and water applications, making it ideal for both residential and commercial plumbing systems.

• Full port design allows for maximum flow.
• Complies with state and federal low-lead laws.
• Multiple end connection types available (FIP, SWT, COMP, etc.).

Product Highlights

Engineered for durability, this ball valve ensures minimal leak paths and easy maintenance.

Product Information

Standard Information

• Type: Valve
• Type of Valve: Ball Valve

Technical Specifications

• Actuator Type: Quarter Turn Lever Handle
• Ball Material: Lead-Free DZR Brass
• Body Material: Lead-Free DZR Brass
• End Style: SWT
• Media: Gas/Oil/Water
• Nominal Size: 1 in
• Orifice Size: 0.98 in
• Pressure Rating: 600 psi
• Temperature Rating: 200 deg F
• Length: 6.04 in
• Width: 3.46 in
• Height: 1.89 in
