Webstone H-50703 H-X170 Valve 3/4 in

Product Description

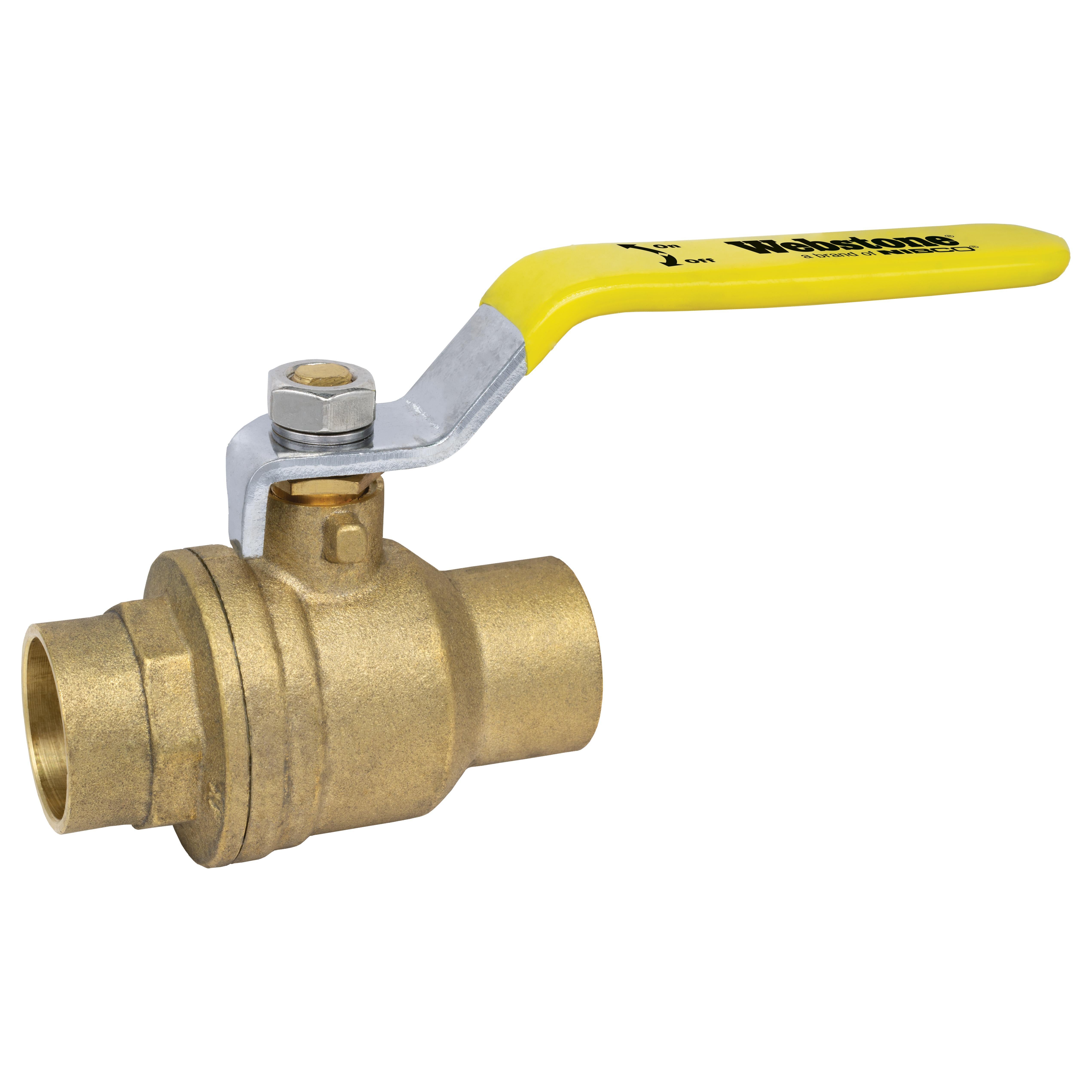

The WEBSTONE H-50703 H-X170 Valve is a 3/4 inch full port forged brass ball valve designed for controlling flow in gas, oil, and water applications. It features a durable brass body and PTFE trim, capable of handling pressures up to 600 psi and temperatures up to 200 deg F. This import valve utilizes an SWT end style for secure connections, ensuring reliable operation in various systems.

• Controls Flow With Quarter-Turn Lever Handle
• Ball Valve with Integral Spring Check saves Labor, Space and Leak Paths
• Adjustable Packing Gland

Product Highlights

Full port forged brass ball valve with adjustable packing gland for gas, oil and water applications.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-50703

Technical Specifications

• Body Material: Brass
• Domestic/Import: Import
• End Style: SWT
• Media: Gas, Oil and Water
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: H-X170
• Temperature Rating: 200 deg F
• Trim Material: Brass/PTFE
• Valve Type: Ball Valve
• Style: Traditional
