Webstone H-50702W H-X170 Traditional Ball Valve 1/2 in SWT

Product Description

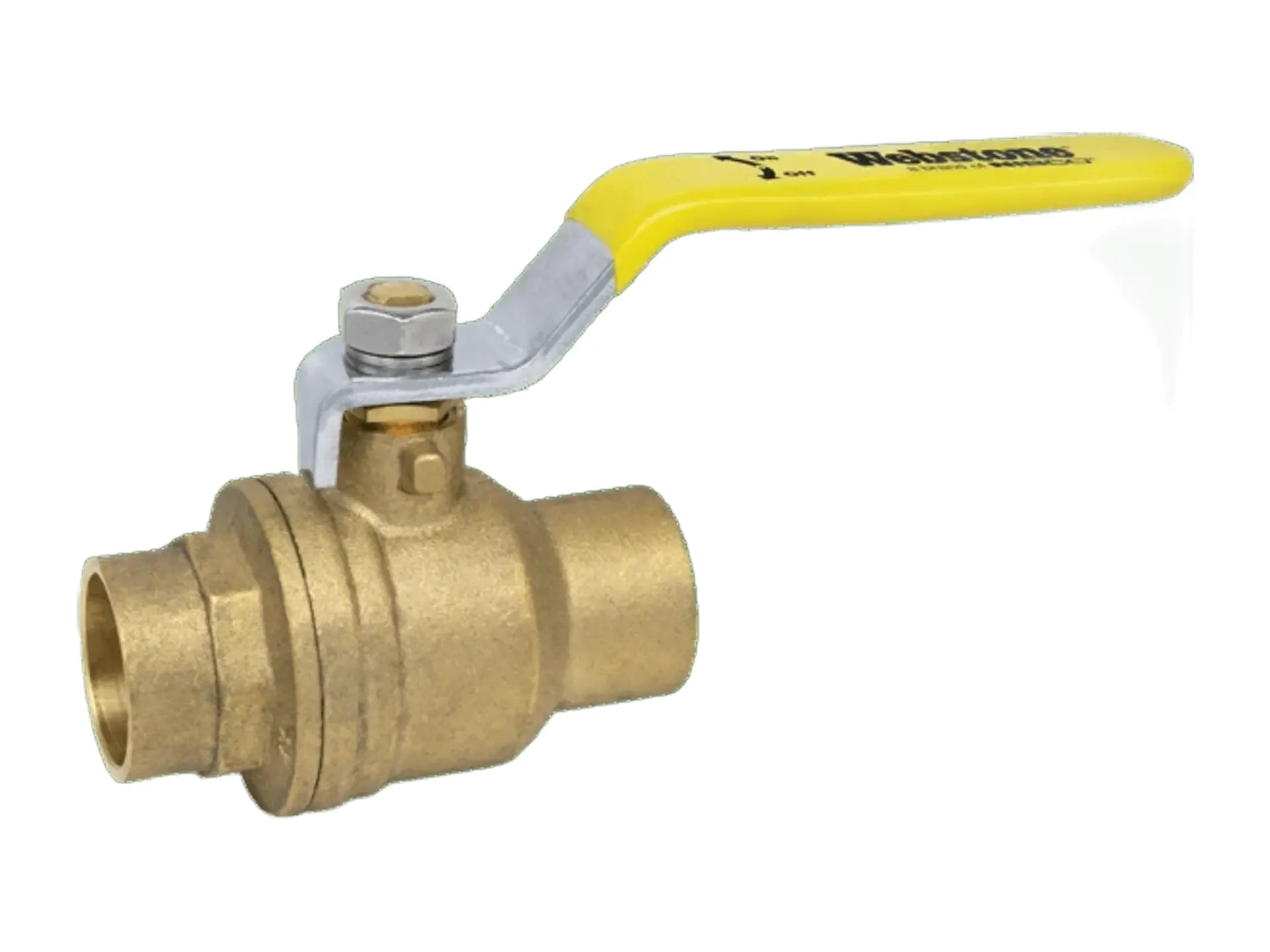

The Webstone H-50702W is a full port forged brass ball valve designed for versatile use in gas, oil, and water systems. This valve features a half-inch solder connection and a quarter-turn lever handle for easy operation.

• Full port design for optimal flow.
• Features a quarter-turn lever handle actuator.
• Adjustable packing gland for maintenance.

Product Highlights

This traditional ball valve is intended for both residential and commercial plumbing applications, providing reliable control of fluid flow.

Product Information

Standard Information

• Manufacturer: Webstone
• Part Number: H-50702W

Technical Specifications

• Actuator Type: Quarter Turn Lever Handle
• Ball Material: Lead-Free DZR Brass
• Body Material: Lead-Free DZR Brass
• End Style: SWT
• Media: Gas/Oil/Water
• Nominal Size: 1/2 in
• Orifice Size: 0.59 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: H-X170
• Softgoods Material: PTFE
• Temperature Rating: 200 deg F
• Trim Material: Brass Stem/PTFE Ball Seat
• Type: Traditional
• Model: SWT-X070W
• UPC: 018394023802
• System Use: Residential Plumbing, Commercial Plumbing, Heating
• Potable Water Code: LL Compliant NSF/ANSI 372
• Type of Item: Valve
• Nominal Pipe Size: 1/2 in
• Type of Valve: Ball Valve
• Valve End Connection Type: SWT
• Max Temperature: 200 F
• Valve Pressure Rating (WBS): 600 psi CWP Max
• Length: 4.74 in
• Width: 2.42 in
• Height: 1.28 in
