Webstone H-50702 ball valve traditional 1/2 inches 600 psi cwp max swt

Product Description

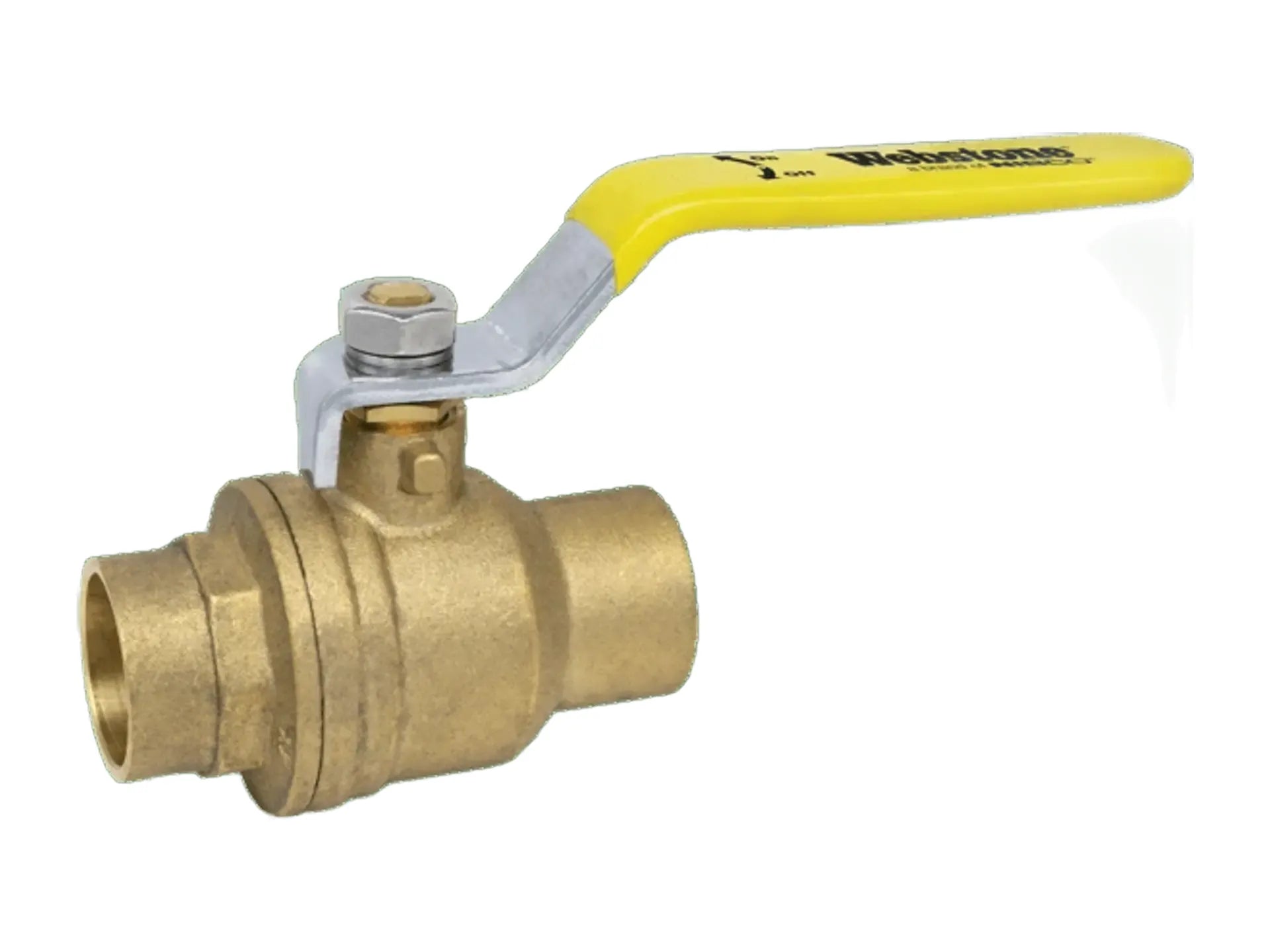

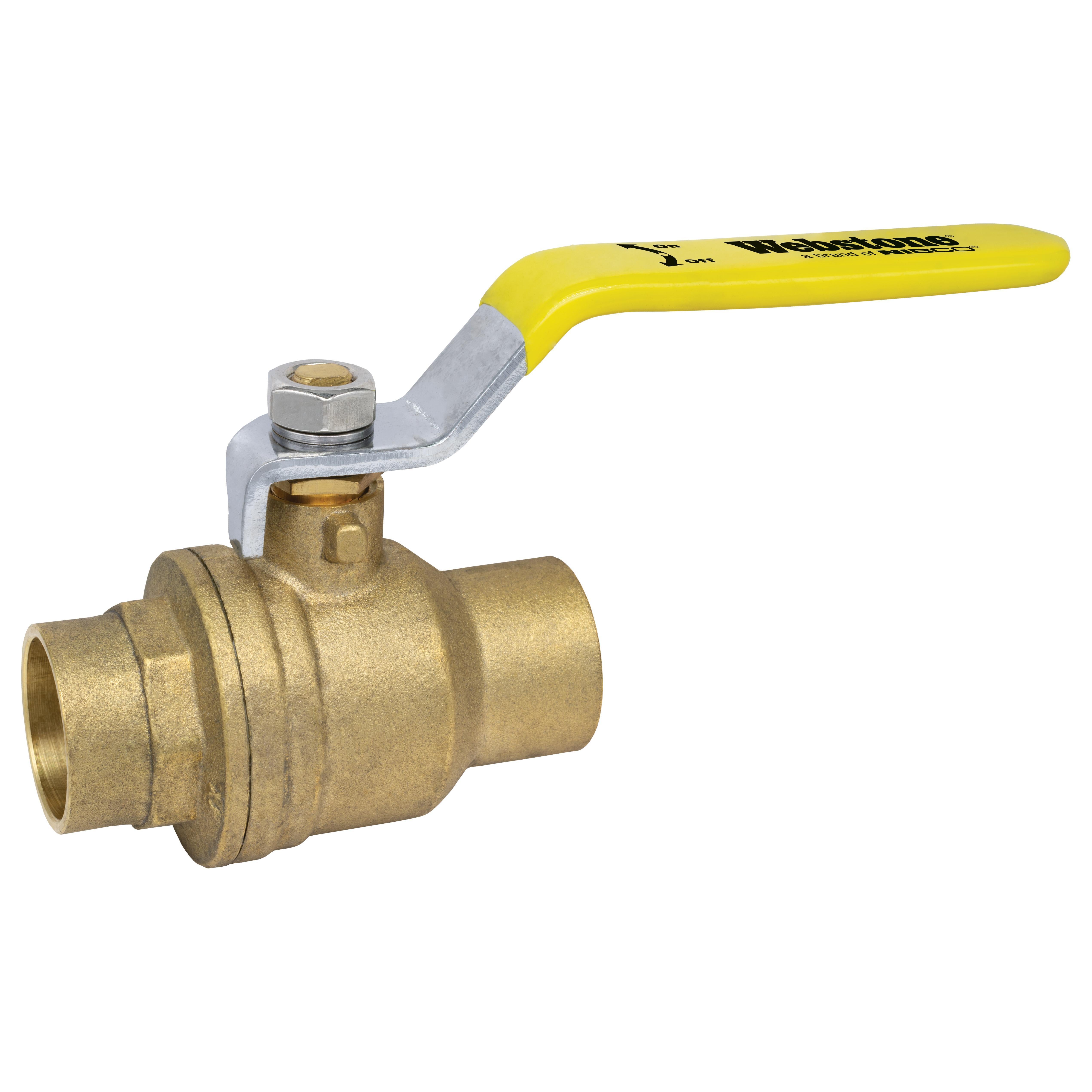

The WEBSTONE H-50702 is a traditional full port forged brass ball valve with an adjustable packing gland. This 1/2 inch SWT valve is rated for 600 psi pressure and 200 deg F, suitable for gas, oil, and water media. It features a 0.59 inch orifice and a quarter-turn lever handle actuator for flow control. The valve has a brass stem with PTFE ball seat trim and PTFE softgoods.

• Ball valve with integral spring check saves labor, space, and leak paths
• Models available to satisfy all state and federal low-lead laws
• Certified to NSF/ANSI 61 & 372

Product Highlights

Full port forged brass ball valve with adjustable packing gland and quarter-turn lever handle for efficient flow control.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-50702
• Country of Origin: Import

Technical Specifications

• Actuator Type: Quarter Turn Lever Handle
• Ball Material: Brass
• Body Material: Brass
• End Style: SWT
• Media: Gas/Oil/Water
• Nominal Size: 1/2 in
• Orifice Size: 0.59 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: H-X170
• Softgoods Material: PTFE
• Temperature Rating: 200 deg F
• Trim Material: Brass Stem/PTFE Ball Seat
• Type: Traditional
