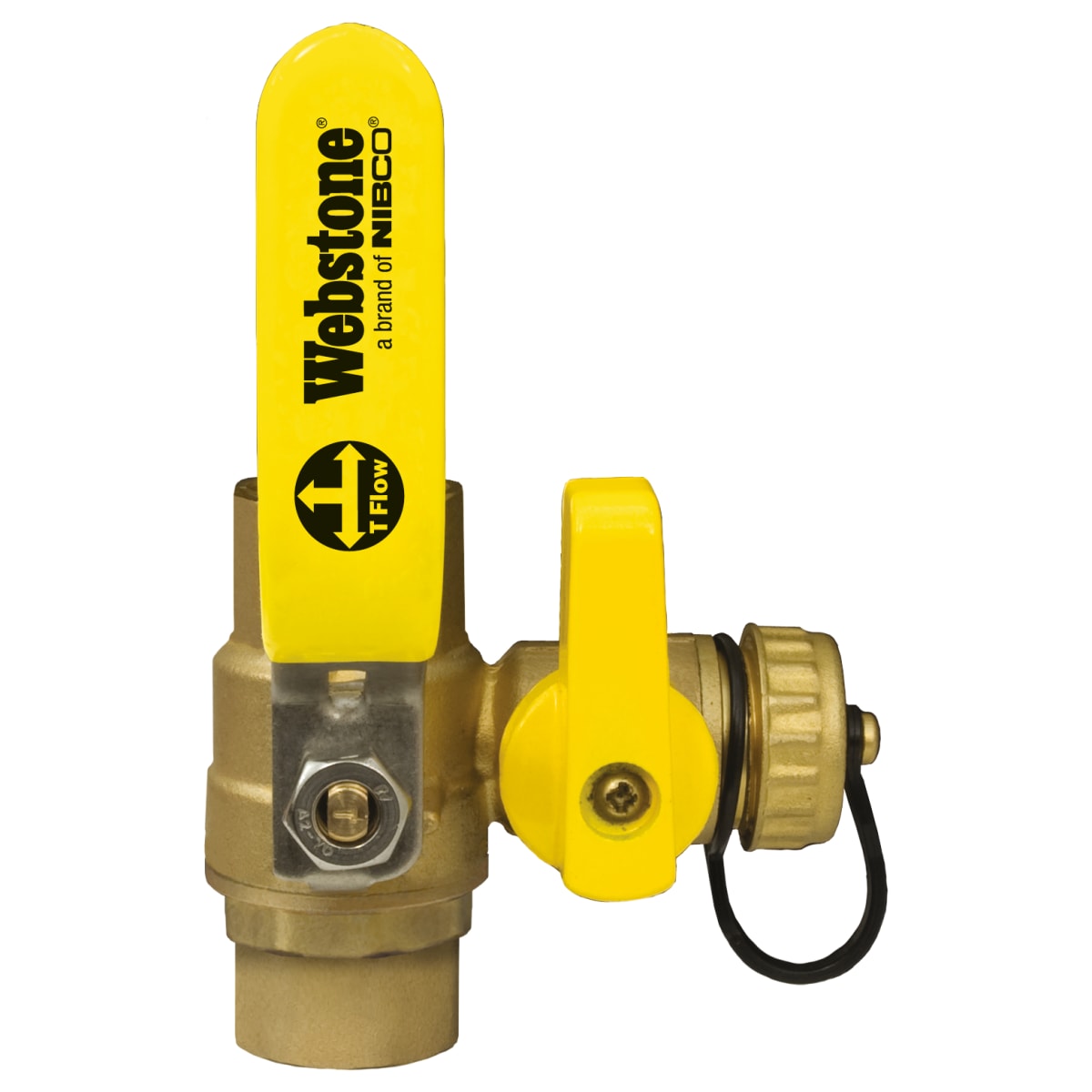

Webstone H-50616W 1-1/2 SWT Lead-Free Pro-Pal Ball Drain Full Port Forged Brass Ball Valve with Hi-Flow Hose Drain

Product Description

The Webstone H-50616W is a 1-1/2 inch sweat ball valve designed for residential and commercial plumbing and heating systems. This lead-free ball valve features a forged brass construction for durability and efficiency in installation. It incorporates a hi-flow hose drain and an adjustable packing gland for enhanced performance.

• Eliminates assembly needed to isolate and drain any portion of a piped system.
• Reversible handle for added versatility.
• Reduces installation time by replacing multiple components.

Product Highlights

The Pro-Pal series valves help control costs and facilitate effective system operation. With design elements that save time and space, they are ideal for managing water, oil, and glycol mixtures.

Product Information

Standard Information

• Brand: Webstone
• Part Number: WEBS-H-50616W

Technical Specifications

• Material: Brass
• Connection Type: Sweat x Sweat
• Connection Size: 1-1/2 inches
• Pressure Rating: 600 PSI CWP Max
• Temperature Rating Max: 250 F Max
• Application: Lead-Free
• Certified Standards: NSF/ANSI/CAN 61 & 372, NSF/ANSI 14
