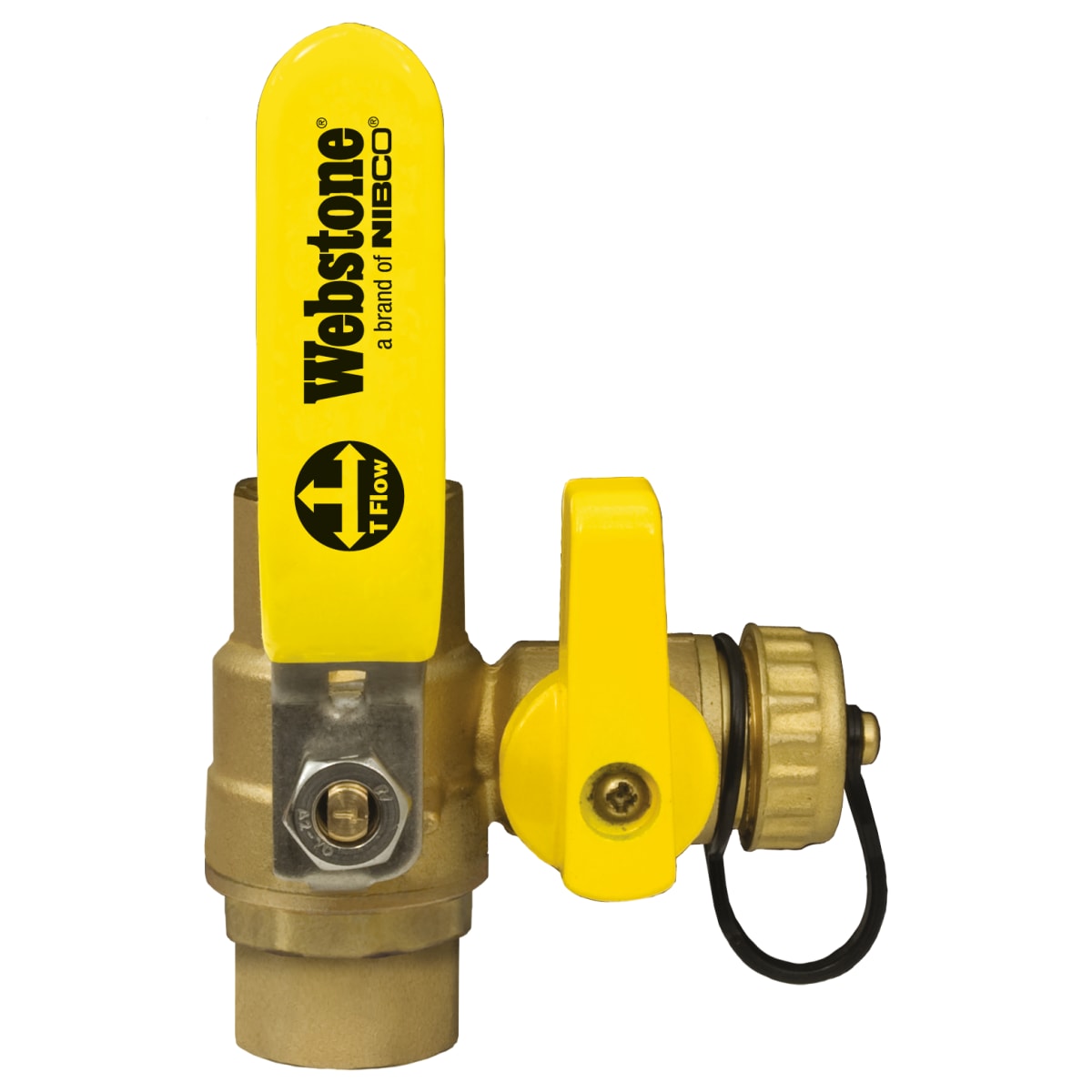

Webstone H-50613 3/4 SWT Non-Potable Pro-Pal Ball Drain Full Port Forged Brass Ball Valve

Brand: WEBSTONE
SKU: H-50613
Availability: In Stock
truck-svgrepo-com

Ships in 1-2 business days

$46.97
$46.97
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Webstone H-50613 is a 3/4 inch sweat ball valve designed for efficient fluid control in plumbing systems. This forged brass ball valve features a hi-flow hose drain and a reversible handle, making it suitable for both residential and commercial applications. It's ideal for use with water, oil, and glycol mixtures.

  • Eliminates assembly needed to isolate and drain any portion of a piped system
  • Reversible handle for added versatility
  • Exclusive adjustable flow path allows for draining from either side of the ball

Product Highlights

This valve saves installation time and reduces the number of components needed for a piping system.

Product Information

Standard Information

  • Brand: Webstone
  • MPN: H-50613

Technical Specifications

  • Material: Brass
  • Connection Size: 3/4 inch
  • Connection Type: Sweat x Sweat
  • Pressure Rating: 600 PSI CWP Maximum
  • Temperature Rating Max: 250 F Max
  • Dimensions: 8.9 inches L x 4.7 inches W x 5 inches H
  • Inlet to Outlet Length: 2.88 inches
  • Top to Inlet Center: 2.06 inches
  • Media: Glycol Mixture/Oil/Water
  • Series: 5061
  • Trim Material: Brass/PTFE
  • Softgoods Material: EPDM/PTFE
  • Domestic/Import: Import
