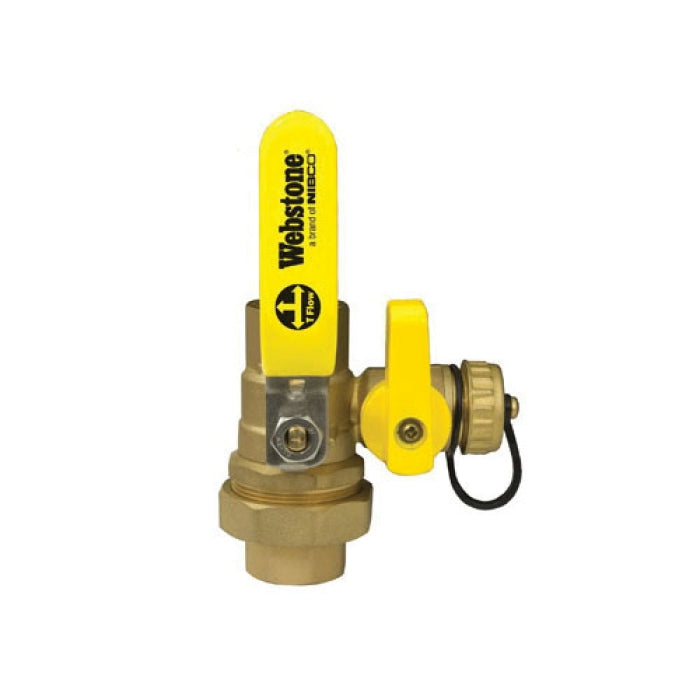

Webstone H-50435 Standard Ball Valve With Single Union End 1-1/4 in

Product Description

The Webstone H-50435 is a standard ball valve designed for efficient plumbing installations. This valve features a single union end connection, perfect for maintaining high flow with low pressure loss. It is built with a forged brass body and is suitable for water, oil, and glycol mixtures.

• Ball Drain™ technology for effective draining
• Lever handle actuator for easy operation
• Designed to eliminate multiple assembly connections

Product Highlights

This valve is designed for maximum utility in residential and commercial plumbing applications.

Product Information

Standard Information

• Brand: Webstone
• Manufacturer: NIBCO Inc.

Technical Specifications

• MPN: H-50435
• Nominal Size: 1-1/4 inches
• End Style: FNPT Union x C
• Pressure Rating: 600 psi CWP
• Temperature Rating: 250 degrees F
• Media: Glycol Mixture/Oil/Water
• Actuator Type: Lever Handle
• Body Material: Forged Brass
• Softgoods Material: EPDM/PTFE
• Inlet to Outlet Length: 4-1/2 inches
