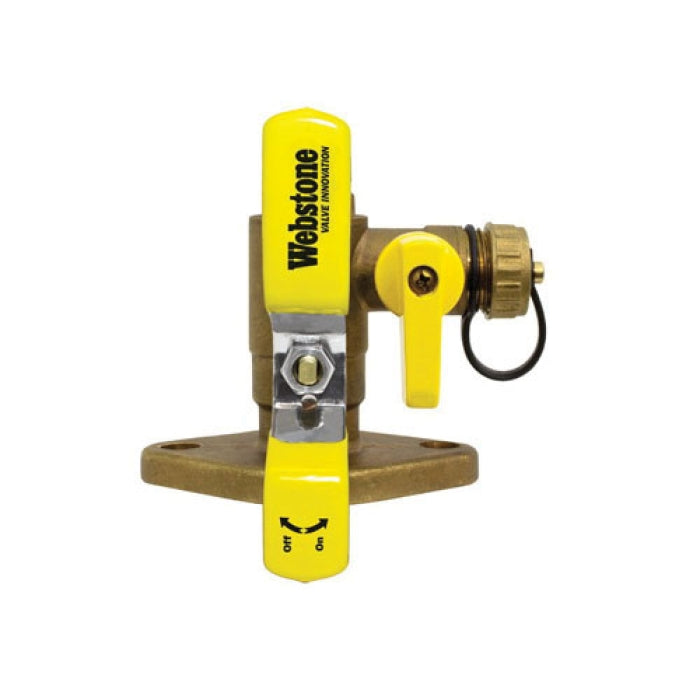

Webstone H-50415 1-1/4 SWT x Flange Non-Potable Isolator w/ Drain, Full Port Forged Brass Uni-Flange Ball Valve, w/ Hi-Flow Hose Drain, Adjustable Packing Glands, Nuts & Bolts

Product Description

The Webstone H-50415 is a uni-flange ball valve designed to isolate a circulator pump. This valve minimizes air intake during pump service, enhancing system efficiency. Its forged brass body combines multiple components, streamlining installation and maintenance. This isolator is suited for water, oil, and glycol mixtures in both residential and commercial heating systems. It is backed by a limited lifetime warranty.

• Easily isolates the pump for replacement.
• Prevents electrolysis and eliminates galvanic corrosion.
• Flange features a conical inlet to minimize turbulence.

Product Highlights

The unique drain feature allows operation from either side of the pump. It is compatible with various standard circulator pumps, optimizing time and reducing leak paths.

Product Information

Standard Information

• Category: Heating > Hydronic Pumps > Pump Flanges & Accessories
• Brand: Webstone

Technical Specifications

• Size: 1-1/4 inches
• Type: Isolator Fixed Flange with Drain
• Material: Brass
• Application: Non-Potable
• Connection Size: 1-1/4 inches
• Connection Type: SWT x Flange
• Pressure Rating: 600 PSI CWP Max
