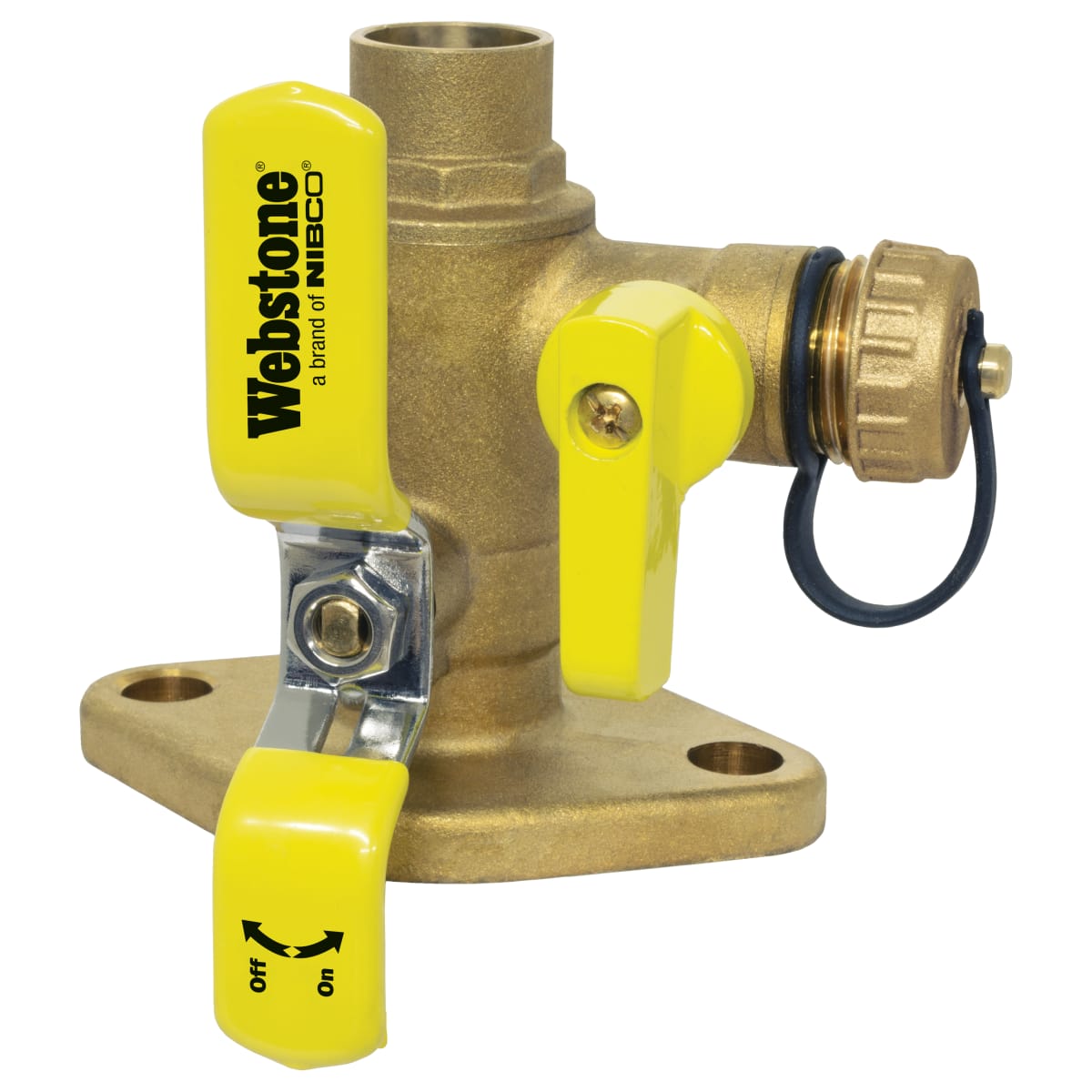

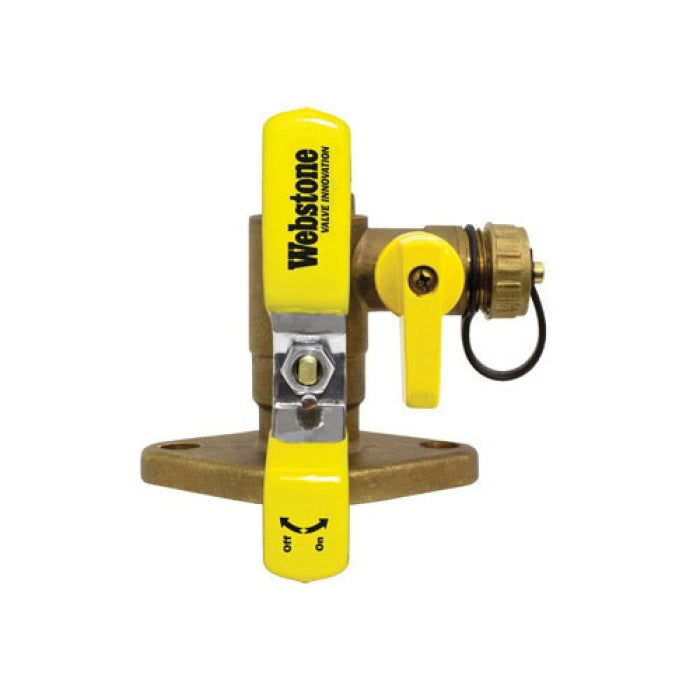

Webstone H-50414 1 SWT x Flange Non-Potable Isolator w/ Drain

Product Description

The Webstone H-50414 is a uni-flange ball valve that isolates a circulator pump. It allows minimal air intake during pump replacement or service. The innovative design merges multiple components into a single forged brass body, saving time and labor. The H-50414 has changed how circulator pumps are installed, becoming the largest flanged ball valve program in the industry.

• Isolates the pump easily for replacements
• Prevents electrolysis and eliminates galvanic corrosion
• Flange features a conical inlet to minimize turbulence

Product Highlights

This valve is designed for residential and commercial plumbing and heating systems using water, oil, or glycol mixtures. Refer to the specification sheets for further technical information. All Webstone products come with a limited lifetime warranty.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-50414

Technical Specifications

• Size: 1 inch
• Type: Isolator Fixed Flange With Drain
• Material: Brass
• Connection Size: 1 inch
• Connection Type: SWT x Flange
• Pressure Rating: 600 PSI CWP Max
• Application: Non-Potable
