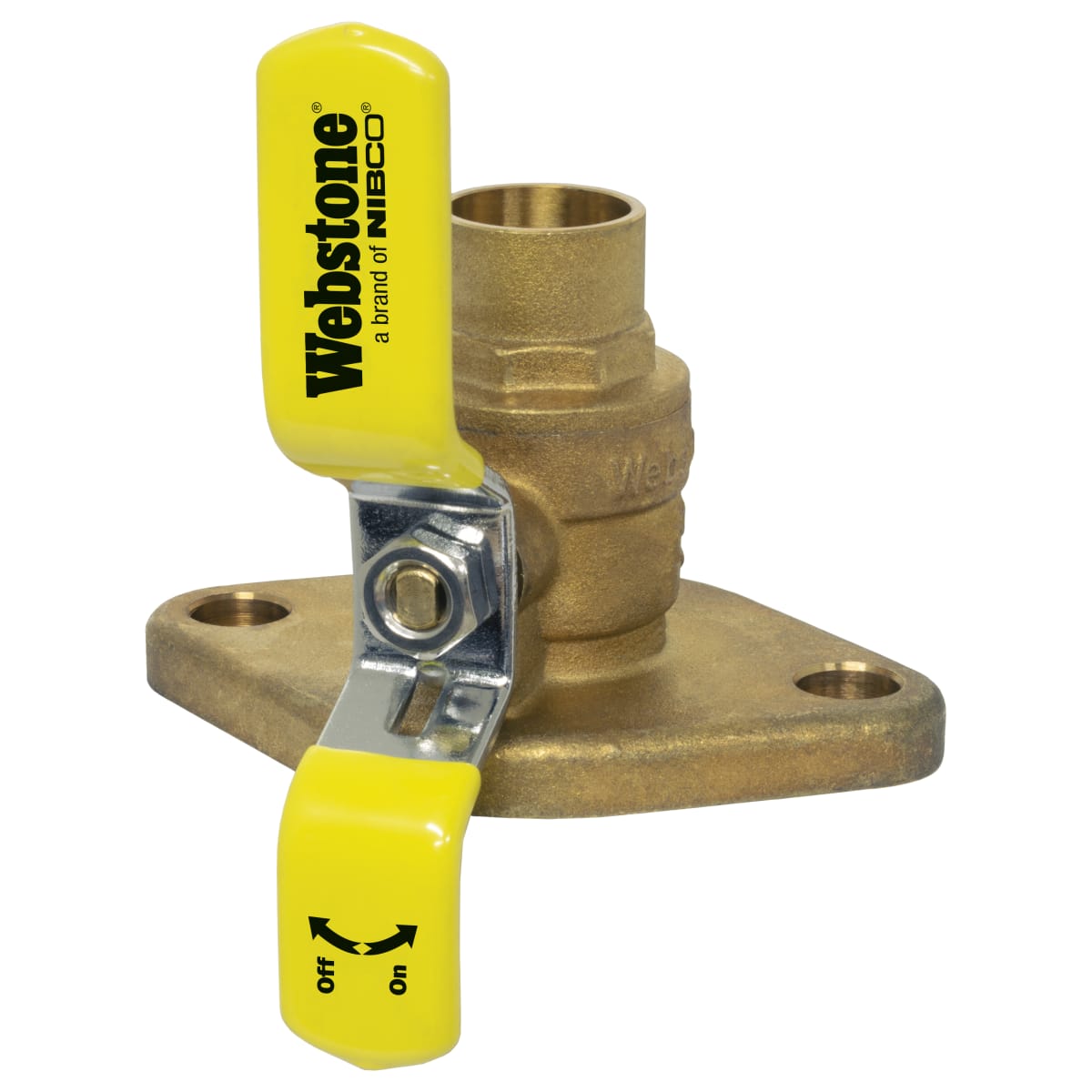

Webstone H-50406 1-1/2 SWT x Flange Non-Potable Isolator Uni-Flange Ball Valve

Product Description

The Webstone H-50406 is a uni-flange ball valve designed to isolate a circulator pump. This valve minimizes air entry during pump replacement and servicing. The innovative construction merges multiple components into one forged brass body, effectively reducing installation time and labor costs. The H-50406 has transformed circulator pump installations and represents one of the largest flanged ball valve lines available today, incorporating patented technology.

• Designed for water, oil, and glycol mixtures in plumbing and heating applications
• Eliminates air entry and provides efficient pump isolation
• Integrates multiple functions into a single unit for space saving

Product Highlights

The valve features an adjustable packing gland and is certified to NSF/ANSI 61 standards, ensuring high quality and safety for use in non-potable systems.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-50406

Technical Specifications

• Material: Brass
• Type: Isolator Fixed Flange No Drain
• Connection Size: 1-1/2 inches
• Connection Type: SWT x Flange
• Pressure Rating: 600 PSI CWP Max
• Application: Non-Potable
• Temperature Rating: 100 degrees Fahrenheit
• Inlet to Outlet Length: 4-3/8 inches
