Product Description

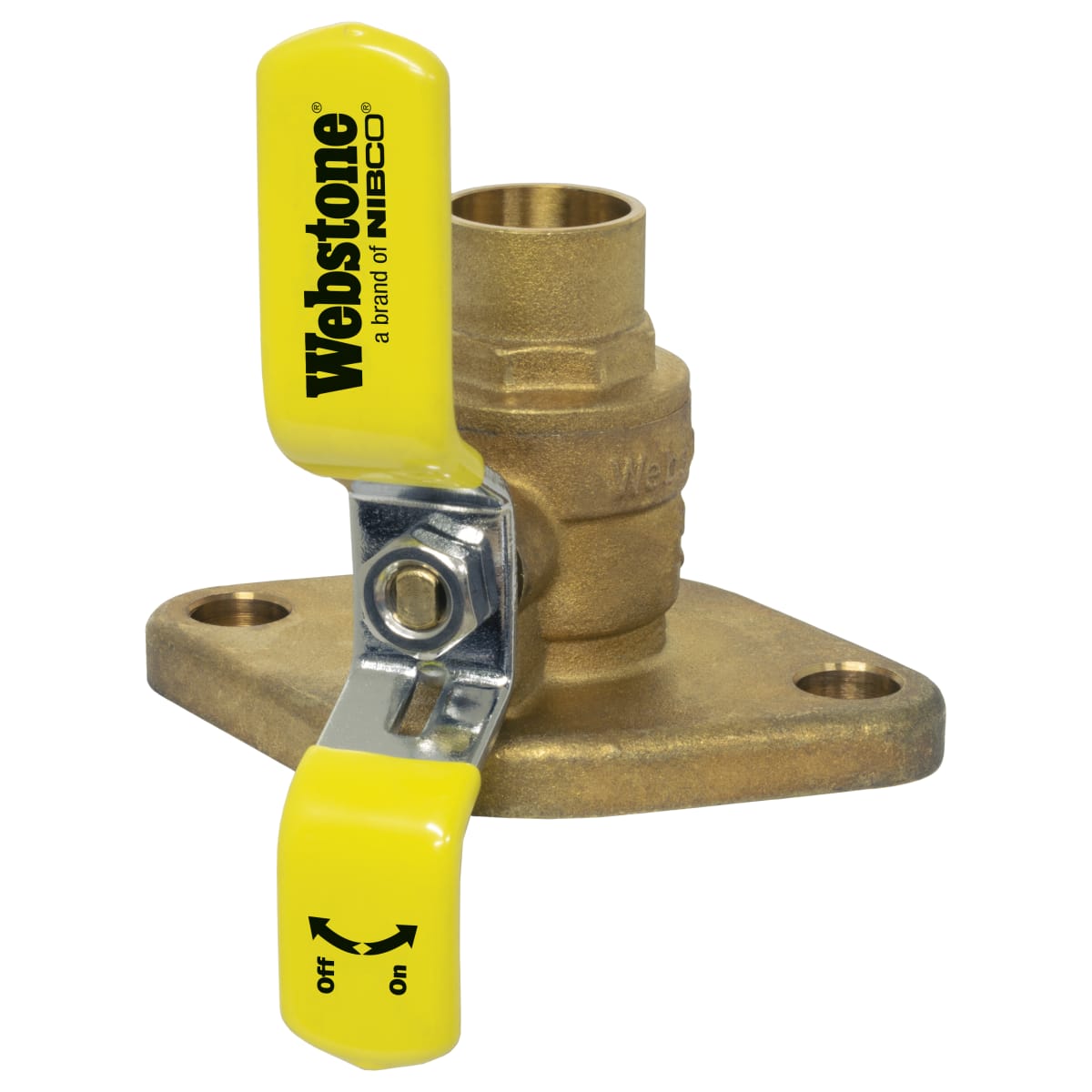

The Webstone H-50405HV is a uni-flange ball valve designed to isolate a circulator pump. This valve allows for minimal air introduction during pump service or replacement. Its design combines several components into a single forged brass body, facilitating installation and reducing labor time.
- Easily isolates pump for replacement
- Prevents electrolysis and galvanic corrosion
- Flange with conical inlet minimizes turbulence
Product Highlights
This valve supports water, oil, and glycol mixtures in various plumbing and heating systems. Webstone products are backed by a limited lifetime warranty.
Product Information
Standard Information
-
Brand: Webstone
-
MPN: H-50405HV
Technical Specifications
-
Size: 1-1/4 inches
-
Connection Type: SWT x Flange
-
Material: Brass
-
Pressure Rating: 600 PSI CWP Max
-
Application: Non-Potable
-
Temperature Rating: 100 degrees F
-
Inlet to Outlet Length: 3-1/8 inches
-
Nominal Size: 1-1/4 inches
-
Port Type: Full
-
Trim Material: Brass Stem and PTFE Seat
-
Top to Inlet Center: 2-13/16 inches
