Product Description

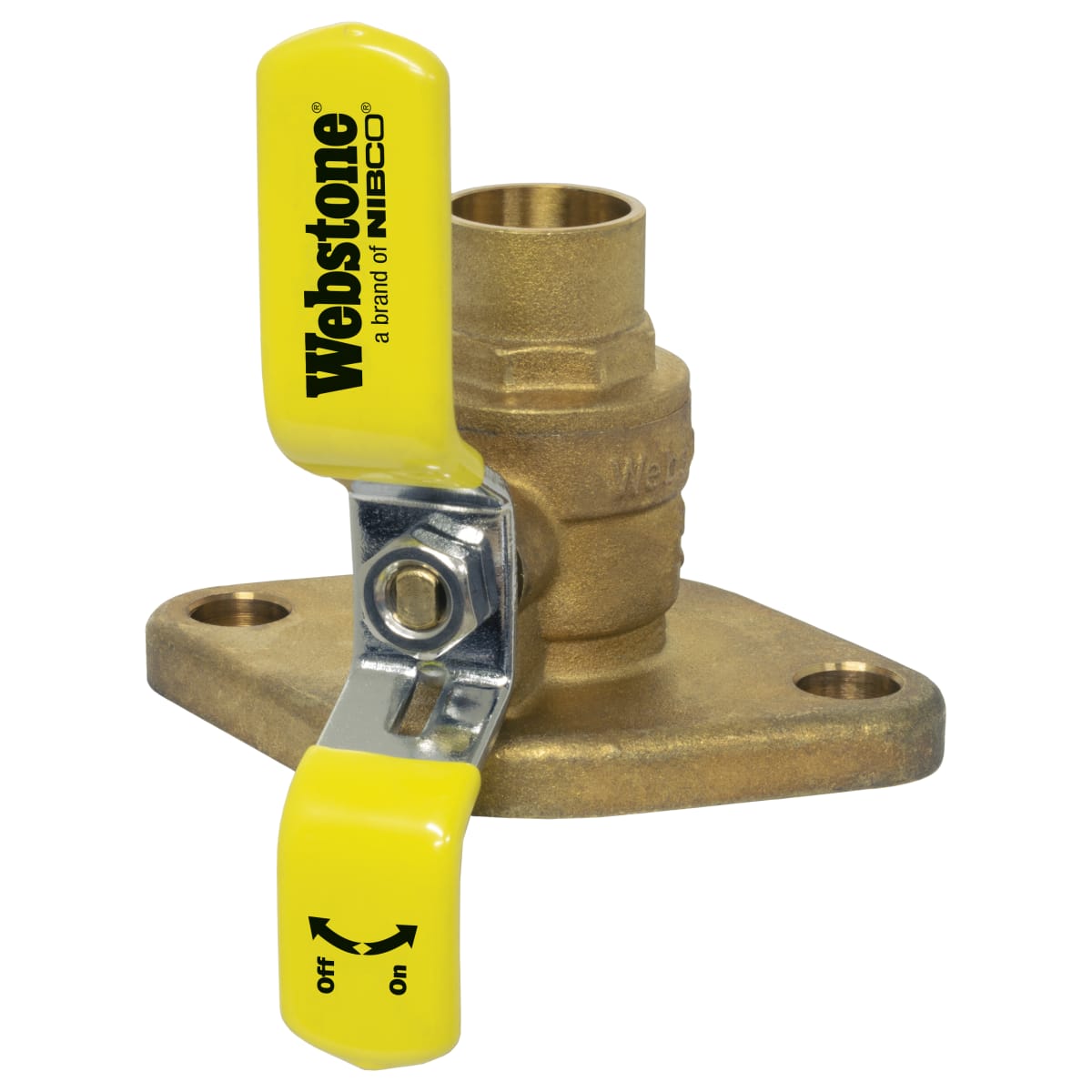

The Webstone H-50405 is a non-potable isolator uni-flange ball valve designed to streamline the installation and servicing of circulator pumps. Its single forged brass body minimizes air entry during pump replacement or service tasks. This unit features a full port design, which allows for maximum flow with minimal resistance.
- Easily isolates the pump for replacement
- Reduces electrolysis and eliminates galvanic corrosion
- Compatible with various standard circulator pumps
Product Highlights
This valve is engineered for use with water, oil, and glycol mixtures in both residential and commercial plumbing and heating systems. The innovative design has positioned it as a leader in the flanged ball valve market.
Product Information
Standard Information
-
Brand: Webstone
-
MPN: H-50405
Technical Specifications
-
Size: 1-1/4 inches
-
Type: Isolator Fixed Flange No Drain
-
Material: Brass
-
Application: Non-Potable
-
Connection Size: 1-1/4 inches
-
Connection Type: SWT x Flange
-
Pressure Rating: 600 PSI CWP Max
-
Temperature Rating: 100 degrees F
-
Orifice Size: 1-1/4 inches
-
Port Type: Full
