Product Description

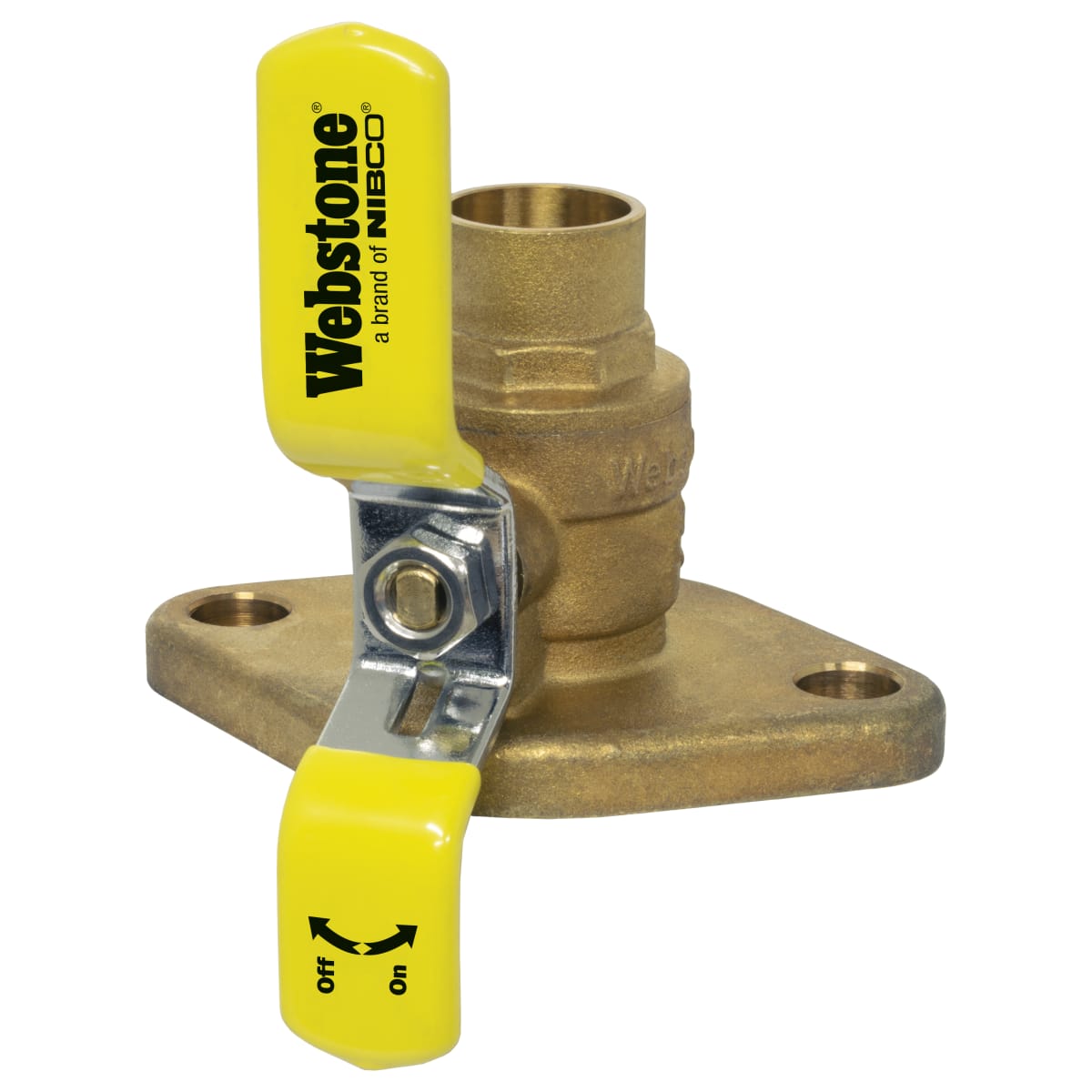

The Webstone H-50404HV is a uni-flange ball valve designed to isolate circulator pumps, minimizing the introduction of air to the system during maintenance. This ball valve features a single forged brass body, which simplifies installation and saves time and space.
- Easily isolates the pump for replacement.
- Prevents electrolysis and eliminates galvanic corrosion.
- Flange features a conical inlet to minimize turbulence.
Product Highlights
This product is ideal for both residential and commercial applications, handling water, oil, and glycol mixtures. It is backed by a limited lifetime warranty, ensuring reliability and longevity.
Product Information
Standard Information
-
Brand: Webstone
-
MPN: H-50404HV
Technical Specifications
-
Nominal Size: 1 inch
-
Connection Size: 1 inch
-
Connection Type: SWT x Flange
-
Pressure Rating: 600 PSI CWP Max
-
Body Material: Brass
-
Softgoods Material: PTFE
-
Temperature Rating: 100 degrees F
-
Inlet to Outlet Length: 2-15/16 inches
-
Top to Inlet Center: 2-1/2 inches
-
Series: 5040
