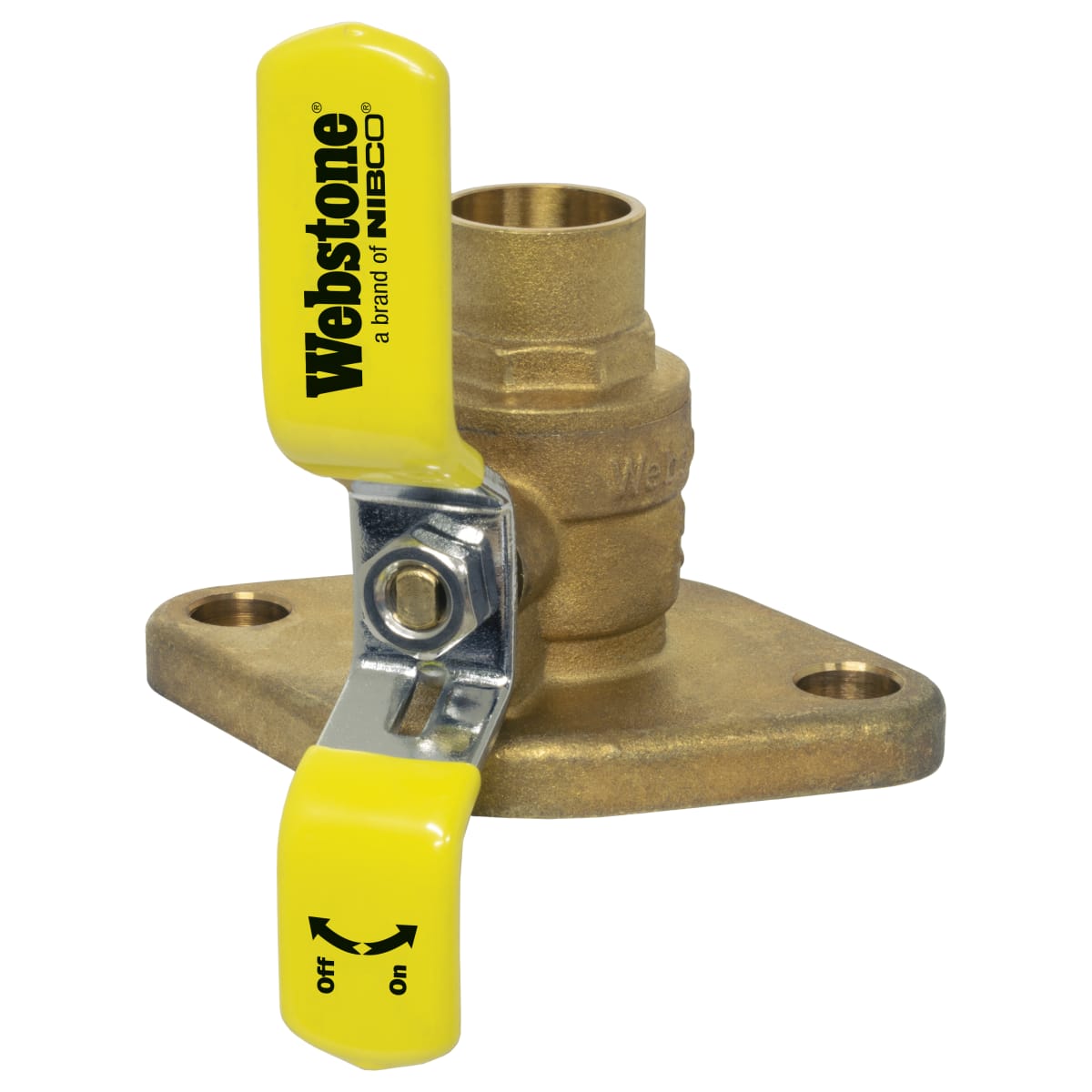

Webstone H-50404 1 SWT x Flange Non-Potable Isolator Uni-Flange Ball Valve

Product Description

The Webstone H-50404 is a uni-flange ball valve for isolating a circulator pump. It minimizes air ingress during pump service or replacement. This valve is made from a single forged brass body, which combines components for labor and space savings. It is designed for use with water, oil, or glycol in residential and commercial plumbing and heating applications. Webstone provides a limited lifetime warranty for this product.

• Easily isolates the pump for maintenance
• Prevents electrolysis and galvanic corrosion
• Compatible with various circulator pumps

Product Highlights

This valve simplifies pump replacements and increases system reliability.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-50404

Technical Specifications

• Size: 1 inch
• Type: Isolator Fixed Flange No Drain
• Material: Brass
• Application: Non-Potable
• Connection Size: 1 inch
• Connection Type: SWT x Flange
• Pressure Rating: 600 PSI CWP Max
• Temperature Rating: 100 deg F
• Inlet to Outlet Length: 2-15/16 inches
