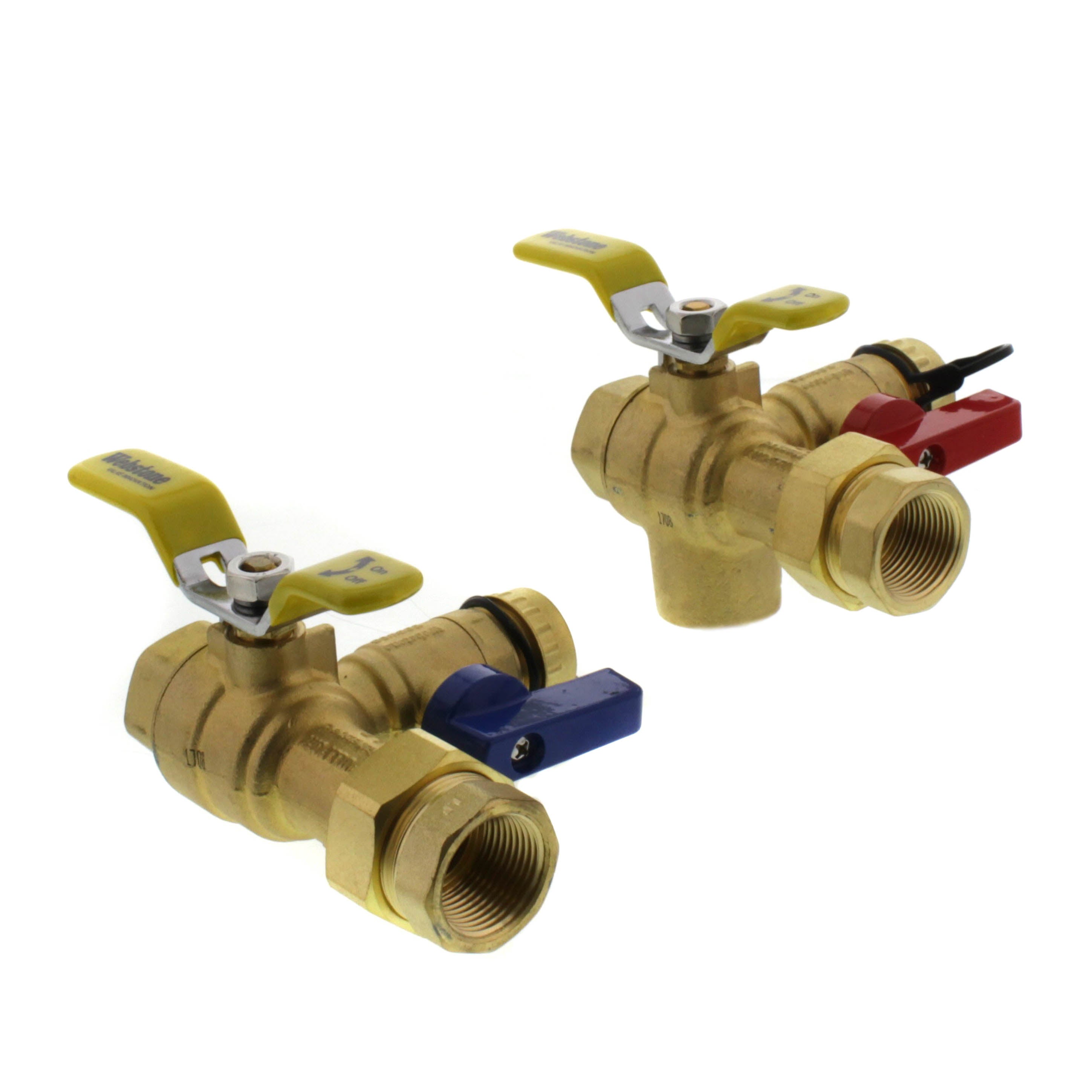

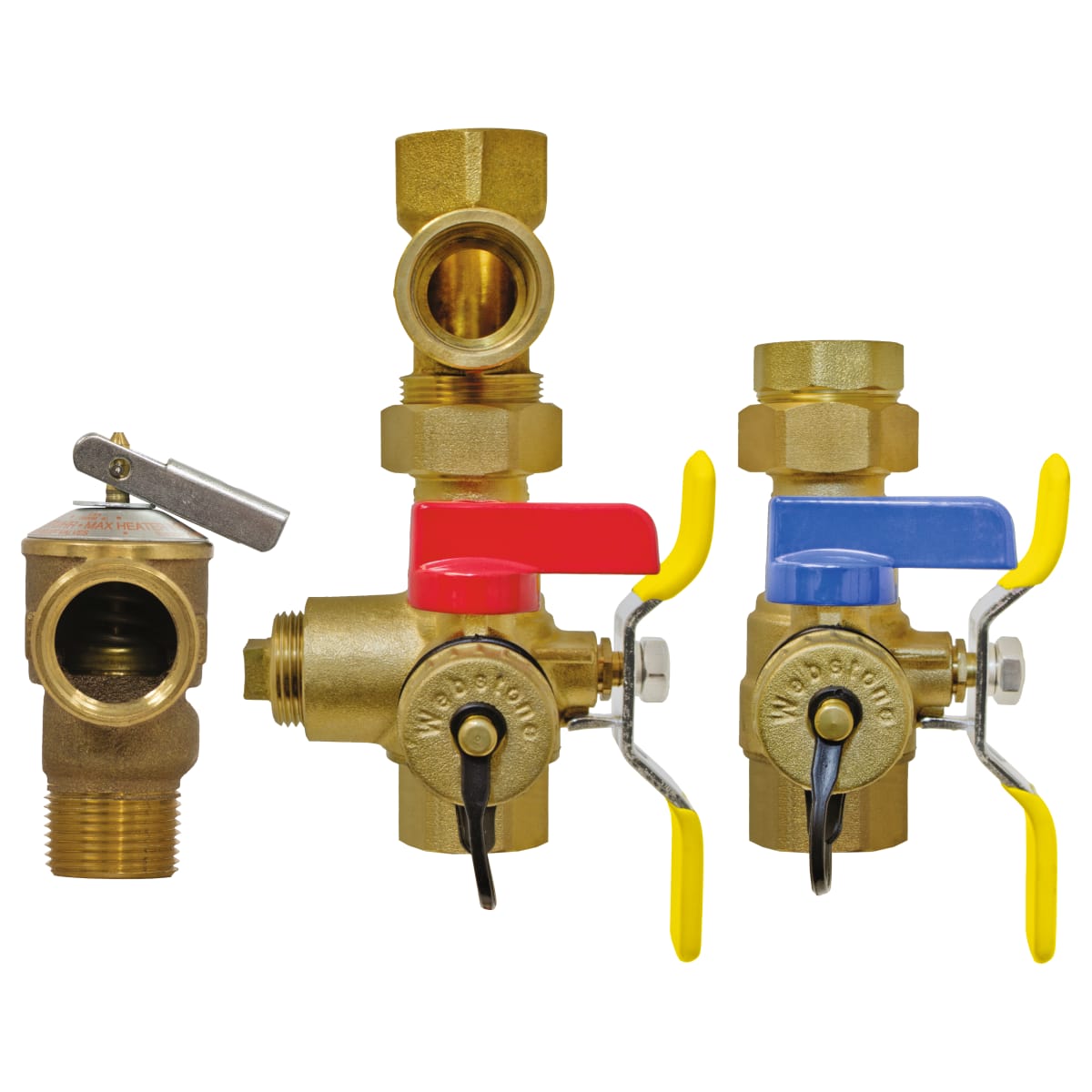

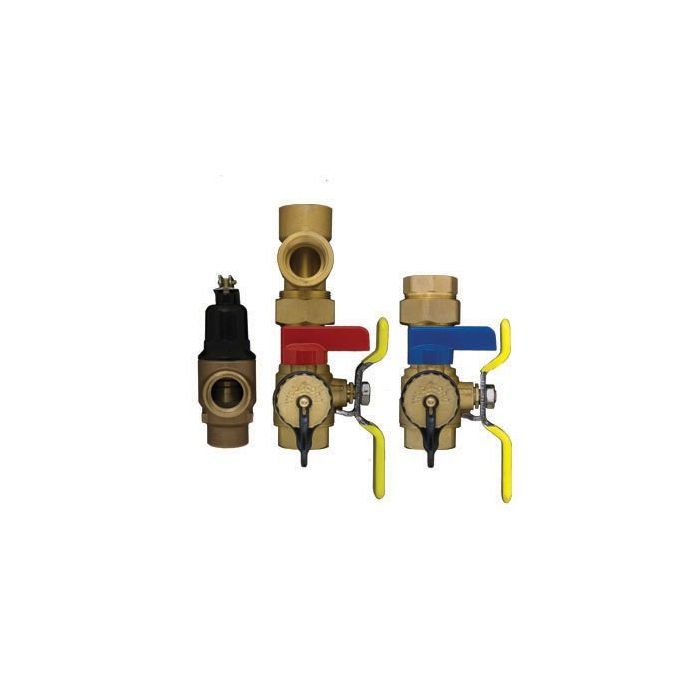

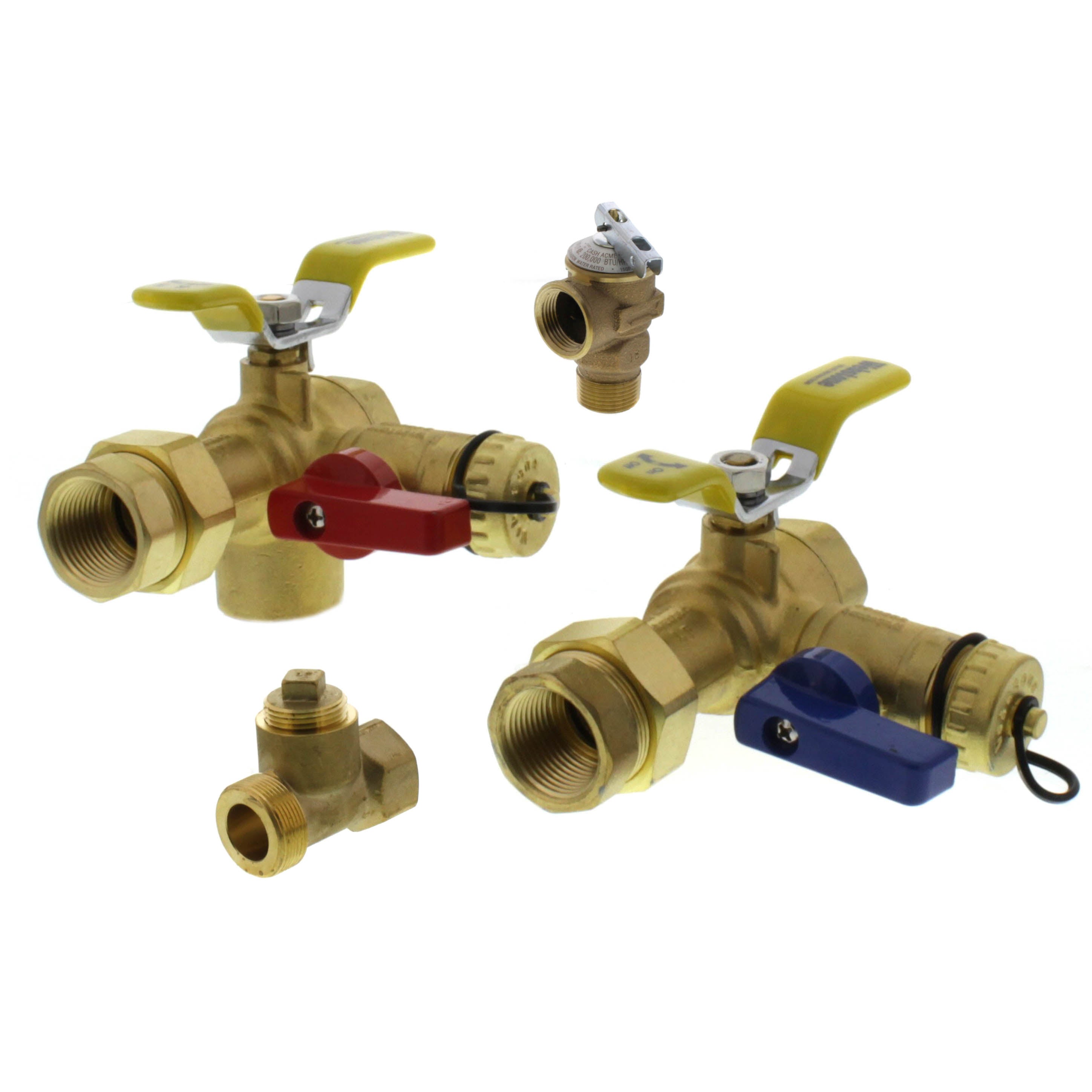

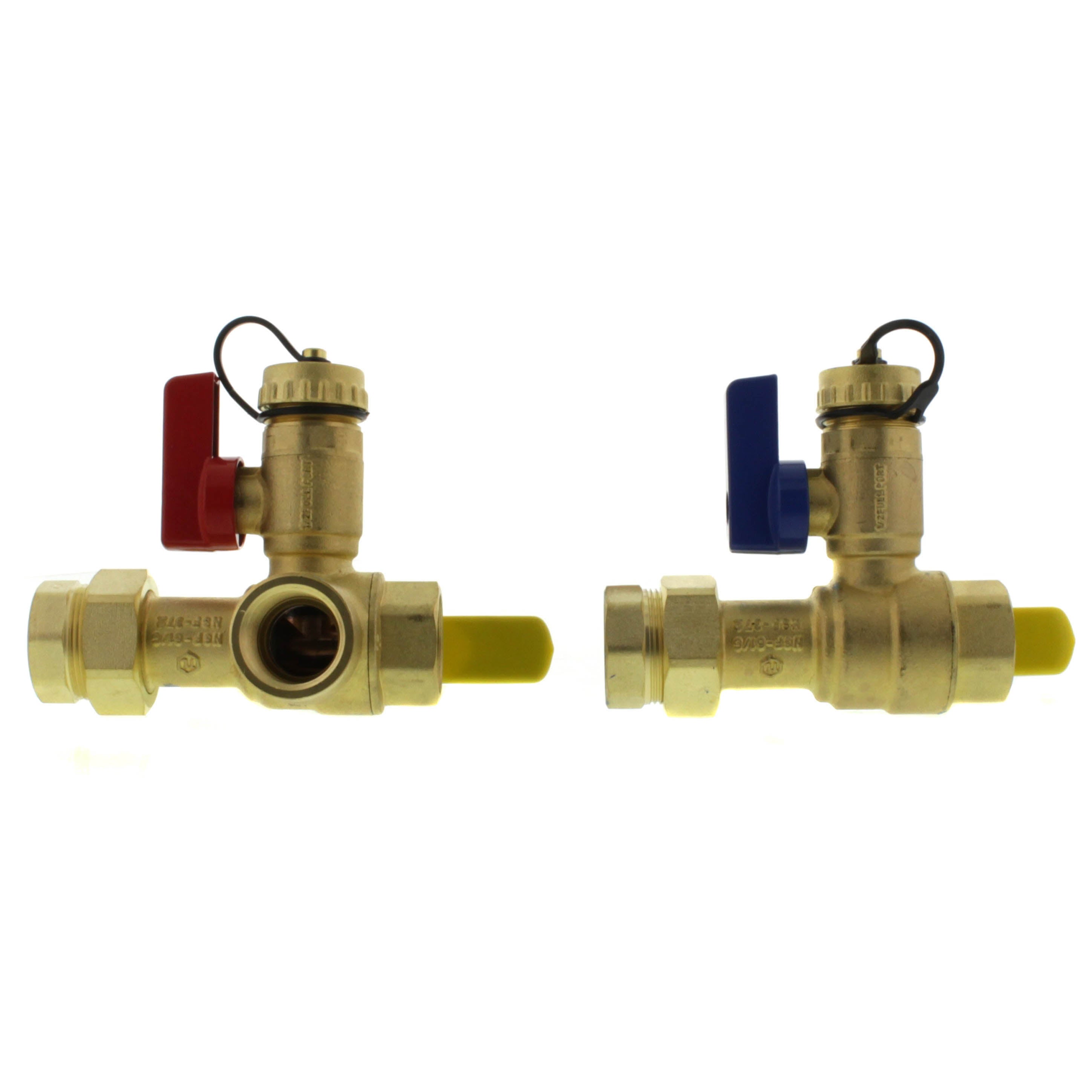

Webstone H-45443WPR Lead-Free E-X-P E3 Tankless Water Heater Service Valve Kit 150 PSI/500,000 BTU/HR 3/4 Inch FIP Union x FIP

Product Description

The WEBSTONE H-45443WPR E-X-P E3 Tankless Water Heater Service Valve Kit is designed for isolating tankless water heaters. These valves facilitate quicker, consistent quality installations with fewer leak paths, simplifying future maintenance. Constructed from brass, this 3/4 inch FIP Union x FIP kit is suitable for residential or commercial plumbing and heating systems using water, oil, or glycol mix, with a maximum temperature rating of 210°F.

• Facilitates quicker, consistent quality installations with fewer leak paths.
• Allows for easy cleaning or flushing of the system.
• Features color-coded drain handles and an adjustable packing gland.

Product Highlights

Designed for installations requiring special accommodations for the pressure relief valve, ensuring simplified maintenance.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-45443WPR
• Country of Origin: Imported

Technical Specifications

• Size: 3/4 Inch
• Type: Ball Valve - Combination
• Material: Brass
• Application: Lead-Free
• Connection Type: FIP Union x FIP
• Pressure Rating: 500 psi WOG
• Maximum Temperature Rating: 210°F
• Thread Type: Female
• Certifications: NSF/ANSI 61, NSF/ANSI 372
• Valve Operator: Wing Lever Handle
• Seat Material: PTFE
• Ball Material: Brass HCP
• Seal Material: PTFE
• Handle Nut Material: Stainless Steel
• Handle Material: Steel CP
• Handle Jacket Material: Vinyl
• Packing Gland Material: Brass
• Stem Seal Material: Brass
• End Cap Material: Brass
• Union Nut Material: Brass
• Retaining Ring Material: Stainless Steel
• Union Fitting Material: Brass
• Washer Material: EPDM
• Drain Valve Handle Material: Enamel Coated Aluminum
• Drain Valve Handle Screw Material: Brass
• Cap & Strap Material: Brass with EPDM Washer & Strap
• Relocation Adaptor Material (Hot): Brass
• Series: 4544
• Compatible Product: Tankless Water Heater/Boiler, Condensing Tankless Water Heater
• Compatible Brand: Rheem
• Style: Threaded
