Webstone H-41703 Full Port Ball Valve 3/4 IPS

Product Description

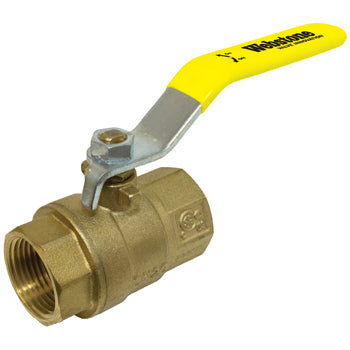

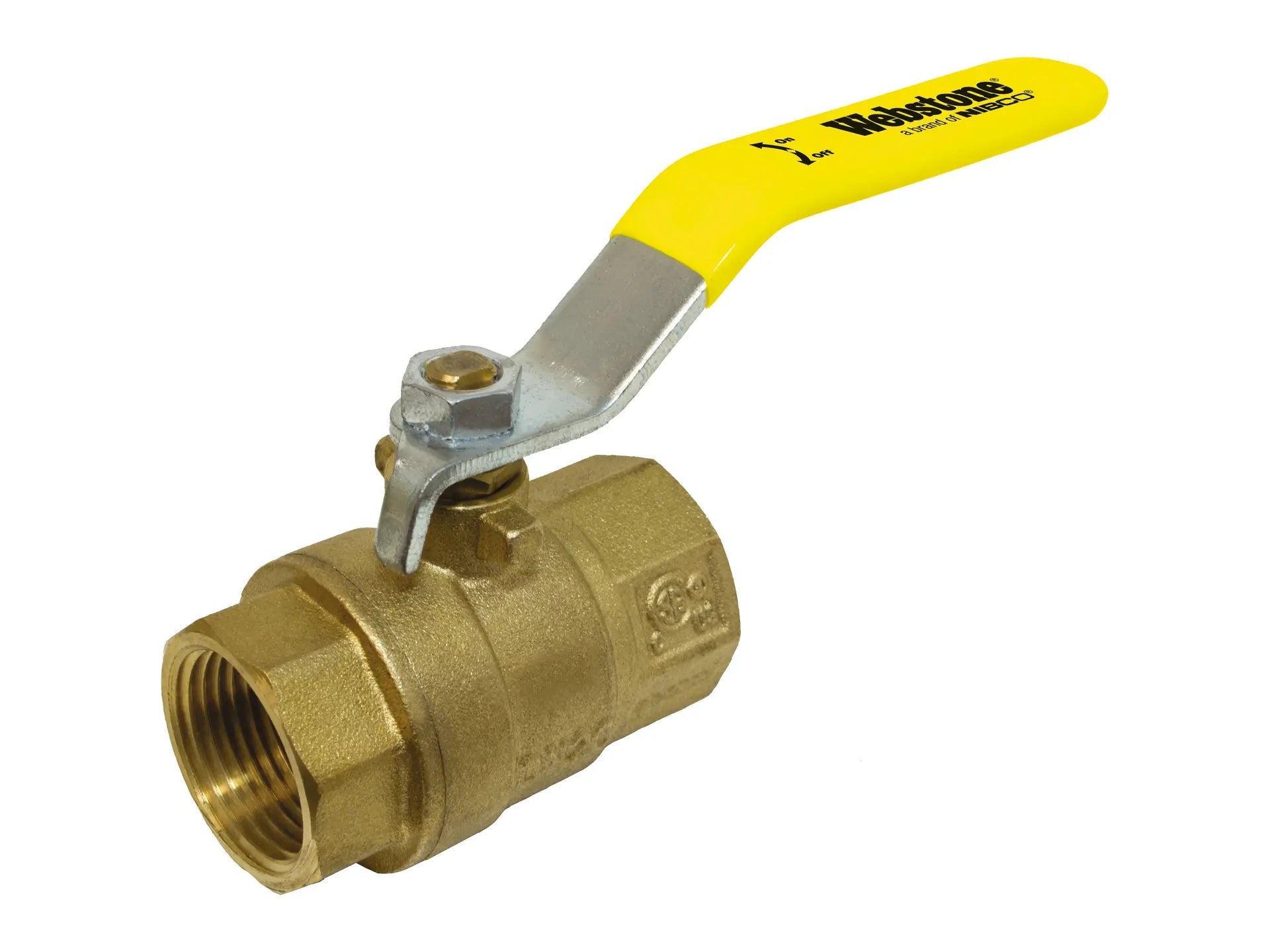

The WEBSTONE H-41703 is a 3/4 inch IPS full port brass ball valve designed for precise flow control in plumbing and heating systems. This quarter-turn valve features an integral spring check, optimizing installation by reducing labor, space, and potential leak paths. It includes an adjustable packing gland and supports multiple connection types like FIP, COMP, SWT, PRS, PEX, and PEX x FIP. Certified to NSF/ANSI/CAN 61 & 372, it is suitable for residential or commercial applications.

• Controls flow with a quarter-turn lever handle
• Features an integral spring check for optimized installation
• Supports multiple connection types including FIP, COMP, SWT, PRS, PEX, and PEX x FIP

Product Highlights

This full port brass ball valve offers efficient flow control and versatile connection options for various plumbing and heating applications.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-41703
• Country of Origin: China

Technical Specifications

• Brand: WEBSTONE
• MPN: H-41703
• Condition: New
• Material: Brass
• Port Type: Full Port
• Connection Types: FIP, COMP, SWT, PRS, PEX, PEX x FIP
• Certifications: NSF/ANSI/CAN 61 & 372
• Standards: ANSI Z21.15, NSF/ANSI 61-8, NSF/ANSI 14, CSA 9.1
• Lead Compliance: P65-Lead
• Model: THD-X170
• Series: H-X170
• Valve Type: Ball
• Nominal Pipe Size: 3/4" x 3/4"
• Potable Water Code: Not LL Comp not intend potable
• UPC: 018394417038
• Country of Origin: CN
