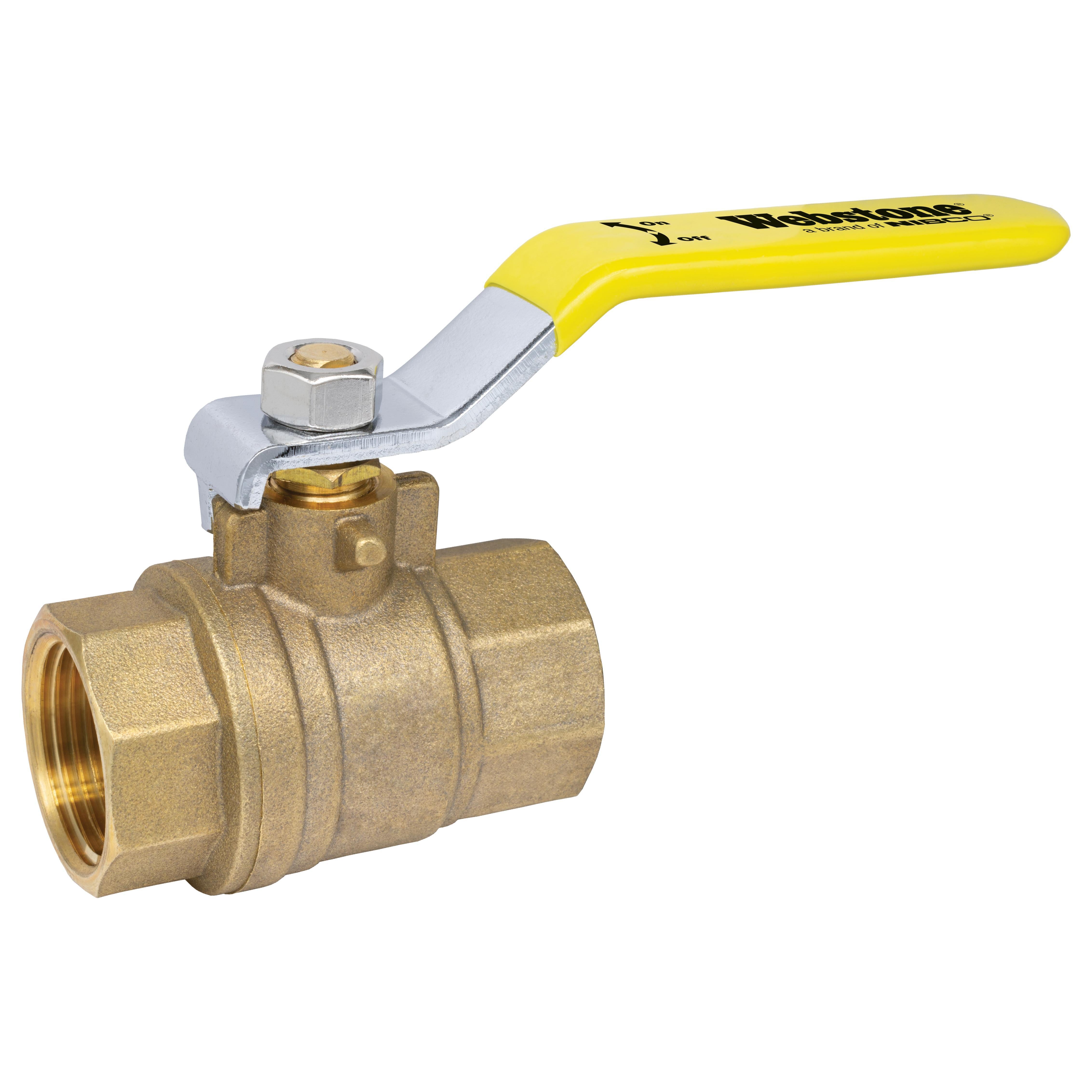

Webstone H-41702 Traditional Ball Valve 1/2 in

Product Description

The WEBSTONE H-41702 is a Traditional Ball Valve designed for controlling flow in residential or commercial plumbing and heating systems. This full port valve features a 1/2 inch FIP nominal size and a 0.58 inch orifice, capable of handling gas, oil, and water media. It operates with a quarter-turn lever handle and is rated for 600 psi pressure and temperatures up to 200 deg F. The valve's body and ball are made of brass, with PTFE softgoods for reliable sealing.

• Ball valve with integral spring check saves labor, space, and leak paths
• Models available to satisfy all state and federal low-lead laws
• Available in FIP, COMP, SWT, PRS, PEX, PEX x FIP

Product Highlights

This import Traditional Ball Valve features a brass body, full port design, and PTFE softgoods, ensuring durable and efficient flow control.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-41702

Technical Specifications

• Actuator Type: Quarter Turn Lever Handle
• Ball Material: Brass
• Body Material: Brass
• Domestic/Import: Import
• End Style: FIP
• Inlet to Outlet Length: 2.05 in
• Media: Gas/Oil/Water
• Nominal Size: 1/2 in
• Orifice Size: 0.58 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: H-X170
• Softgoods Material: PTFE
• Temperature Rating: 200 deg F
• Top to Inlet Center: 1.94 in
• Trim Material: Brass Stem/PTFE Ball Seat
• Type: Traditional
