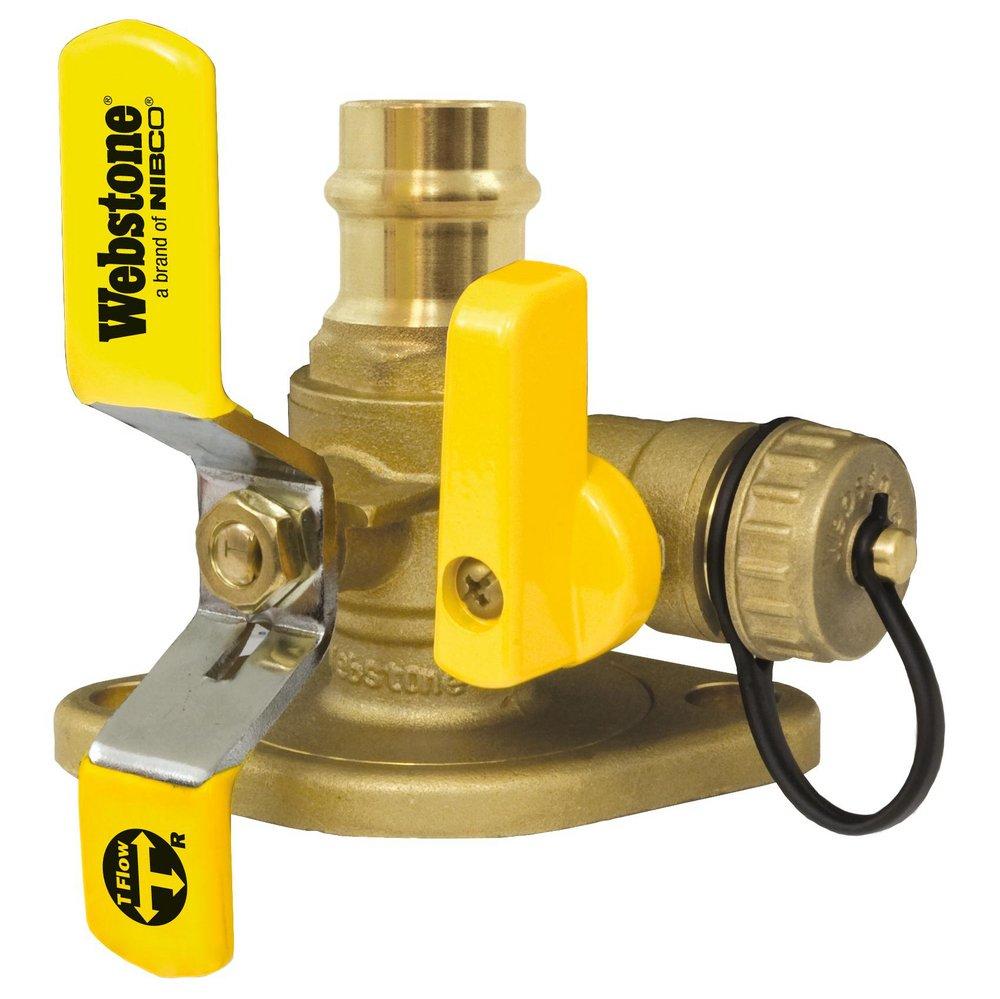

Webstone H-41417WHV 4141 series 2 in. forged brass full port FIPS x flanged 600# ball valve

Product Description

The WEBSTONE H-41417WHV 4141 Series ball valve is a 2-inch forged brass full port valve designed for commercial and residential heating and plumbing applications. This valve isolates pumps for replacement, prevents electrolysis, and eliminates galvanic corrosion. It features a rotating flange for precise positioning and a conical inlet to minimize turbulence, ensuring efficient flow. The multi-function drain allows drainage from either side of the pump, fitting standard circulator pumps.

• Easily Isolates the Pump for Replacement
• Prevents Electrolysis and Eliminates Galvanic Corrosion
• Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation

Product Highlights

This 2-inch forged brass ball valve simplifies pump isolation, prevents corrosion, and offers flexible drainage, replacing multiple components.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-41417WHV

Technical Specifications

• ANSI Certifications: ANSI 61 & 372, ANSI 14
• Clean Bagged: No
• Series: 4141 Series
• End Connection Type 1: FIP
• End Connection Type 2: Flange
• End Connection Type 3: Hose
• End Connections Description: NPT x Flanged x MGHT
• FM Approved: No
• Handle Material: Steel
• IAPMO Listed: No
• ISO Certification: ISO 9001
• Body Material: Brass
• Seal/Gasket Material: PTFE, Vinyl
• NSF Certifications: NSF 61 & 372, NSF 14
• NSF Certified: Yes
• Origin: Global
• Maximum Pressure: 600 psi
• Pressure Class: 600#
• Recommended Application: Commercial, Residential, Heating, Plumbing
• Temperature Range: Up to 350°F
• UL Listed: No
• UPC: 018394007864
• Valve Body Style: Ball
• Valve Disc Material: Brass
• Valve Operator Type: Wing Handle
• Valve Seat Material: PTFE
• Valve Size: 2 inches
• Valve Stem Type: Blowout-proof
• Valve Type: Rough-In Valve
