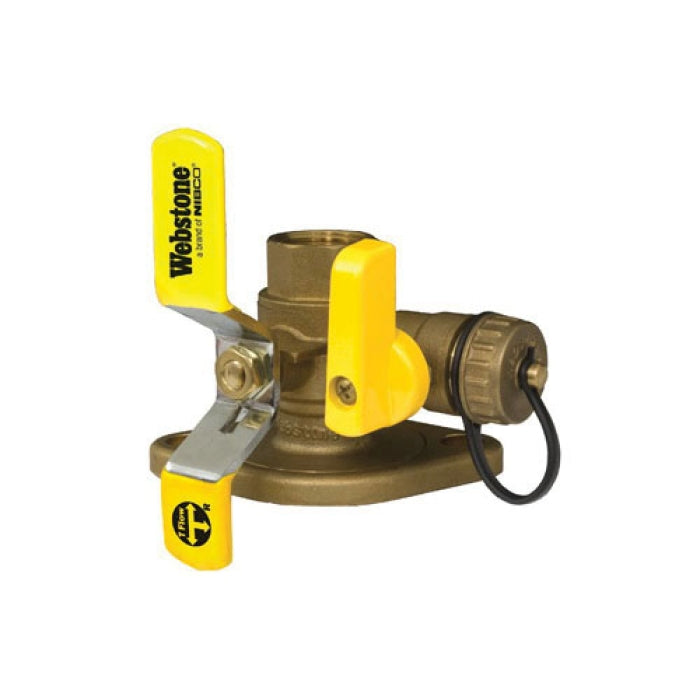

Webstone H-41415 ISOLATOR Ball Valve Standard Uni-Flange 1-1/4 in

Product Description

The Webstone H-41415 Isolator is a uni-flange ball valve designed to isolate a circulator pump. This valve allows minimal air entry during pump replacements or servicing. The valve features a single forged brass body, streamlining installation and saving both time and space. The Isolator is a part of a large flanged ball valve program in the industry, utilizing patented technology.

• Isolates circulator pumps effectively
• Single forged brass body for ease of installation
• Designed for water, oil, and glycol mixtures

Product Highlights

This valve is built for residential and commercial plumbing, and heating systems, making it a suitable choice for various applications.

Product Information

Standard Information

• Brand: Webstone
• Manufacturer: NIBCO Inc.

Technical Specifications

• MPN: H-41415
• Nominal Size: 1-1/4 in
• End Style: FNPT x Rotating Flange
• Media: Glycol Mixture/Oil/Water
• Pressure Rating: 600 psi CWP
• Temperature Rating: 100 deg F
• Dimensions: 3-5/16 in H
• Actuator Type: T-Handle
• Ball Material: HCP Brass
• Body Material: Forged Brass
• Trim Material: Brass/PTFE
• Softgoods Material: PTFE
• Top to Inlet Center: 3-3/16 in
• Port Type: Full
• Series: 4141
