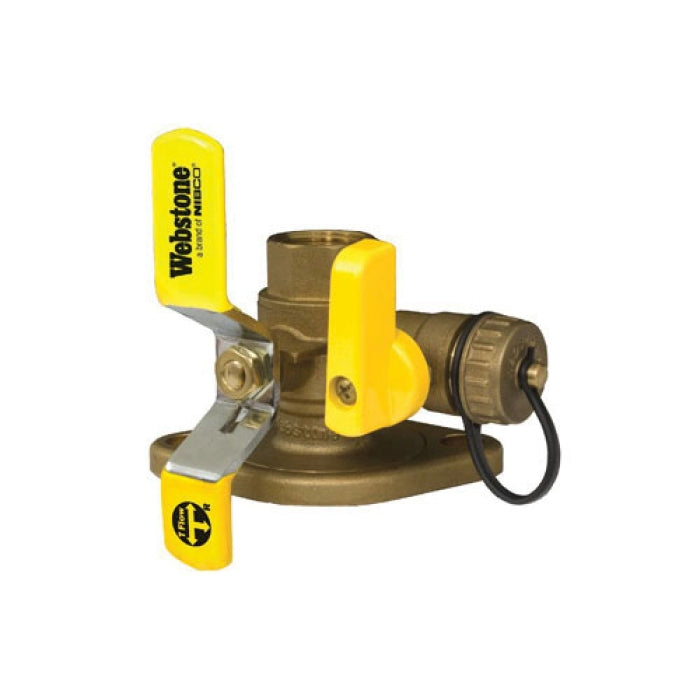

Webstone H-41414 Standard Uni-Flange Ball Valve with Detachable Flange

Product Description

The Webstone H-41414 is a standard uni-flange ball valve designed to isolate circulator pumps effectively. This valve allows for almost no air entry during pump replacement, making servicing easier. The forged brass body combines multiple components into one, optimizing space and labor efficiency. It features patented technology that has become standard in the industry for ball valves.

• Easily isolates the pump for maintenance
• Prevents electrolysis and galvanic corrosion
• Secured flange for better control during installation

Product Highlights

This product is suitable for use with water, oil, and glycol mixtures in both residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: Webstone
• Manufacturer: NIBCO Inc.

Technical Specifications

• MPN: H-41414
• End Style: FNPT x Rotating Flange
• Nominal Size: 1 in
• Orifice Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Temperature Rating: 100 deg F
• Body Material: Forged Brass
• Ball Material: HCP Brass
• Softgoods Material: PTFE
• Trim Material: Brass/PTFE
• Actuator Type: T-Handle
• Series: 4141
• Height: 2-15/16 in
• Top to Inlet Center: 2-5/8 in
