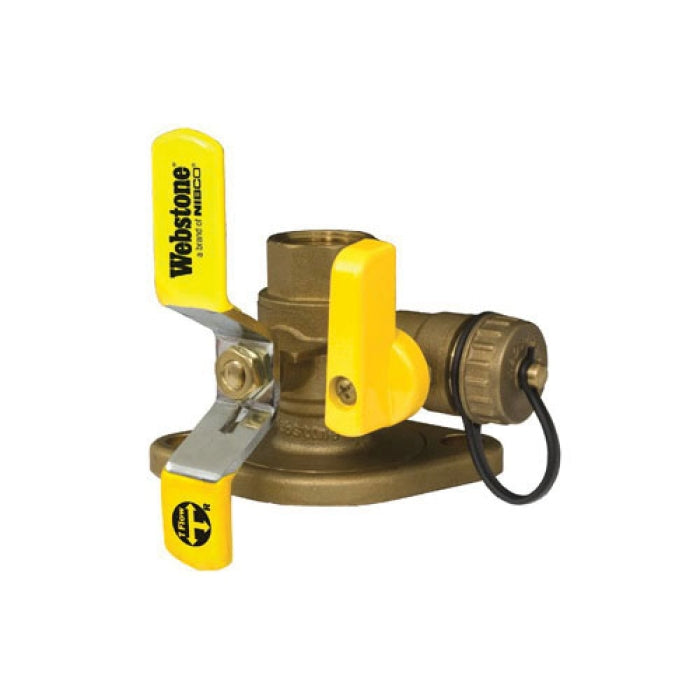

Webstone H-41413 Isolator Ball Valve 3/4 in FNPT x Rotating Flange

Product Description

The Webstone H-41413 is an Isolator Ball Valve designed to isolate a circulator pump. This feature minimizes air entry into the system during pump maintenance or replacement. The valve integrates multiple components into a single forged brass body, optimizing efficiency in both installation and operation.

• Easily isolate the pump for replacement
• Prevents electrolysis and eliminates galvanic corrosion
• Compatible with various media including water, oil, and glycol mixtures

Product Highlights

The H-41413 valve supports full flow with a nominal size of three-quarters of an inch and features a rotating flange design that enhances installation flexibility.

Product Information

Standard Information

• Brand: Webstone
• Manufacturer: NIBCO Inc.

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: HCP Brass
• Body Material: Forged Brass
• Dimensions: 2-3/4 in H
• Domestic/Import: Import
• End Style: FNPT x Rotating Flange
• Media: Glycol Mixture/Oil/Water
• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 4141
• Softgoods Material: PTFE
• Temperature Rating: 100 deg F
• Top to Inlet Center: 2-3/8 in
• Trim Material: Brass/PTFE
• Type: Standard Uni-Flange
