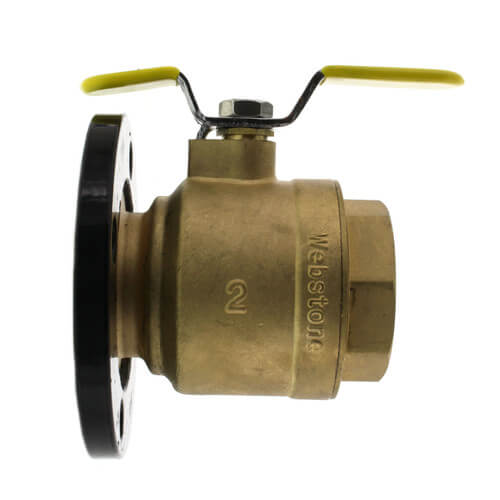

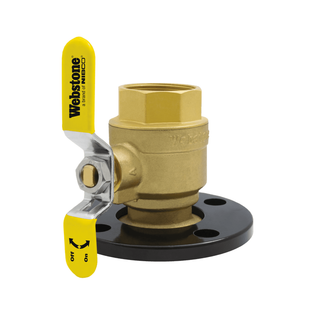

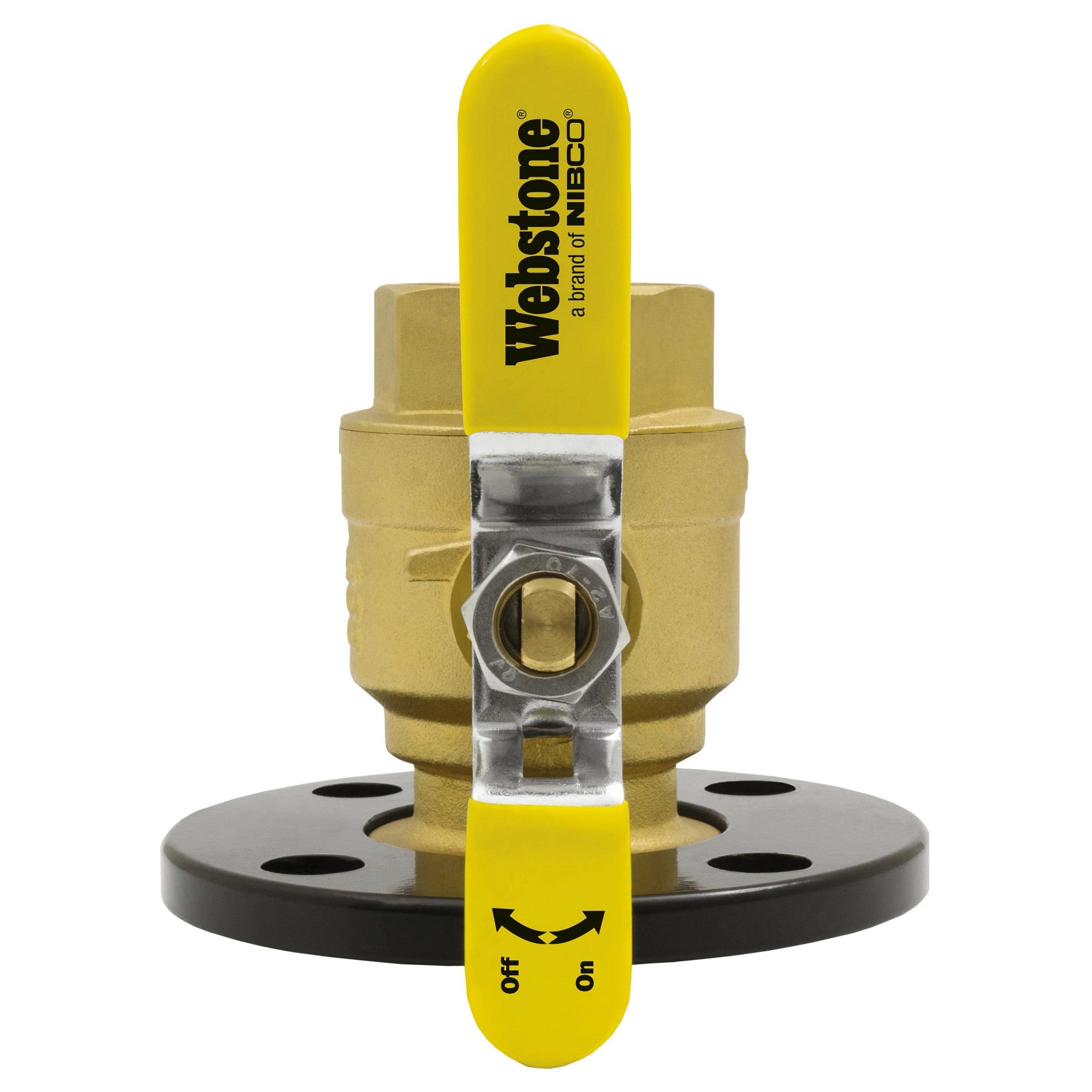

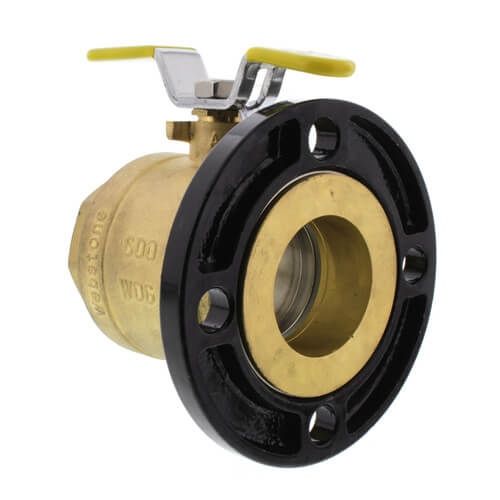

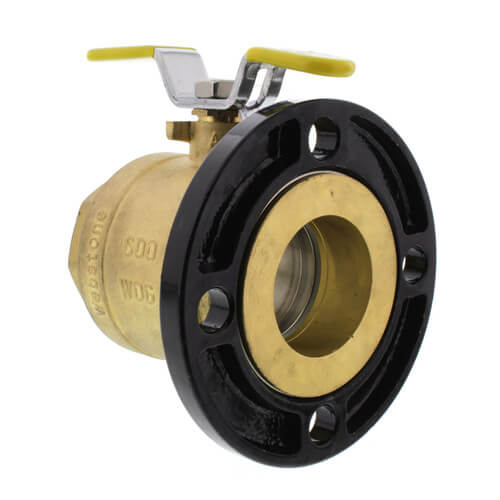

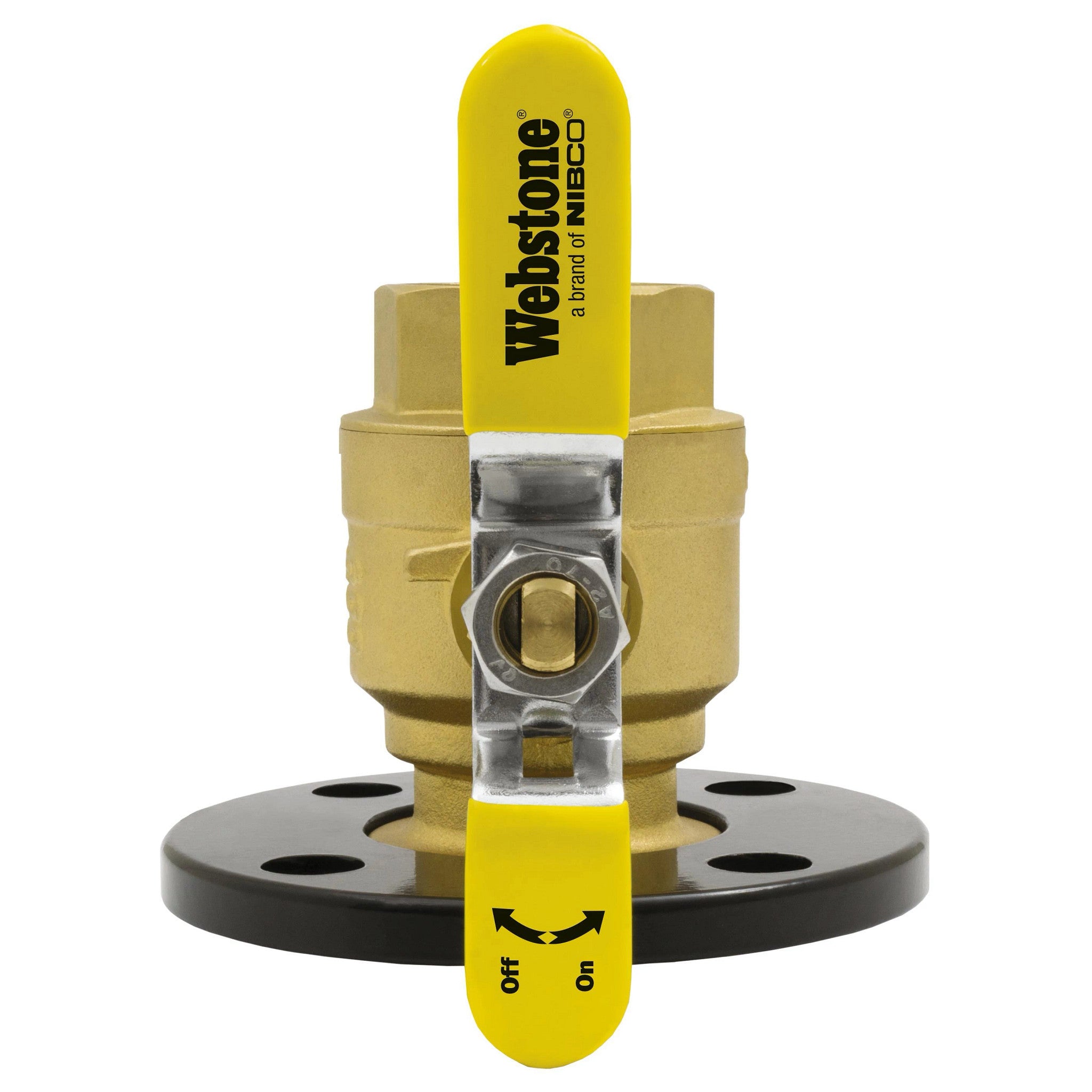

Webstone H-41407HV-RF400 2 inches Threaded Round Isolator with Detachable Rotating Flange

Product Description

The WEBSTONE H-41407HV-RF400 is a 2" Threaded Round Isolator with Detachable Rotating Flange. This full port forged brass Uni-Flange Ball Valve is designed for isolating circulator pumps in residential, commercial, or industrial applications. It features an adjustable packing gland and is suitable for high efficiency variable speed pumps, handling water or glycol mixtures up to 600 psi.

• Features a rotating flange for flexible installation
• Constructed from full port forged brass for durability

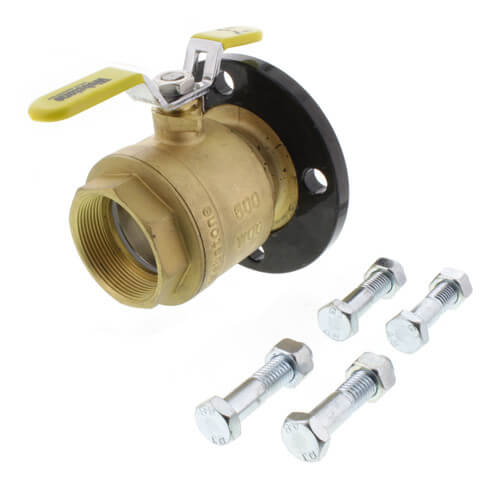

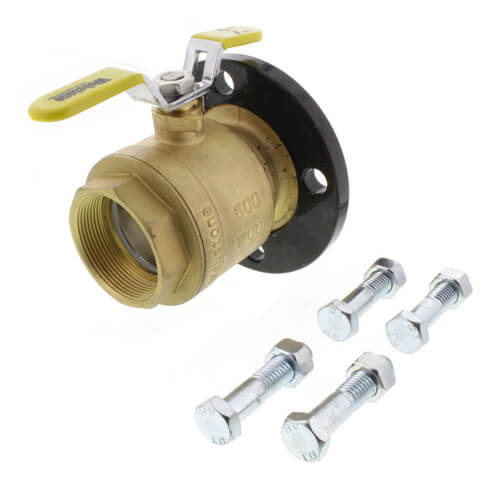

• Includes an adjustable packing gland, nuts, and bolts

Product Highlights

This isolator valve combines multiple components into a single forged brass body, simplifying installation and maintenance of circulator pumps.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-41407HV-RF400
• Country of Origin: Import

Technical Specifications

• Nominal Size: 2 in
• Body Material: Brass
• End Style: IPS x Rotating Flange
• Type: Isolation Flange
• Port Type: Full
• Softgoods Material: PTFE
• Actuator Type: Lever Handle
• Ball Material: HCP Brass
• Media: Water/Glycol Mixture
• Series: 4140HV-RF
• Temperature Rating: 100 deg F
• Trim Material: Brass Stem and PTFE Seat
• Pressure Rating: 600 psi
• Standards: ANSI B1.20.1
