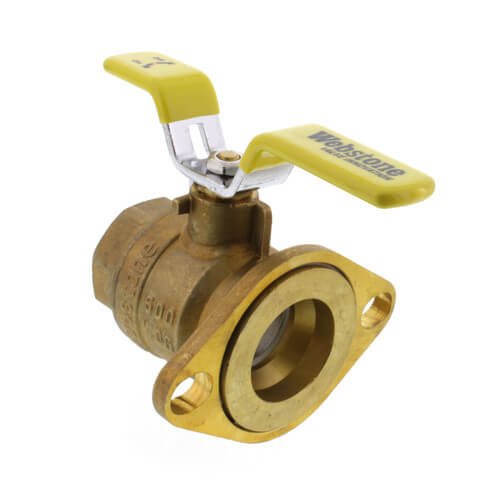

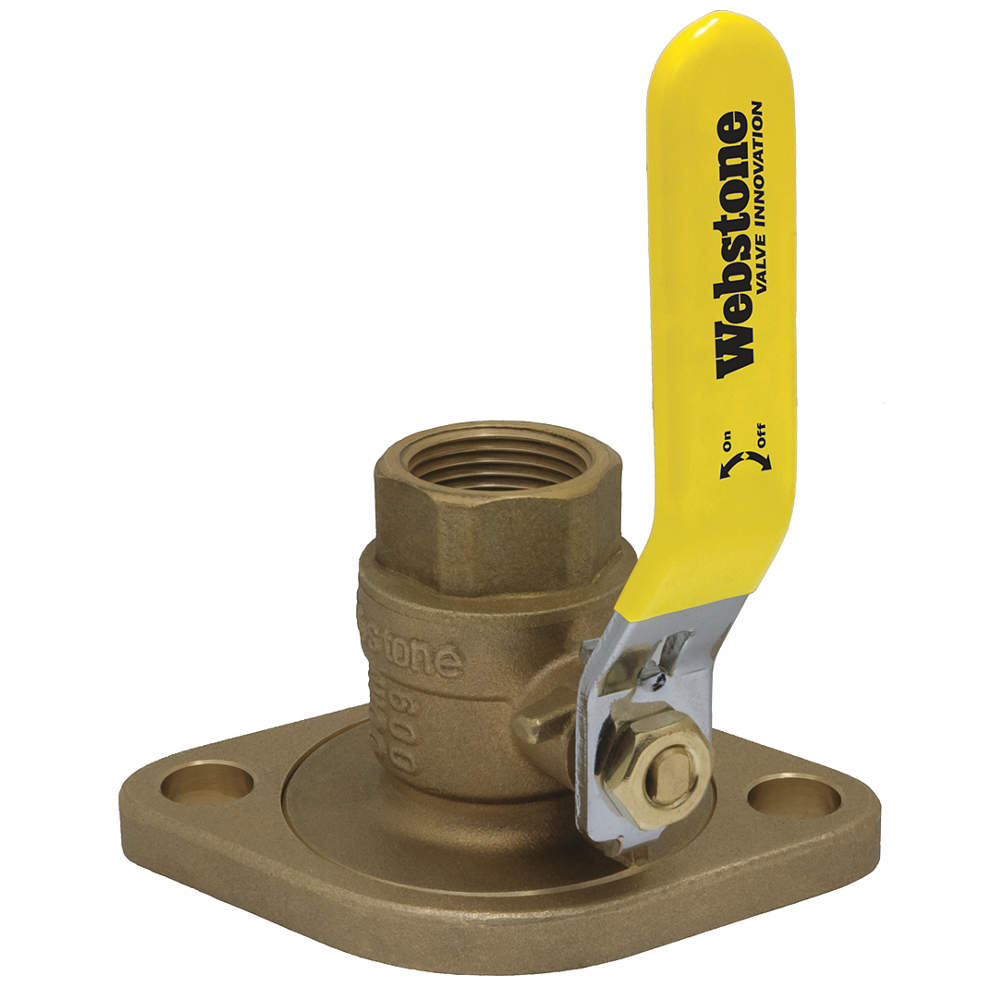

Webstone H-41405HV 1-1/4 inches threaded isolator with rotating flange - high velocity

Product Description

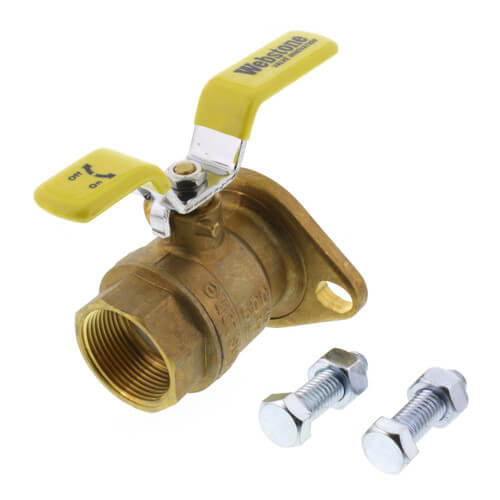

The Webstone H-41405HV is a 1-1/4 inch threaded isolator featuring a rotating flange, designed for high velocity applications. This unit is equipped with a wing style "T" handle and includes mounting nuts and bolts for installation. Constructed with a brass body and PTFE seals, it is suitable for media such as gas, oil, and water, with a maximum operating temperature of 250°F and a maximum pressure of 600 psi. Please note, this item does not comply with the 2014 Lead Free Act and is not recommended for potable water applications.

• Features a rotating flange for flexible installation and maintenance.
• Equipped with a wing style "T" handle for manual control.
• Durable brass body and PTFE seals suitable for gas, oil, and water media.

Product Highlights

High velocity threaded isolator with rotating flange, brass construction, and T-handle for non-potable water applications.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: 41405-HV
• Country of Origin: China

Technical Specifications

• MPN: H-41405HV
• UPC / GTIN: 018394484054
• Manufacturer: Webstone
• Size: 1-1/4"
• Connection Size: 1-1/4"
• Connection Type: Threaded
• Product Type: High Velocity Isolator
• Ball Material: Brass
• Ball Port Style: Full Port
• Body Material: Brass
• Compatible Series: 4140 Series
• Connection Type Side 2: Flange
• Media Compatibility: Gas, Oil, Water
• Handle Type: TEE
• Handle Material: Steel
• Max Operating Temperature: 250°F
• Max Pressure: 600 psi
• Media Temperature Range: -20°F to +100°F
• Pipe Size: 1.25"
• Pipe Type: FNPT
• Seal Material: PTFE
• Seat Material: PTFE
• Stem Material: Brass
• Stem Type: Blowout Resistant
• Valve Body Style: Straight
• Valve Construction: Two-Piece
• Valve Design: Rotating Flange
• Valve Series: 4140
• Valve Type: 2-Way Ball Valve
