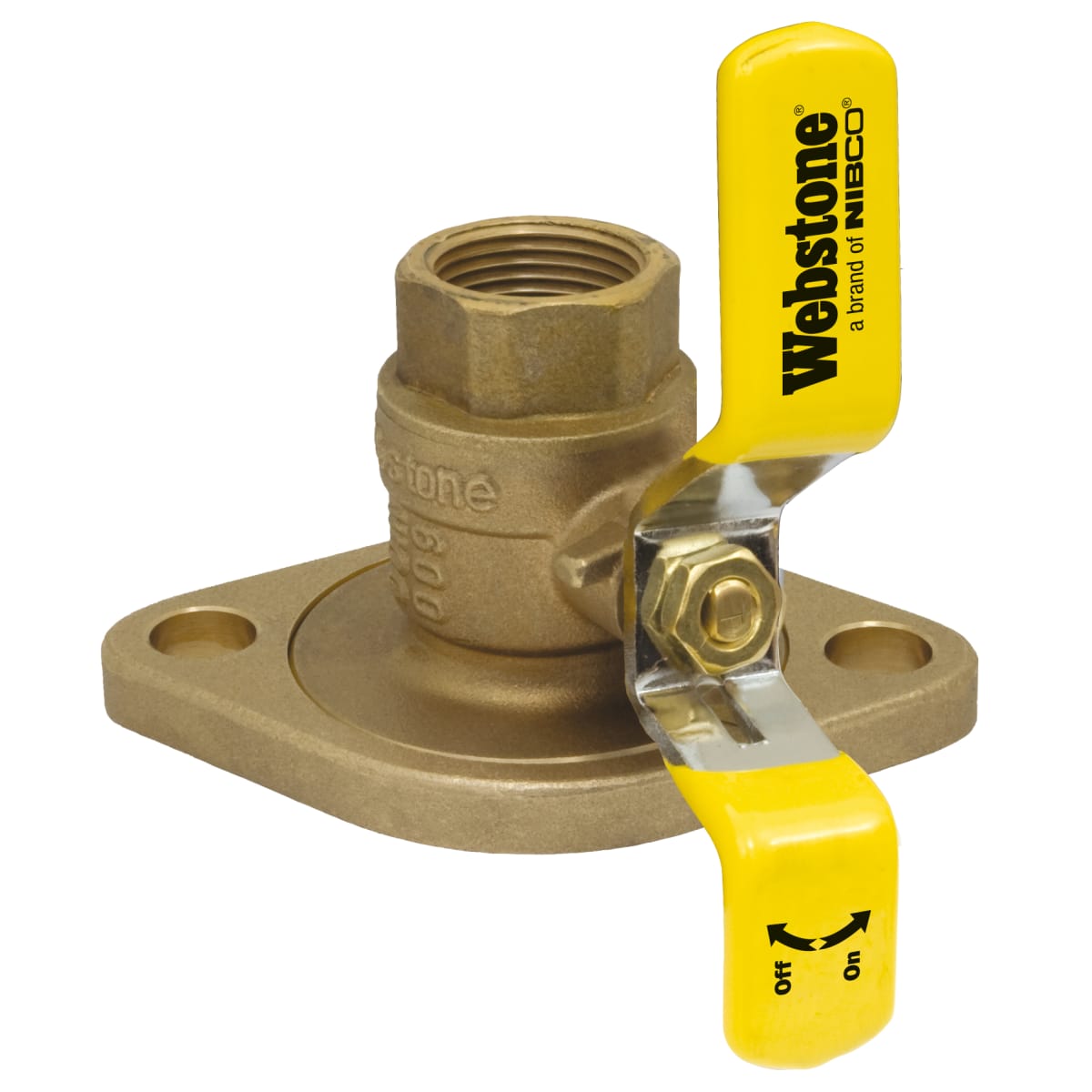

Webstone H-41404W 1 FIP x Rotating Flange Lead-Free Isolator w/ Rotating Flange, Full Port Forged Brass Uni-Flange Ball Valve

Product Description

The Webstone H-41404W is a lead-free isolator uni-flange ball valve designed for isolating circulator pumps with minimal air intake during replacements or service. Its construction features a single forged brass body that integrates multiple components, optimizing installation efficiency. This product is suitable for use with water, oil, or glycol mixes in both residential and commercial plumbing and heating systems.

• Easily isolates the pump for replacement.
• Prevents electrolysis and eliminates galvanic corrosion.
• Designed to fit virtually any standard circulator pump.

Product Highlights

H-41404W simplifies the pump replacement process and enhances efficiency. It minimizes turbulence with a conical inlet and includes features that save time and reduce leak paths.

Product Information

Standard Information

• Brand: Webstone
• Part Number: WEBS-H-41404W

Technical Specifications

• Size: 1 inch
• Type: Isolator Rotating Flange No Drain
• Material: Brass
• Connection Size: 1 inch
• Connection Type: FIP x Rotating Flange
• Pressure Rating: 600 PSI CWP Max
• Temperature Rating Max: 250 F Max
• Application: Lead-Free
