Webstone H-40707W Lead-Free Full Port Forged Brass Ball Valve 2 Inch FIP 600 PSI CWP Max With Adjustable Packing Gland

Product Description

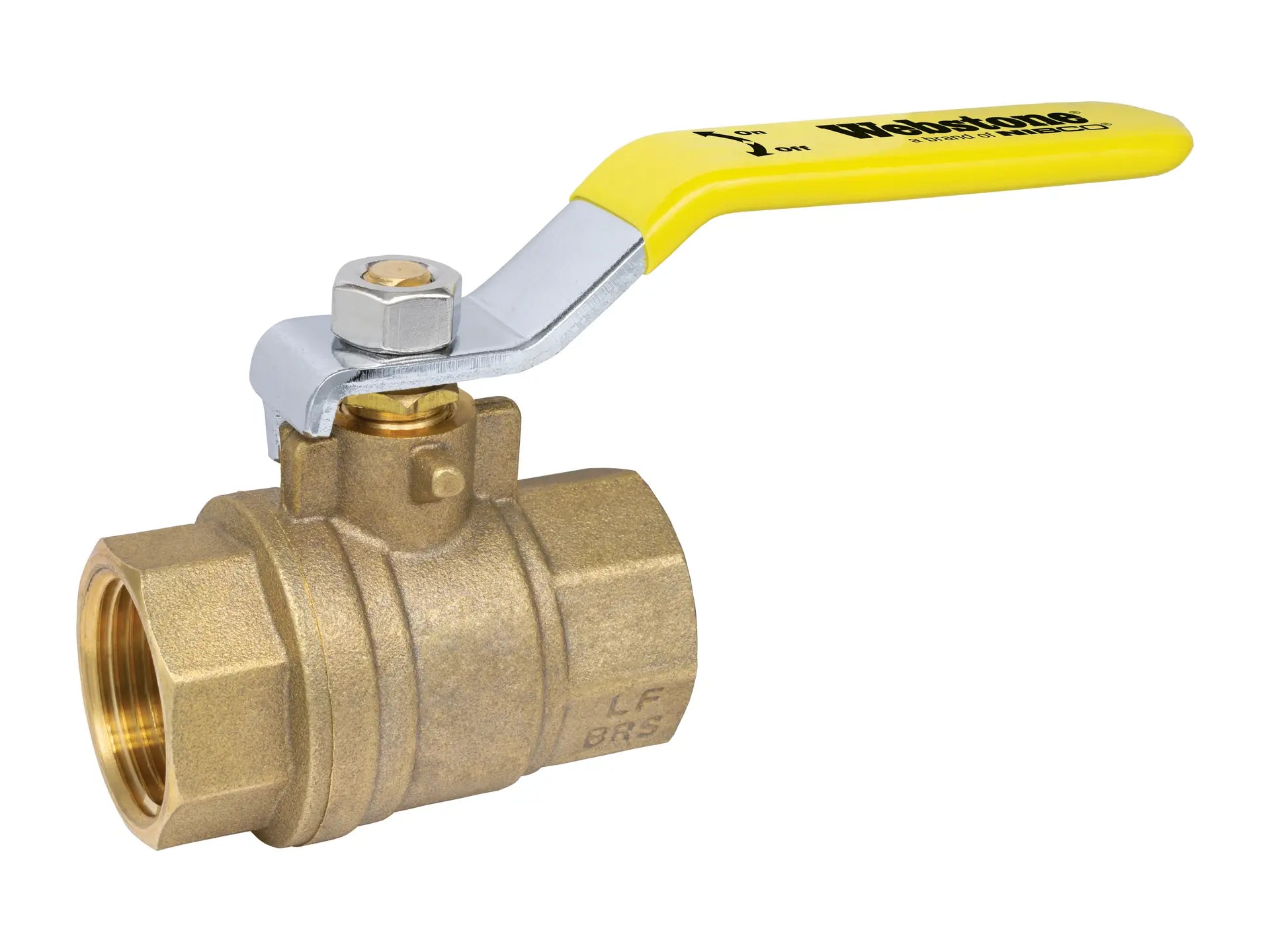

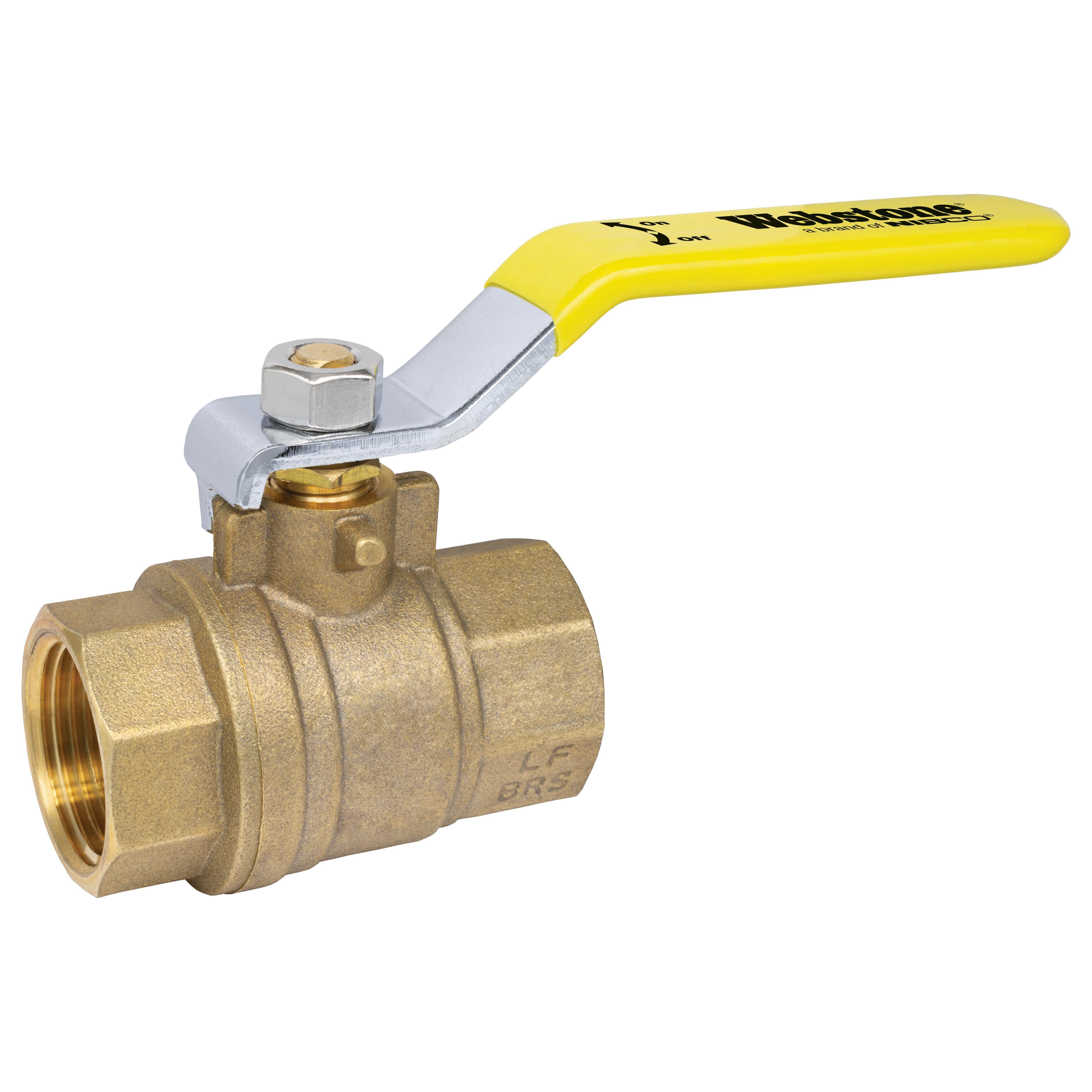

The WEBSTONE H-40707W is a 2 inch FIP Lead-Free Full Port Forged Brass Ball Valve designed for precise flow control. This quarter-turn valve is suitable for residential and commercial plumbing and heating systems, handling water, oil, and glycol mix. It features an adjustable packing gland and is rated for up to 600 PSI CWP Max, ensuring reliable operation in various applications.

• Controls flow with a quarter-turn lever handle for easy operation.
• Features an adjustable packing gland for enhanced sealing and longevity.
• Certified to NSF/ANSI/CAN 61 & 372, ensuring compliance with lead-free standards.

Product Highlights

Lead-free forged brass construction with full port design and 600 PSI CWP Max pressure rating.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-40707W
• Country of Origin: Import

Technical Specifications

• Valve Type: Traditional Brass Ball Valve
• Body Material: LF DZR Brass
• Ball Material: Brass
• Lead-Free Compliance: Lead-Free
• Connection Size: 2 Inch
• Connection Type: FIP
• Port Type: Full
• Pressure Rating: 600 PSI CWP Max
• Max Temperature Rating: 200 F Max
• Series: H-X170
• Origin: Import
• Model: THD-X170W
• UPC: 018394023734
• Certifications: NSF/ANSI/CAN 61 & 372, ANSI Z21.15, NSF/ANSI 61-8, NSF/ANSI 14, CSA 9.1
